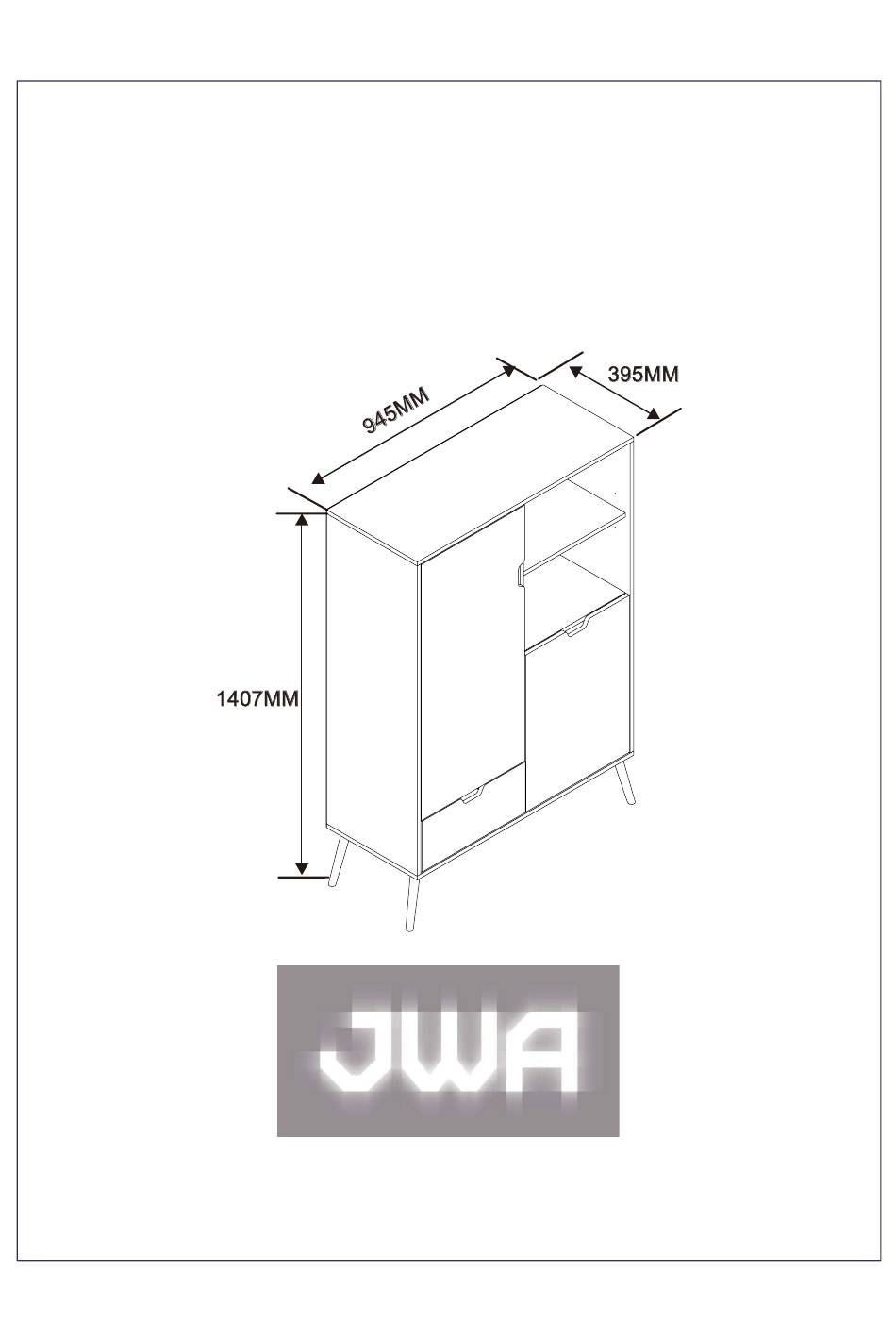

- Page 1 ASSEMBLY INSTRUCTION OLTA MEDIUM CABINET ITEM CODE 68463 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when li ing. Product should be assembled as near as possible to the point of use 3. -
Page 3: Parts List
PARTS LIST M7X39mm M14.8X12mm M8X30mm M3.5X14mm 26pcs 26pcs 28pcs 28pcs M4X14mm M3X16mm M5X40mm 10pcs 4pcs 20pcs 24pcs 4pcs 4pcs 4pcs 4pcs M4x30mm M3.5x14mm 1pcs 1pcs 1pcs 1pcs 1pcs DRAWER FRONT TOP PANEL DRAWER SIDE PANEL SHELF DRAWER SIDE PANEL BOTTOM PANEL SIDE PANEL DRAWER BACK PANEL DRAWER BASE... - Page 4 Fix runner (CL) (CR) to panels (4) (15)with screws(D). STEP 1: STEP 2: Fix cam pin (A)to panels (4)(5)(15).
- Page 5 STEP 3: cam lock parts. STEP 4:...
- Page 6 STEP 5: STEP 6:...
- Page 7 Fix metal plates(F) to panel(3) with screws(G). STEP 7: Fix legs to panel(3). STEP 8:...
- Page 8 STEP 9: Fix cam pin (A)to panel (1). STEP 10: lock parts.
- Page 9 STEP 11: STEP 12: Insert supporter(K) to side panel,and assemble shelf (6).
- Page 10 STEP 13: Fix hinges (D)to panels (7)(8) with screws(D).
- Page 11 STEP 14: Insert drawer base as shown. Fix cam pin (A)to panel (9). STEP 15:...
- Page 12 STEP 16: Assemble drawers to the body. ASSEMBLY COMPLETE...
- Page 13 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
- Page 14 To protect your furniture, we suggest the following: Avoid placing your furniture in direct sunlight. Do not place furniture directly under windows. Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the nish.
