Summary of Contents for Velleman HQ POWER VDPLDF1

  • Page 1 RGB LED DANCEFLOOR DALLE À LED RGB POUR PISTE DE DANSE USER MANUAL NOTICE D’EMPLOI MANUAL DEL USUARIO...

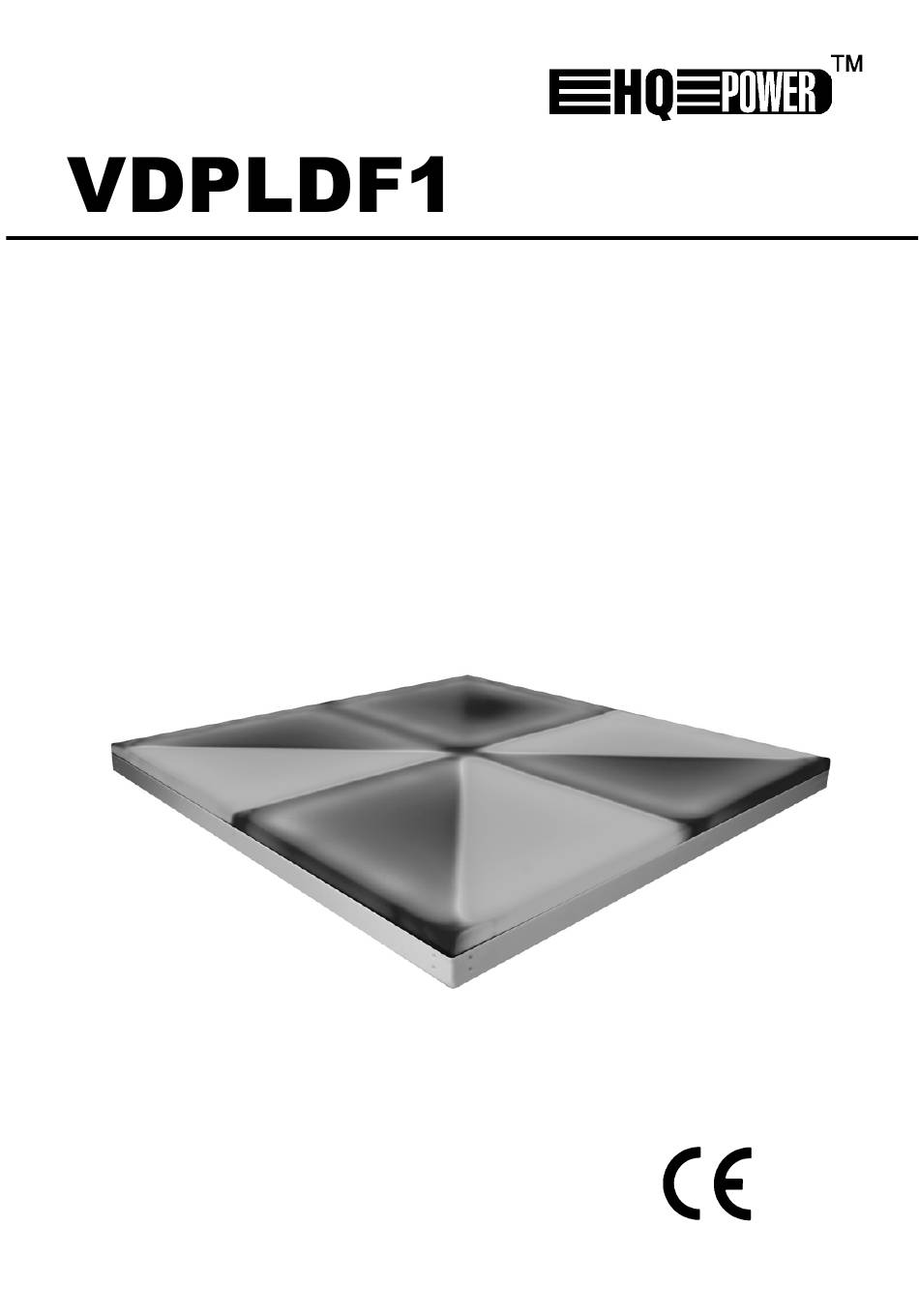

  • Page 2 VDPLDF1 HQPOWER...
  • Page 3: Safety Instructions

    VDPLDF1 – RGB LED DANCEFLOOR 1. Introduction To all residents of the European Union Important environmental information about this product This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste;...
  • Page 4: Installation

    4. Installation Connect the first floor to the power supply (100 ~ 240 VAC, 50 ~ 60 Hz). Connect the power output of the floor to the power input of the next floor. Connect the DMX output from the controller to the DMX input of the first floor. Connect the DMX output of the floor to the DMX input of the next floor.
  • Page 5 Sound-Controlled Mode Sound-controlled chasing lights Sound-controlled 7-colour flash Master/Slave Mode Master Choose an above operation mode Slave DMX Channel Values Channel From Description Light off Light on (channels 2 to 25: dimmer VALID) Strobe (channels 2 to 25: dimmer VALID) Fade in and out (channels 2 to 25: dimmer not VALID) Automatic 7-colour change (channels 2 to 25: dimmer not VALID) Chase 1...
  • Page 6: Cleaning And Maintenance

    13-ch (3 ~ 4) blue dimmer 25-ch (2) blue dimmer 13-ch (5 ~ 6) red dimmer 25-ch (3) red dimmer 13-ch (5 ~ 6) green dimmer 25-ch (3) green dimmer 13-ch (5 ~ 6) blue dimmer 25-ch (3) blue dimmer …...
  • Page 7: Technical Specifications

    Total Weight 48 kg Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulted from (incorrect) use of this device. For more info concerning this product, please visit our website www.hqpower.com.
  • Page 8: Directives Générales

    • Le câble d’alimentation ne peut pas être replissé ou endommagé. Demander à votre revendeur de renouveler le câble d’alimentation si nécessaire. • Ne pas regarder directement la source lumineuse comme ceci peut entraîner des crises d’épilepsie chez certains gens. •...
  • Page 9 Mode manuel Graduateur rouge Graduateur vert Graduateur bleu Mode automatique Clignotement Fondu automatique en ouverture et en fermeture Transition 7 couleurs automatique Poursuite Vitesse de la poursuite Mode à pilotage par le son Poursuite à pilotage par le son Transition 7 couleurs à pilotage par le son Mode maître/esclave Maître Choisir un mode ci-dessus...
  • Page 10 4 canaux (1 ~ 8) graduateur rouge 13 canaux (1 ~ 2) graduateur rouge 25 canaux (1) graduateur rouge 4 canaux (1 ~ 8) graduateur vert 13 canaux (1 ~ 2) graduateur vert 25 canaux (1) graduateur vert 4 canaux (1 ~ 8) graduateur bleu 13 canaux (1 ~ 2) graduateur bleu...
  • Page 11: Nettoyage Et Entretien

    1000 x 1000 x 100 mm Poids 48 kg N’employer cet appareil qu’avec des accessoires d’origine. SA Velleman ne sera aucunement responsable de dommages ou lésions survenus à un usage (incorrect) de cet appareil. Pour plus d’information concernant cet article, visitez notre site web www.hqpower.com.
