1. Introduction & Features
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm
the environment.
Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialised
company for recycling.
This device should be returned to your distributor or to a local recycling service.
Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.

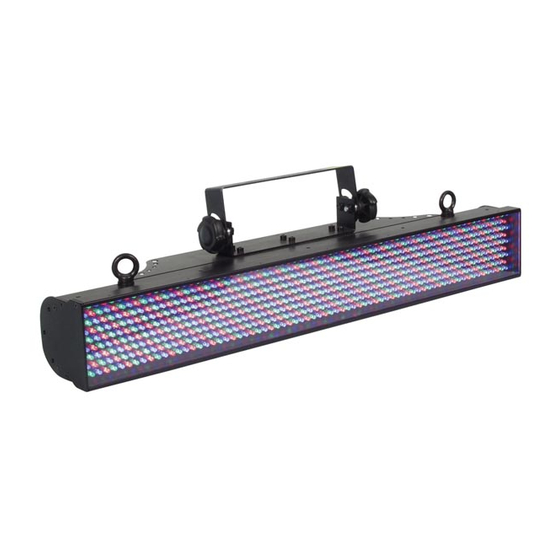

Thank you for buying the VDPLW2400! This LED colour system contains 648 high-efficiency, high-brightness LEDs
which produce a wide variety of lighting effects such as chases, strobe and a four-mode colour mixing (stand-alone,
DMX, sound-active and RGB adjustment).The device was designed for easy installation, multi-purpose hanging, safe,
energy-efficient and long-life operation. If the device was damaged in transit, don't install or use it and contact your
dealer. This system includes 1 x VDPLW2400, 2 x mounting brackets and this manual. Please read the manual
thoroughly before bringing this device into service.
2. Safety Instructions
Be very careful during the installation: touching live wires can cause life-threatening electroshocks.
Keep this device away from rain and moisture.
Unplug the mains lead before opening the housing.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer
will not accept responsibility for any ensuing defects or problems.
• A qualified technician should install and service this device.
• Do not switch the device on immediately after it has been exposed to changes in temperature. Protect the device
against damage by leaving it switched off until it has reached room temperature.
• This device falls under protection class I. It is therefore essential that the device be earthed. Have a qualified
person carry out the electric connection.
• Make sure that the available voltage does not exceed the voltage stated in the specifications of this manual.
• Do not crimp the power cord and protect it against damage. Have an authorised dealer replace it if necessary.
• Disconnect the device from the mains to clean it or when it is not in use. Handle the power cord by the plug only.
• Do not look directly at the light source as sensitive people may go into epileptic seizure if they do.
• Note that damage caused by user modifications to the device is not covered by the warranty.
• Mechanical wear is not covered by the warranty.
• Keep the device away from children and unauthorised users.
3. General Guidelines
• This device is designed for professional use on stage, in discos, theatres, etc. The VDPLW2400 should only be
used indoors with an alternating current of max. 230VAC / 50Hz.
• Lighting effects are not designed for permanent operation: regular operation breaks will prolong their lives.
• Do not shake the device. Avoid brute force when installing or operating the device.
• Select a location where the device is protected against extreme heat (see "Technical Specifications"), dust and
moisture. Respect a minimum distance of 0.5m between the device's light output and any illuminated surface.
• Use an appropriate safety cable to fix the device (e.g. VDLSC8).
VDPLW2400
VDPLW2400 – LED WASH EFFECT
1
VELLEMAN
