Summary of Contents for Kogan MX11 PRO

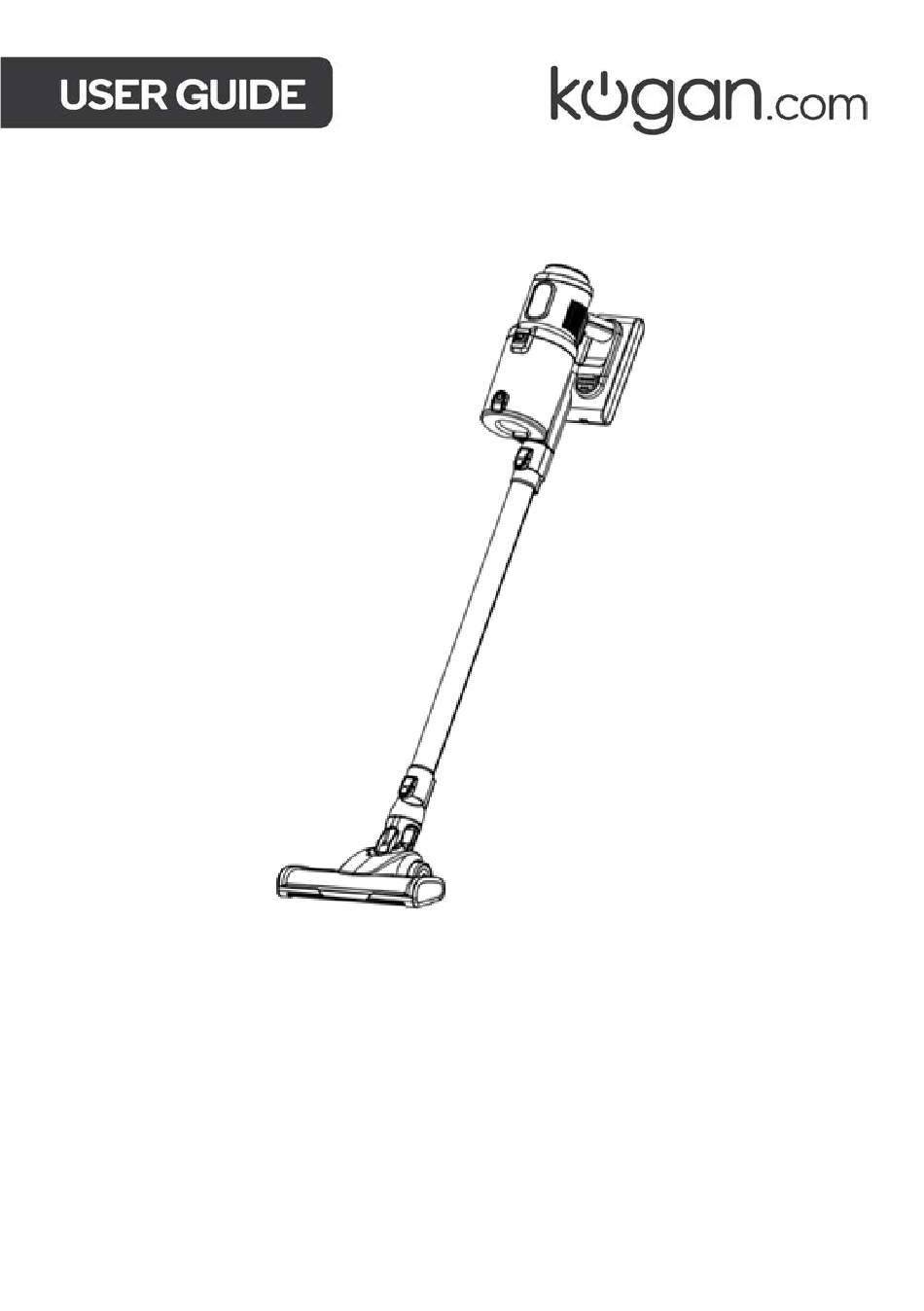

- Page 1 MX11 PRO CORDLESS 29.6V STICK VACUUM CLEANER KAVACSTM11X...
- Page 3 If the power cord is damaged, cease use immediately and contact help.Kogan.com • Do not use this appliance with any accessories other than those recommended by Kogan.com. • In the event of a malfunction, cease use immediately and contact help.Kogan.com for support.
- Page 4 COMPONENTS Main Unit Aluminium Tube Wall Bracket Charger Accessories Electric Brush 2-in-1 Brush Crevice Tool...
- Page 5 OVERVIEW Display Brush Lock Dust Cup Lock Electric Brush Dust Cup Charging Indicator Dust Release Button Battery Pack Lock Tube Lock Battery Pack Aluminium Tube Power Switch...
- Page 6 Display Battery Level Indicator Brush Blockage Indicator Air-Duct Blockage Indicator Dust Sensor Failure Indicator Eco Speed High Speed Automatic Mode...
- Page 7 ASSEMBLY Choose an accessory according to your cleaning requirement. Insert the aluminium tube into the main unit until it clicks into place. Insert the accessory you have chosen into the aluminium tube. Make sure the installation is firm before you use it. To remove the aluminium tube, press and hold the tube lock.
- Page 8 Battery Pack Insert the battery pack into the bottom of the main unit following the guide slot. Ensure the battery pack is securely in place before operation. To remove the battery pack, press the battery pack lock and pull it away from the main unit.
- Page 9 CLEANING & CARE • Never immerse the main unit in water or any other liquid. • Only use a soft, slightly damp cloth to clean the main unit. Do not allow any liquids to enter the main unit. • With exception to the main unit, other parts can be washed with warm soapy water. After cleaning, ensure all parts are thoroughly dried before reassembly and operation.
- Page 10 Cleaning Filter Separate the dust cup from the main unit. Remove the air inlet filter and wash it in warm water. Dry the filter for 24 hours before placing it back into the dust cup. Notes: • Do not dry the filter using any drying equipment. Allow it to air dry naturally. •...
- Page 11 If there are any Abnormal sounds The aluminium tube is blocked. abnormalities, contact help.Kogan.com The brush or dust cup is blocked Clean the blockage. Refer to the and has caused the current “Cleaning & Care” section in this increase.
- Page 12 SPECIFICATIONS Battery Configuration Lithium-ion 2500mAh 29.6V Rated Power 300W Input Power AC 100-240V, 50/60Hz 0.5A Output Power DC 35V, 0.5A Charging Time 5-6 Hours Maximum of 60 minutes (when the battery is fully Operating Time charged) Protection Class Disposal This marking indicates that this appliance should not be disposed with other house-hold wastes.
- Page 13 NOTES...
- Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
