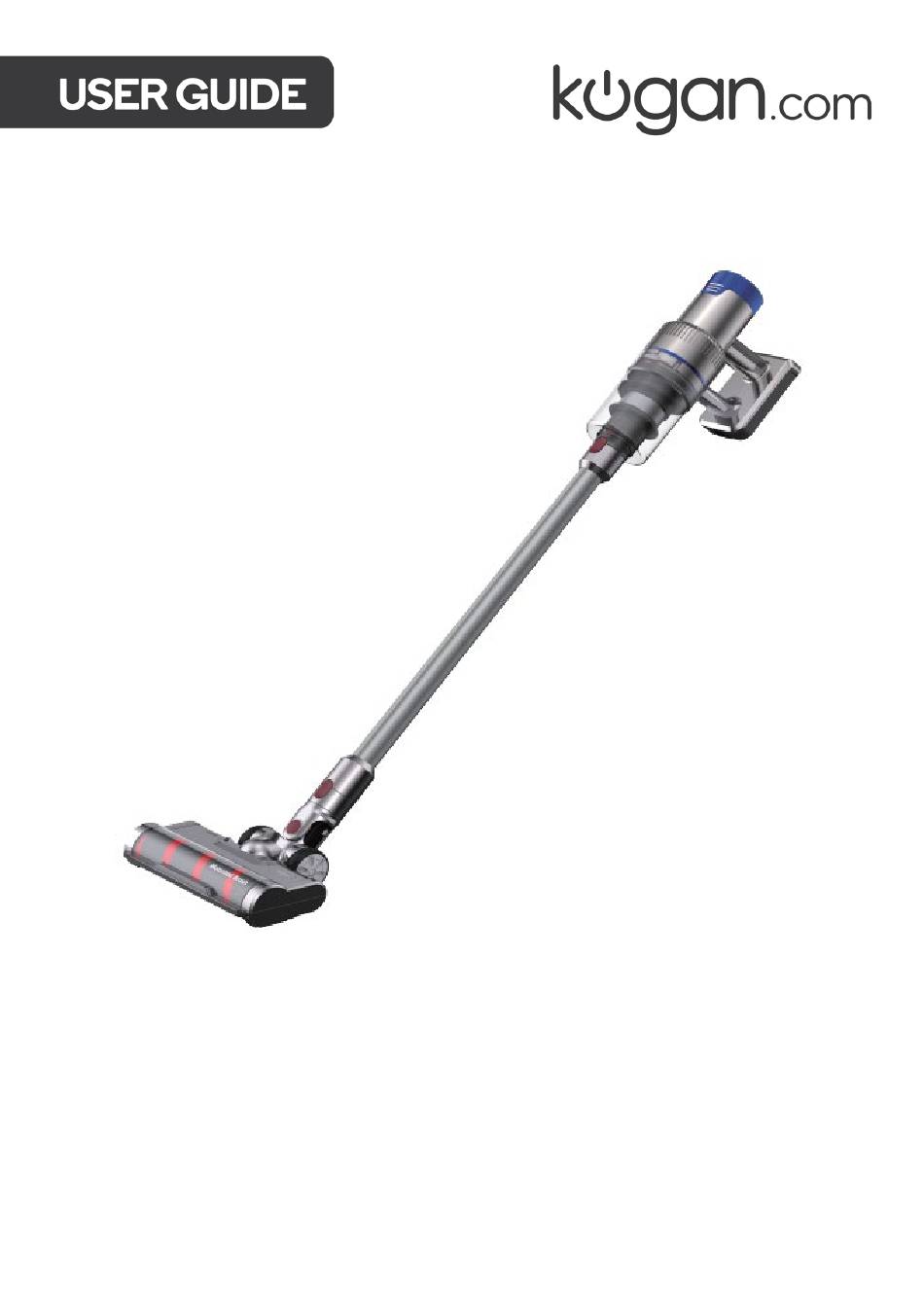

- Page 1 M11 CORDLESS STICK VACUUM CLEANER AND MOP KAVACSTM11A...
-
Page 3: Safety And Warnings
The battery is to be disposed of safely and in an environmentally conscious manner. • This appliance contains internal batteries that are only replaceable by authorised service agents. Contact help.kogan.com for support. • Do not use if the battery or charger are damaged. •... - Page 4 The adapter must be removed from the power outlet before performing any maintenance or cleaning. • Do not perform electrical repairs by yourself, contact help.kogan.com for support. • This appliance is for dry, indoor use only. Do not use while outdoors or in wet places. Do not touch the plug or any part of the product with wet hands.
- Page 5 COMPONENTS Vacuum body Extension pole Motorised high-torque Mini motorised tool Mop tool UV brush Combination tool Crevice tool Wall-mounting Microfibre mop pads (x4) (2-in-1) bracket...
- Page 6 OVERVIEW Power ON/OFF button Charging port Battery pack release button Speed adjust button Battery pack Outlet HEPA filter Dust cup Extension pole release button Extension pole Head/Tool...
- Page 7 ASSEMBLY Attach the Extension Pole to both the Vacuum Body and an attachment / head of your choice. The Motorised Rolling Brush Head is the default attachment for this vacuum. Mop head Motorised rolling Mini motorised 2-in-1 crevice Corner/skirting brush head brush head head board...
-
Page 8: Operation
OPERATION How to Charge To charge the device, insert the charger cable into the charging port on the side of the battery pack, and ensure the adapter is plugged into a wall outlet and switched on. The indicator light will flash when charging is in progress and remain solid when charging is complete. - Page 9 Press and hold the Power ON/OFF button for two seconds to turn the vacuum on While on, pressing the Speed button will adjust the speed between High and Low. When battery power is low, the battery indicator light will flash as a reminder to charge. Speed button Power ON/OFF button...
- Page 10 USING THE MOP HEAD Prepare the mop head attachment by fitting the microfibre mopping pads. Open the lid for the mop head’s water cavity at the top of the attachment, and fill with 200ml of water. Attach the mop head to the extension pole.
-
Page 11: Cleaning And Care
CLEANING & CARE Outlet HEPA filter Access the outlet filter by pressing the button to open the latch. This will allow you to clean or replace the outlet HEPA filter. Dust cup Twist the dust cup while holding onto the body of the vacuum cleaner to open. -
Page 12: Specifications
SPECIFICATIONS Input Voltage 100V-220V, 50/60Hz Output Voltage 30V, 1.5A Charging time 4 hours Low speed: 45 minutes Working time High speed: 15 minutes Battery pack 2200mAh Lithium iron battery, 25.9V 33 x 20.8 x 10.5cm (no attachments) Vacuum dimensions 23 x 21 x 115cm (with pole and main brush) Weight 2.5kg Vacuum... - Page 13 NOTES...
- Page 14 NOTES...
- Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
