LTPS-UM-8054-01
The Craft port includes an EIA-232 DCE connection for a VT100 compatible terminal or PC with VT100
emulation. The Craft port provides a menu-driven interface for viewing the status of and provisioning the H4LXC
and associated H4LXR (see
LPS-H4TU-C-L5
Figure
6).

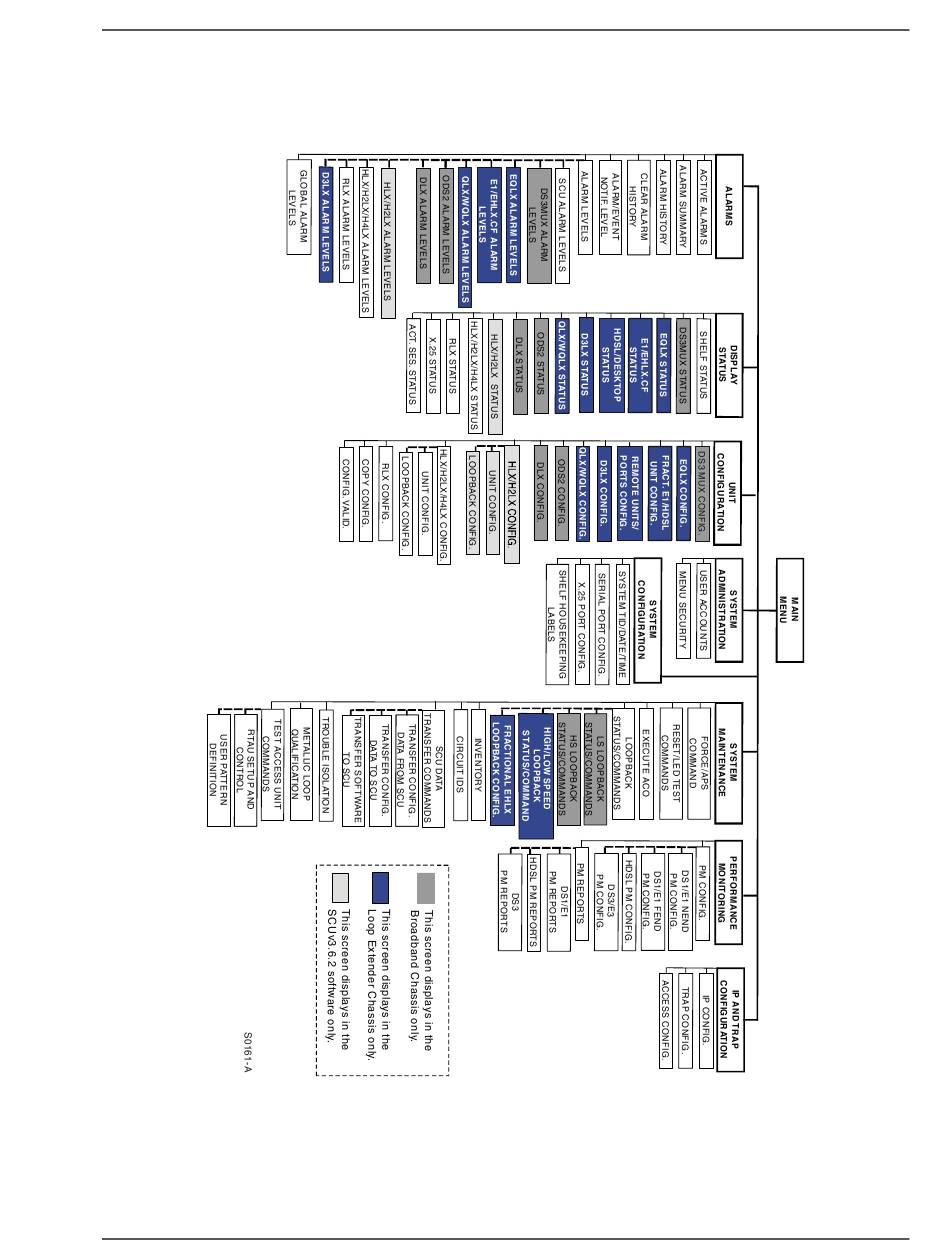

Figure 6. SCU Craft Port Interface Menu Tree
December 3, 2003
SCU and H4LXR Craft Port Interface
11
