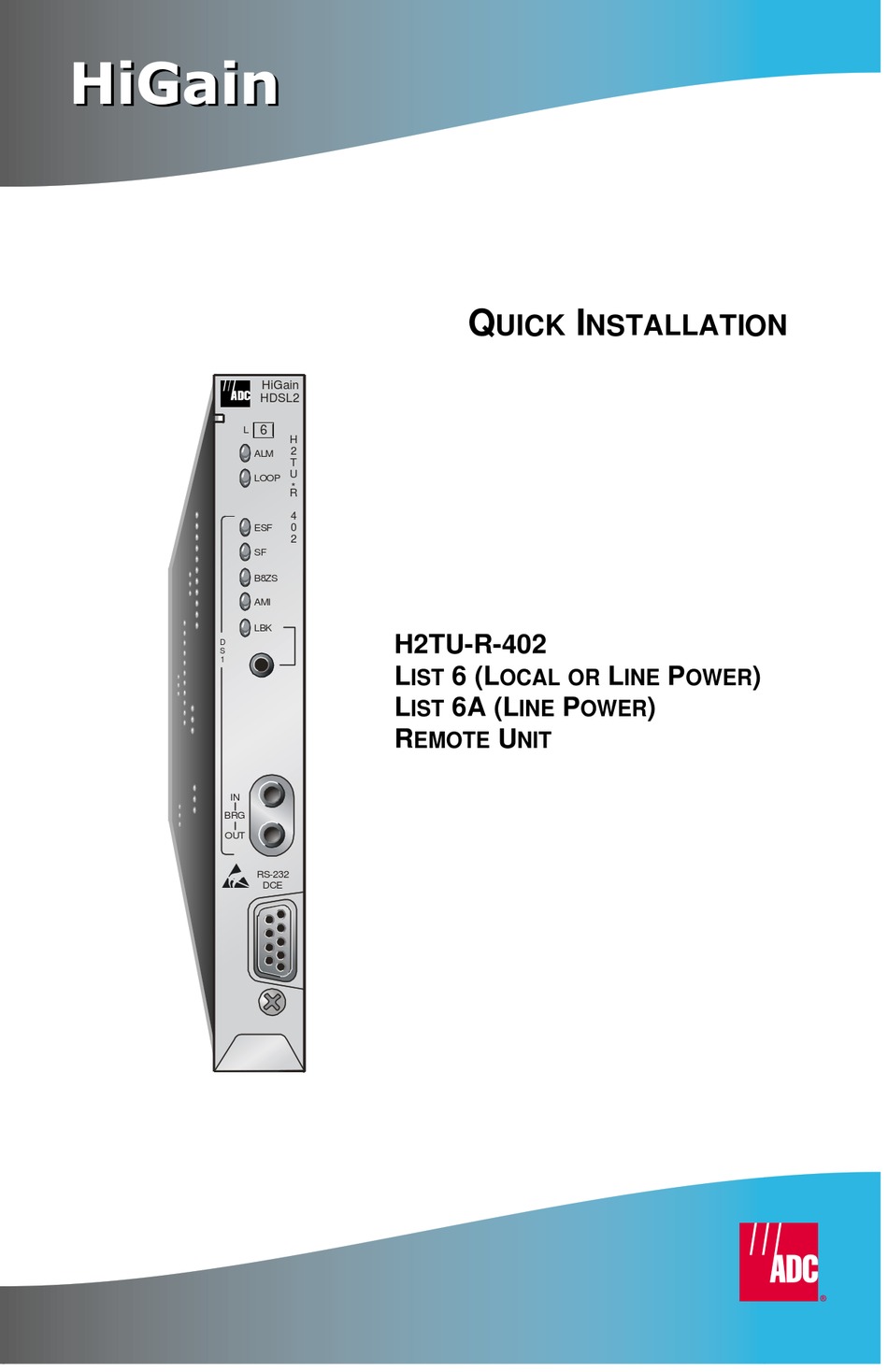

- Page 1 HiGain HiGain UICK NSTALLATION HiGain HDSL2 LOOP B8ZS H2TU-R-402 6 (L OCAL OR OWER 6A (L OWER EMOTE RS-232...
- Page 2 NSTALLATION SCURR H2TU-R-402 List 6 - 2 3 Wear an antistatic wrist strap when installing the H2TU-R. Avoid touching components on the circuit board. If you are installing the List 6 model, check the setting of the SCURR switch. If the H2TU-R is locally powered, and your application requires sealing current, place the SCURR switch in the down position .This allows the H2TU-R to send 10 mA of sealing current to the H2TU-C.
- Page 3 H2TU-R-402 L The HiGain H2TU-R-402 List 6 and List 6A remote units are the customer premises side of a repeaterless T1 transmission system. The system provides 1.544 Mbps transmission of a T1 payload on one unconditioned pair over the full Carrier Service Area (CSA) range.
- Page 5 H2TU-C. You can also view system settings and inventory, initiate loopbacks, monitor performance, and configure the circuit. Monitor Performance Event Log Config Inventory Report Rlogon Help +------------------------------------------+ ADC DSL Systems, Inc. HiGain HDSL2 Voice: 800.638.0031 714.832.9924 +------------------------------------------+ ID: xxxx--xxxx--xxxx—-xxxx 02/01/2001 12:30:01 H2TU-R System: OK___...
- Page 6 Identifies the 100 most recent system events and reports the date and time of occurrence. onfig Standard configuration options, ADC options, date and time setting, and a reset option. nventory Product information and circuit and device identifications. Remote log on can be performed from the H2TU-R or H2TU-C. To log off the remote...
- Page 7 © 2001 ADC DSL Systems, Inc. All rights reserved. Information contained in this document is company private to ADC DSL Systems, Inc., and shall not be modified, used, copied, reproduced or disclosed in whole or in part without the written consent of ADC.
