Quooker Scale Control Plus Installation Manual page 6

C
Mounting the Scale Control Plus
•
•
1
2×
3
Scale Control Plus
cartridge
Reduces limescale
Step 1 When alarm sounds, 0% blinks.
Step 2 Unscrew the old cartridge (counter
When mounting the bracket, make sure to leave enough space for the cartridge to be replaced.
For a type A and type B tank.
2
2×
4
2×

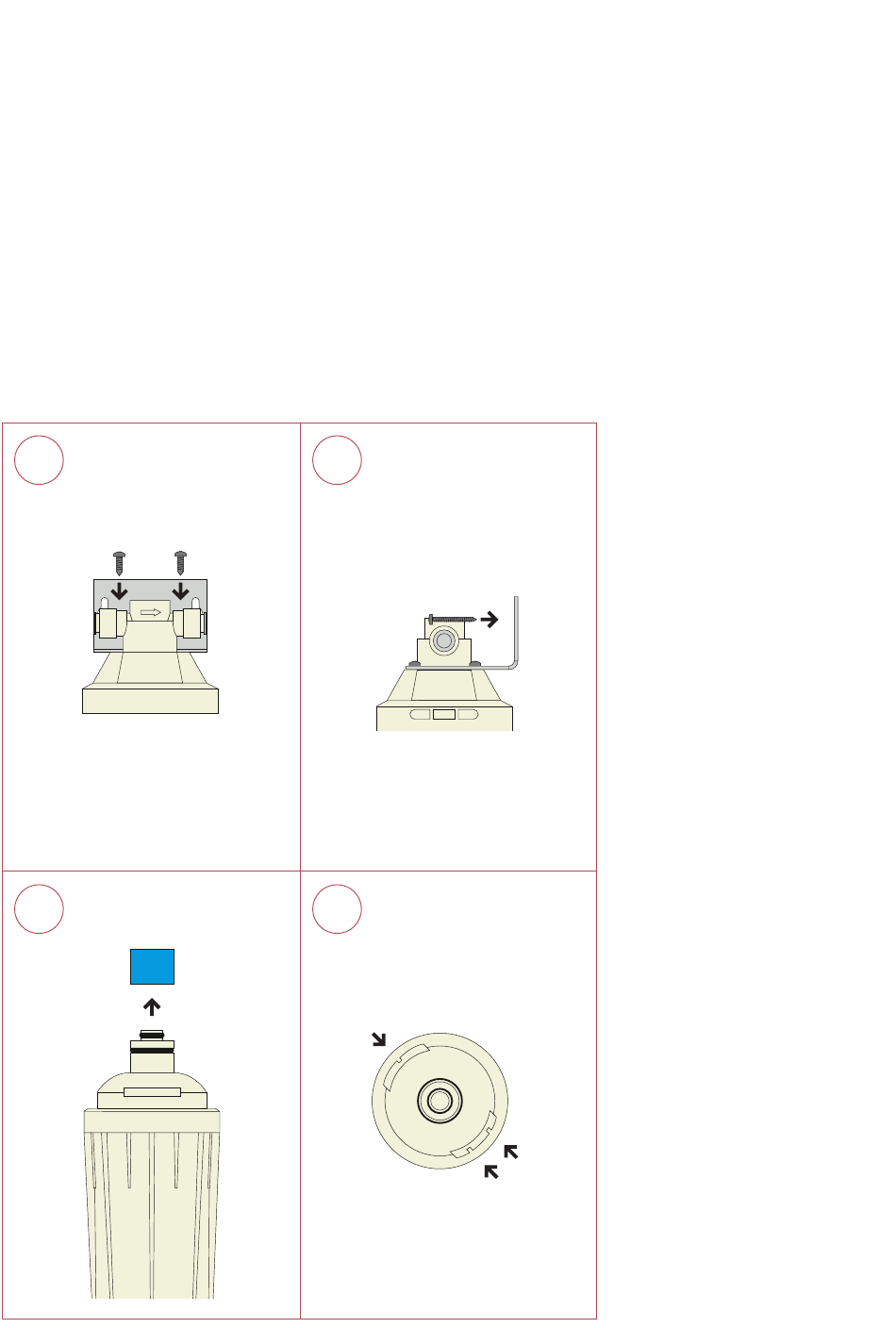

1. Mounting the bracket
Screw the bracket into the head of the
cartridge using the four short screws
provided.
2. Mounting the bracket
Screw the bracket onto the kitchen
cabinet wall using the two long screws
provided. Mount the bracket at least
50 cm high from the base of the cabinet.
3. Removing the cap
Remove the blue cap from the top of the
cartridge.
4. Aligning the cartridge
In order to insert the cartridge into
the head of the Scale Control Plus,
the protruding parts on the side of the
cartridge need to be aligned with the
notches in the head. When doing so, keep
in mind that there are two grooves on one
side of the cartridge and only one on the
other side.
