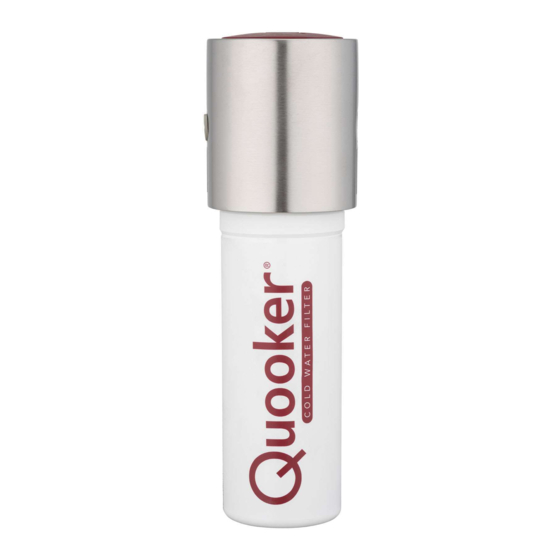

- Page 1 Installation guide Cold Water Filter Before installing read this guide first...
-
Page 2: Contents Of The Pack
Contents of the pack 1. Bracket, Cold Water Filter cartridge and two tubes 2. T-piece, locking clip and two fibre washers 3. Elbow 3/8 , four cable clips and three screws 4. T-valve 3/8 and two filter screens... - Page 3 Please note: Bear in mind that the Cold Water Filter cartridge must remain accessible for periodic replacement purposes. For an overview of the Cold Water Filter installation with the Flex or Nordic sin- gle tap, please refer to the following pages.
- Page 4 Overview of installation with Flex tap It is recommended that you install the Cold Water Filter in the following order: A. Fitting Cold Water Filter bracket B. Connecting water C. Connecting Cold Water Filter to tank D. Fitting Cold Water Filter cartridge Please note: Bear in mind that the Cold Water Filter cartridge must remain accessible for periodic replacement purposes.
- Page 5 Overview of installation with Nordic single tap It is recommended that you install the Cold Water Filter in the following order: A. Fitting Cold Water Filter bracket B. Connecting water C. Connecting Cold Water Filter to tank D. Fitting Cold Water Filter cartridge Please note: Bear in mind that the Cold Water Filter cartridge must remain accessible for periodic replacement purposes.
-
Page 6: Fitting The Bracket
2 Fitting the bracket Secure one screw at selected location and mount the Cold Water Filter bracket. 3 Securing the Cold Water Filter Fixate the bracket by using the two... -
Page 7: Connecting Water
When fitting the Cold Water Filter to an existing Quooker, switch off • the Quooker by pressing the ‘Q’ button at the top of the tank and then unplug it from the socket. Please note: The plastic tubes will be connected to push fittings. -
Page 8: Electrical Connection
• Important: Let the tap hose cool down before disconnecting. • The tank cover has two jack-plug ports, one for your tap LED cable and a second covered port which will be used for the Cold Water Filter. 1 Disconnecting... - Page 9 Using Cold Water Filter • The lifespan of a new Cold Water Filter cartridge is twelve months. • After twelve months the Cold Water Filter will automatically give an audible signal after use of filtered water. • The flow rate of the filtered water will be significantly lower than the unfiltered water.
- Page 10 Q U O O K E R U K L T D Beaumont Buildings Great Ducie Street Manchester M3 1PQ (UK) Telephone +44 (0)207 9233355 E-mail info@quooker.co.uk Internet quooker.co.uk...
