- Page 1 Installation guide Scale Control Plus Read this guide before installation...
- Page 2 When the Scale Control is to be replaced by a Scale Control Plus Please note: in case of a Type B Tank, the Scale Control Plus should be installed before the inlet combination valve. It is therefore important to follow the instructions as shown in this installation manual.
-
Page 3: Package Contents
For the installation of a type B tank: two long screws, mounting bracket inlet combination, two inserts, allen key 3. Two push-fits, four short screws, two long screws 4. Total Hardness Test Kit 5. Scale Control Plus Meter, metal washer, screw and sticker Type A tank Type B tank Scale Control Plus... - Page 4 • Ensure the Scale Control Plus is working optimally by comparing the water hardness of the cold mains water to the hardness of the Quooker tank water. The second value should be lower. 1. Filling test tube Take the test tube out of its box.
- Page 5 For Quooker systems installed after October 2017, the life of the cartridge is determined by the Scale Control Plus Meter. This sounds an alarm signal when the cartridge needs to be replaced. Part E describes how to install this meter.
- Page 6 4. Aligning the cartridge In order to insert the cartridge into the head of the Scale Control Plus, the protruding parts on the side of the cartridge need to be aligned with the notches in the head. When doing so, keep...
-
Page 7: Inserting The Cartridge
5. Inserting the cartridge Firmly push the cartridge into the head of the Scale Control Plus until the groove between the cartridge and the head is no longer visible. 6. Securing the cartridge Now rotate the cartridge a quarter turn to the right to ensure that it is securely in place. - Page 8 Installation with a type A tank • Follow the steps below to install the Scale Control Plus with a type A tank. • The ‘Q’ on the hood of the tank is the on / off switch. 1. Turning off the tank...
- Page 9 5 minutes, until the water is once again clear. Turn on the tank using the Q button. Once the water has heated up again, the Quooker system is ready to use (continue to section...
- Page 10 Installation with a type B tank • Follow the steps below to install the Scale Control Plus with a type B tank. • The ‘Q’ on the top of the tank is the on / off switch. 1. Turning off the tank...
- Page 11 A to the push-fit. 7. Connecting the Scale Control Plus Now connect plastic tube (A) to the head of the Scale Control Plus. Make sure that this is done in the right direction (see the arrow on the head). Now connect the second plastic tube (B) to the other side of the head.
- Page 12 3. Mounting the metal washer Screw the washer provided into the kitchen cabinet using the screw provided. 4. Securing the Scale Control Plus Meter Mount the Meter on the metal washer using the magnet on the back of the Meter. Affix the sticker provided next to...
- Page 13 (see table below). Press the wheel when the correct value is highlighted. Press again to confirm. 8. Using the Scale Control Plus Meter After setting the meter, ‘100%’ will appear on the screen. This percentage represents the lifespan of the cartridge and will slowly count down to ‘0%’.
-
Page 14: Replacing The Cartridge

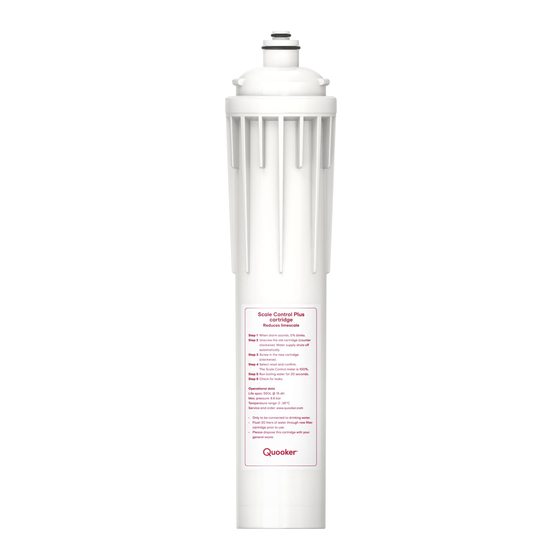

(clockwise). Step 4 The Scale Control meter is 100%. Step 5 Run boiling water for 20 seconds. has heated up again, the Quooker system Step 6 Check for leaks. Operational data Life span: 550L @ 15 dH Max pressure: 8.6 bar is ready to use. - Page 16 Quooker UK Ltd. Beaumont Buildings Great Ducie Street Manchester M3 1PQ +44 (0)207 923 3355 enquiries@quooker.co.uk www.quooker.co.uk...
