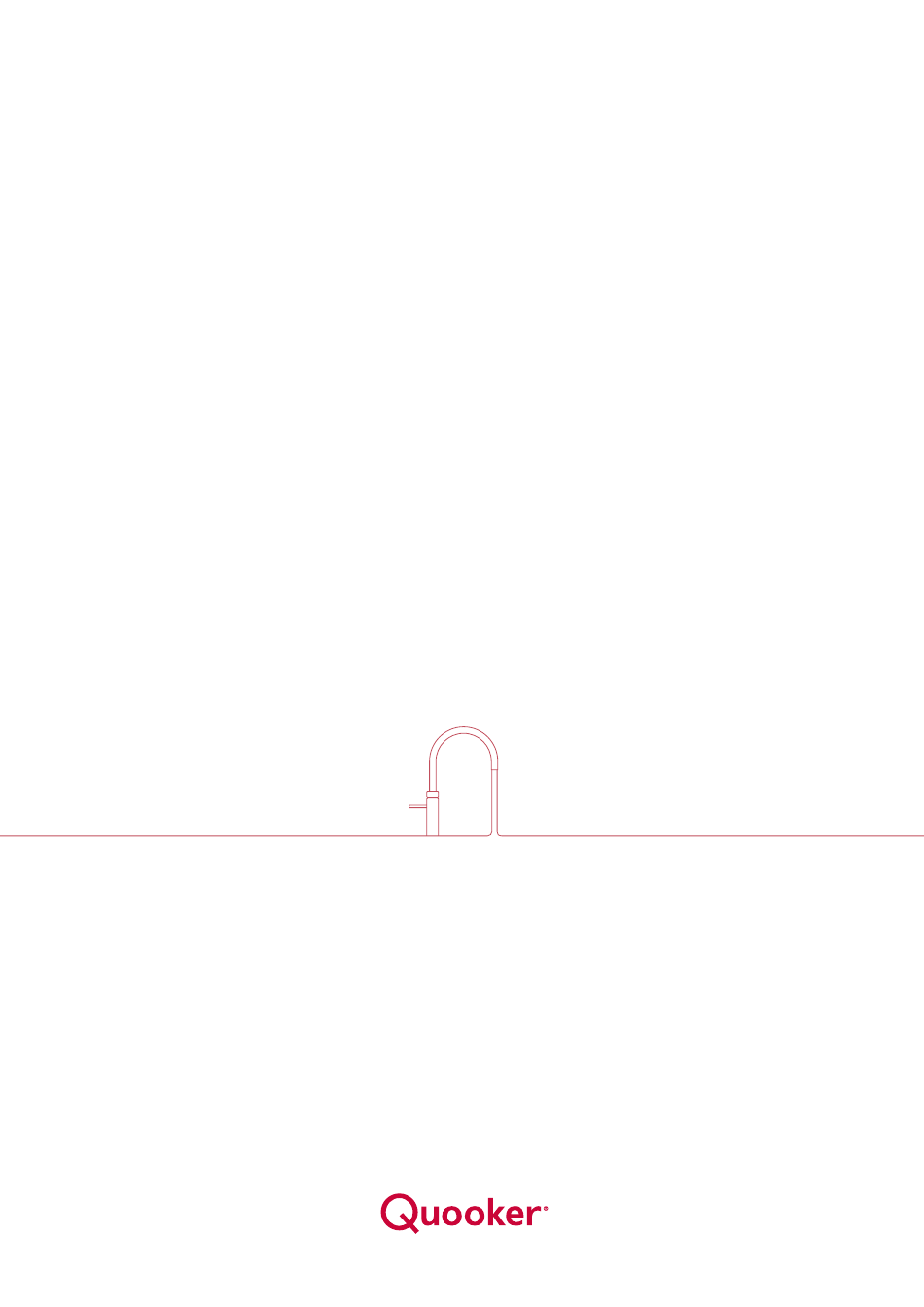

- Page 1 Installation guide CUBE Read this guide before installation...
- Page 2 In addition, the filters inside the CUBE must be replaced annually. After 12 months, the CUBE will start beeping and the light on the CUBE tank will flash to indicate that the filters need to be replaced.
- Page 3 The warranty period for the CUBE and Quooker system is two years and covers supply of parts only. It does not cover labour costs or any mechanical failure due to limescale. Only genuine Quooker parts should be used with a Quooker and use of any third party parts of any sort will void the warranty.
-
Page 4: Declaration Of Conformity
Quooker b.v., Staalstraat 1, NL-2984 AJ Ridderkerk (Netherlands) hereby declares at its own risk that the Quooker CUBE is manufactured in accordance with the rules in the following directives: – 2011/65/EU Restriction of the use of certain hazardous substances (RoHS) –... -
Page 5: Technical Specifications
Technical specifications Tank CUBE Voltage 230 V Wattage* 100 W Flow rate for filtered water* 1.4 litres / minute Flow rate for sparkling water* 2 litres / minute, 4 litres / hour Standby consumption* 12 W / hour Chilling time* 40 minutes (60 minutes for first use) 43 cm (including CO ₂... -
Page 6: Pack Contents
Pack contents 1. CUBE tank, power cable and two white connection hoses 2. CO ₂ pressure reducing valve, clear CO ₂ hose and a CO ₂ cylinder 3. T-joint with two fibre washers 4. CUBE stop valve with two hose screens 5. - Page 7 The illustration below shows an example of a CUBE installation with a Quooker Flex tap and a PRO3 tank, and is for illustration purposes only. The CUBE installation is the same for all compatible Quooker tanks and taps. All installation guides are available online at...
-
Page 8: Installation Requirements
Make sure that the CUBE tank has enough room within the kitchen cabinet. Please bear in mind that the CUBE must remain accessible for future service and maintenance. We recommend leaving at least 10 cm of free space behind the CUBE tank for ventilation. The CUBE must be placed within 90 cm of the Quooker tank. -
Page 9: Water Connection
Place the first new hose screen into the Service www.quooker.com pressure reducing valve then connect the CUBE stop valve onto it and tighten. Place the second hose screen into the CUBE stop valve, then connect the tap’s cold water hose to the stop valve and tighten it. - Page 10 There are two jack plug ports at the back of the Quooker tank cover which will be used to connect the Quooker tap and the CUBE. One of the ports is covered by a plastic cap that must first be removed.
- Page 11 Connect the CO ₂ cylinder Please note: The CO ₂ cylinder is pressurised. • Please note: The CO ₂ cylinder must be suspended on the side of the CUBE tank. • The CO ₂ cylinder must never lie horizontal. 1 Connect the CO ₂ pressure reducing valve Push the clear CO₂...
- Page 12 Depending on the temperature of the cold mains water supply, it takes about 40 minutes for the water in the CUBE’s tank to cool down completely. The first time after installation of the CUBE, it will take about 60 minutes.
- Page 13 Initially only air and CO ₂ will be released from the tap. Keep the tap open for ca 10 seconds. The pump will be activated and CUBE will fill with sparkling water. This can take up to 3 minutes. The pump may be very audible during this process.
- Page 14 Remove the CUBE • The CUBE must always be drained of water before servicing. 1 Switch off the CUBE Make sure that the ‘COLD’ switch at the back of the CUBE is set to ‘0’. Do not remove the power cable.
- Page 15 5 Remove the T-joint Switch off the Quooker tank and remove the plug from the power socket. Remove the T-joint from the top of the Quooker tank. 6 Reconnect Install the tap’s boiling water hose onto the top of the tank using a new fibre washer.
- Page 16 Quooker UK Ltd. Beaumont Buildings Great Ducie Street Manchester M3 1PQ (UK) 0207 9233355 info@quooker.co.uk quooker.co.uk...
