ASSEMBLY INSTRUCTIONS
®
RiverRidge

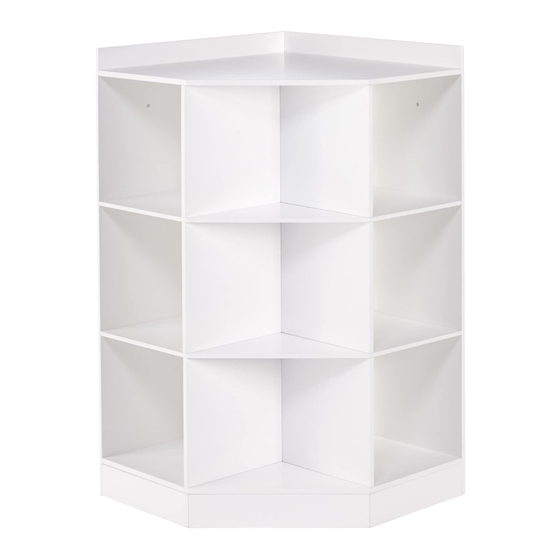

Kids Corner Storage Cabinet
with Cubbies and Shelves
ITEM #: 02-144 White
ITEM #: 02-145 Gray
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over. Don't use
this item for a TV stand or place heavy objects on top of item. Always use
angle-braces or anchors to secure furniture to the wall.
Advertisement
Related Manuals for RiverRidge 02-144
Summary of Contents for RiverRidge 02-144
- Page 1 ® RiverRidge Kids Corner Storage Cabinet with Cubbies and Shelves ITEM #: 02-144 White ITEM #: 02-145 Gray ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
- Page 2 This product is suitable for children 3 years and older. EACH CABINET WILL HOLD UP TO 20 POUNDS PER CUBBY, 10 POUNDS PER CORNER SHELF AND 25 POUNDS PER TOP SHELF OR A TOTAL OF 175 POUNDS. DO NOT LOAD EACH CUBBY WITH MORE THAN 20 POUNDS, EACH CORNER SHELF WITH MORE THAN 10 POUNDS AND THE TOP SHELF WITH MORE THAN 25 POUNDS.
-
Page 3: Parts List
PARTS LIST DESCRIPTION Top Board 2PCS Middle Shelf Bottom Shelf Left Side Panel Right Side Panel 3PCS Vertical Support Board 3PCS Right Support Board 3PCS Left Support Board Middle Bottom Trim Left Bottom Trim Right Bottom Trim... - Page 4 PARTS DESCRIPTION 21PCS Cam Bolt 21PCS Cam Lock 41PCS Wood Dowel 2PCS Hinge 8PCS Screw (3x10mm) 35PCS Screw (4x35mm) 2PCS Plastic Anchor 2PCS Screw (4x45mm) TOOLS NEEDED FOR ASSEMBLY: FLAT & PHILLIPS SCREWDRIVER (NOT INCLUDED) THE USE OF A POWER SCREWDRIVER IS NOT RECOMMENDED FOR ASSEMBLY DO NOT USE ITEM IF ANY PARTS ARE MISSING OR DAMAGED To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com.
- Page 5 STEP 1 1. Screw 4 cam bolts (A) into cam bolt holes on top board (1). 2. Insert 4 wood dowels (C) into wood dowel holes on top board (1). 3. Screw 4 cam bolts (A) into cam bolt holes on middle shelf (2). 4.
- Page 6 STEP 3 1. Screw 1 cam bolt (A) into cam bolt holes on vertical support board (6). 2. Repeat above step for other 2 vertical support boards (6). 3. Insert 2 wood dowels (C) into wood dowel holes on vertical support board (6). 4.
- Page 7 STEP 5 1. Attach vertical support board (6) and right support board (7) to middle shelf (2) by inserting cam bolts (A) into cam lock holes on vertical support board (6) and right support board (7). 2. Insert 4 cam locks (B) into cam lock holes on vertical support board (6) and right support board (7) and rotate clockwise to secure cam bolts in place.
- Page 8 STEP 7 1. Attach left bottom trim (10), middle bottom trim (9) and right bottom trim (11) to bottom shelf (3) by inserting cam bolts (A) into cam lock holes on left bottom trim (10), middle bottom trim (9) and right bottom trim (11). 2.
-
Page 9: Care Instructions
STEP 9 Option #1: Securing to Drywall 1. Position cabinet against wall in desired location. Using a pencil, make small marks on wall through holes on side panels. Move cabinet away from wall and screw 2 plastic anchors (G) into wall on pencil marks. - Page 10 Thank you for purchasing this RiverRidge Home item. We hope you ® enjoy it and consider purchasing other RiverRidge items. To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States.
