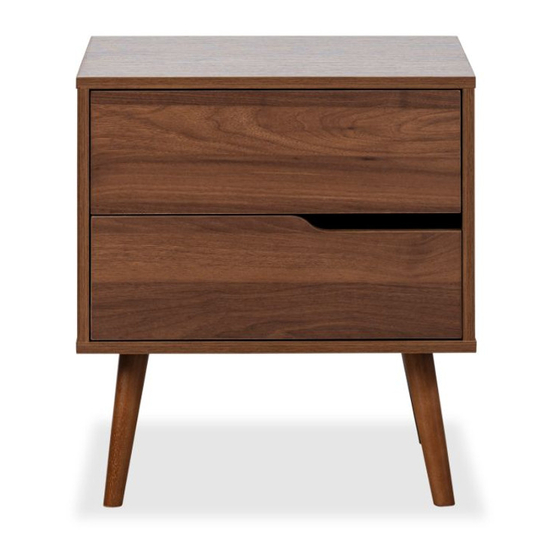

Edmond Bedside Table
Assembly Instructions
Thank you for your purchase. Please follow the instructions for correct assembly.
While we took great effort to ensure these assembly instructions were correct at
the time of printing, sometimes updates are required post production. For the
most up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz
A
B
C
long
dowel
bolt
locking
screw
x8
x12
nut x12
x4
J
K
L
long bolt
plastic
Allen
screw
x8
glide
Key
x4
x1
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D
E
G
F
bracket
screw
bolt
x16
x4
x20
M
N
O
slide
slide
slide
x8
rail x2
rail x2
rail x2

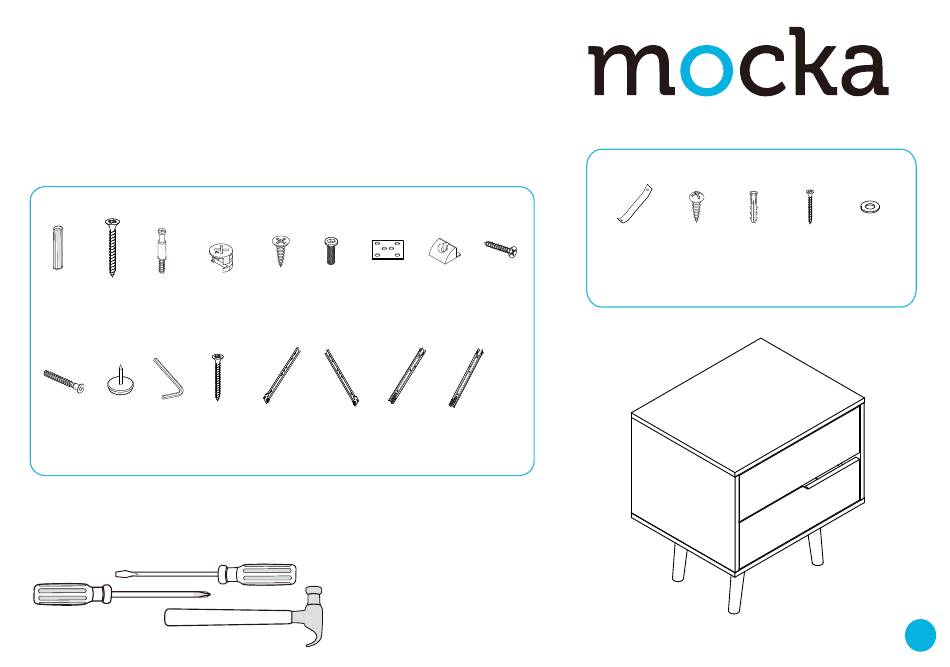

Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
H
I
wedge
screw
x4
x4
P
Q
slide
rail x2
V
W
X
safety
screw
wall
x1
strap x1
anchor
x1
Wall Strap
Y
Z
wall
washer
screw
x2
x1
1
Advertisement
Related Manuals for Mocka Edmond Bedside Table
Summary of Contents for Mocka Edmond Bedside Table
- Page 1 Phillips & Flathead screwdrivers and hammer required For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
-
Page 2: Panel Layout
Edmond Bedside Table Assembly Instructions Panel layout Insert 4x bolts (C) into panel [1]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558... - Page 3 Attach panels [3] and [4] to panel [1] with 4x dowels (A) and secure with 4x Tighten with a screwdriver. Attach 2x slide rails (O) to panel [4] and locking nuts (D). Tighten with a screwdriver. secure with 6x screws (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Slide panel [5] down along the grooves between the panels [3] Attach panel [2] to panels [3] and [4] with 4x dowels (A) and secure with 4x and [4] as shown. long screws (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Attach legs [40] to panel [2] using 16x bolt (F) as shown. Tighten with an Allen key (L). Attach 4x plastic glides (K) to the panels [40] using a hammer as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Attach panels [30] and [31] to panel [32] secure with 8x screws (M). Slide panel [33] down along the grooves between the panels [30] and [31] Tighten with a screwdriver. as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Attach slide rails (P) and slide rails (Q) to the underside of the side panels 8x locking nuts (D). Tighten with a screwdriver. as shown. Secure with 8x screws (E) and tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 4x screws (I). Tighten with a screwdriver. Attach 1x safety strap (V) to the top of the back side of the unit as shown using 1x washer (Z) and 1x screw (W). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 (V). Fasten to the wall using 1x washer (Z), 1x wall anchor (X) and 1x wall screw (Y). Ensure unit is balanced and steady before use. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
