Mocka Edmond Three Assembly Instructions Manual

Edmond Three Drawer
Assembly Instructions
Thank you for your purchase. Please follow the instructions for correct assembly.
While we took great effort to ensure these assembly instructions were correct at
the time of printing, sometimes updates are required post production. For the
most up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz
A
B C D
dowel
long bolt locking
x8 screw
x25 nut x25
x6
J K L
long bolt screw
plastic
Allen
x8
glide Key
x4 x1
WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
E
F G
bracket
screw bolt
x4
x16
x30
M N O
slide slide slide
x15
rail x3 rail x3 rail x3

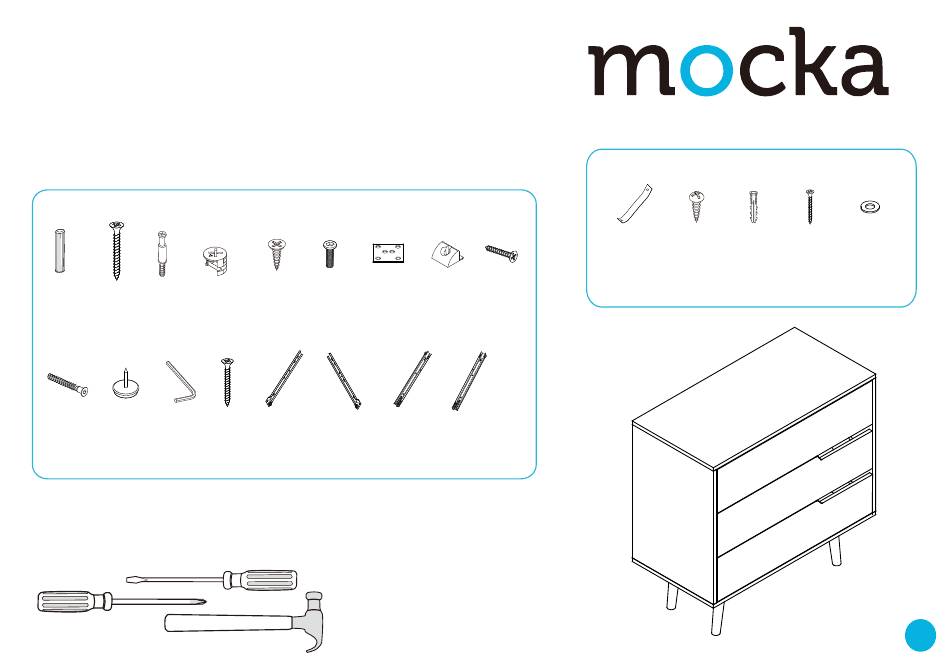

Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
I
H
wedge screw
x8 x8
P Q
slide
rail x3
V W X
safety screw wall
x1
strap x1 anchor
x1
Wall Strap
Y Z
wall washer
screw x2
x1
1
