Edmond Console Table
Assembly Instructions
Thank you for your purchase. Please follow the instructions for correct assembly.
While we took great effort to ensure these assembly instructions were correct at
the time of printing, sometimes updates are required post production. For the
most up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz
A
B
plastic
screw
glide x4
x7
F
E
bolt
washer
x8
x8

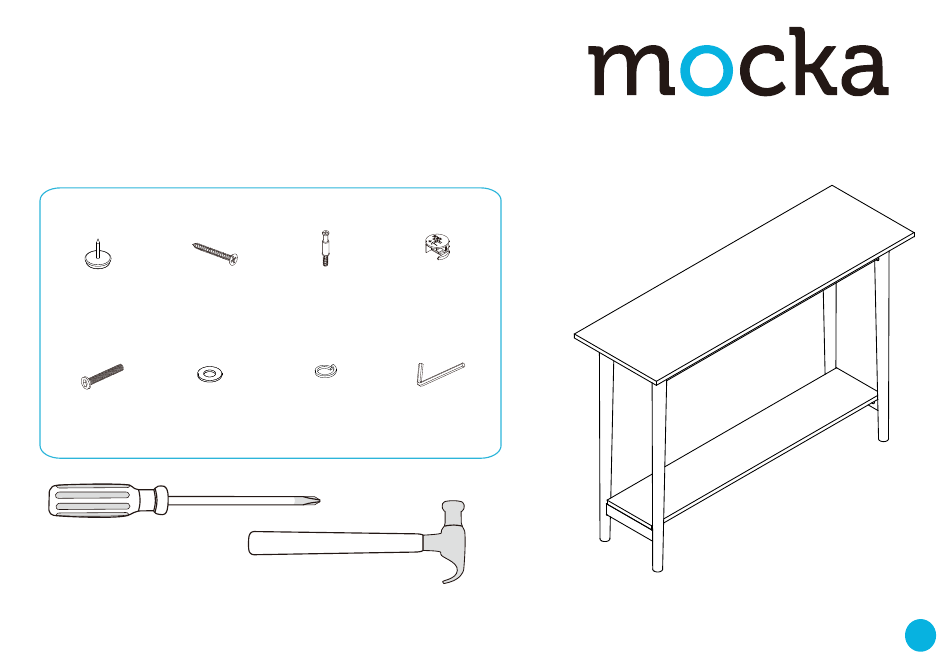

Hardware Supplied

Phillips screwdrivers and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
C
D
bolt
locking
x6
nut x6
G
H
spring
Allen Key
washer
x1
x8
1
