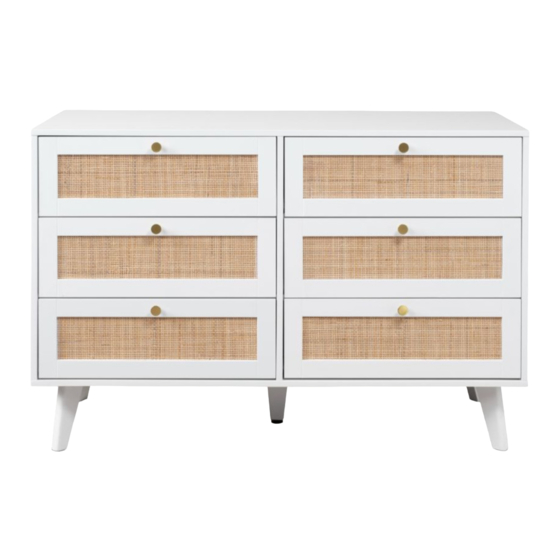

Mocka Georgia Six Drawer Assembly Instructions Manual

Georgia Six Drawer
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A B C
bolt locking nut dowel
x58 x58 x6
G H I
screw 0.12 screw left rail
x10 x60 x6
M N O
screw 0.14 screw bracket
x20 x10 x8
S
allen
key
Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
D E
0.35 screw handle
screw
x41 x6 x6
J K L
right rail plate foot
x6 x5 x1
P Q R
wall strap washer wall plug
x2 x4 x2
F
WARNING: Any furniture that is not anchored to a wall has the
potential to tip over in certain circumstances, ie. if a child attempts
to climb on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall.
We supply a free safety wall anchor with all furniture sold and we
recommend these are used to prevent your product tipping. The
fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from
those supplied.
1
