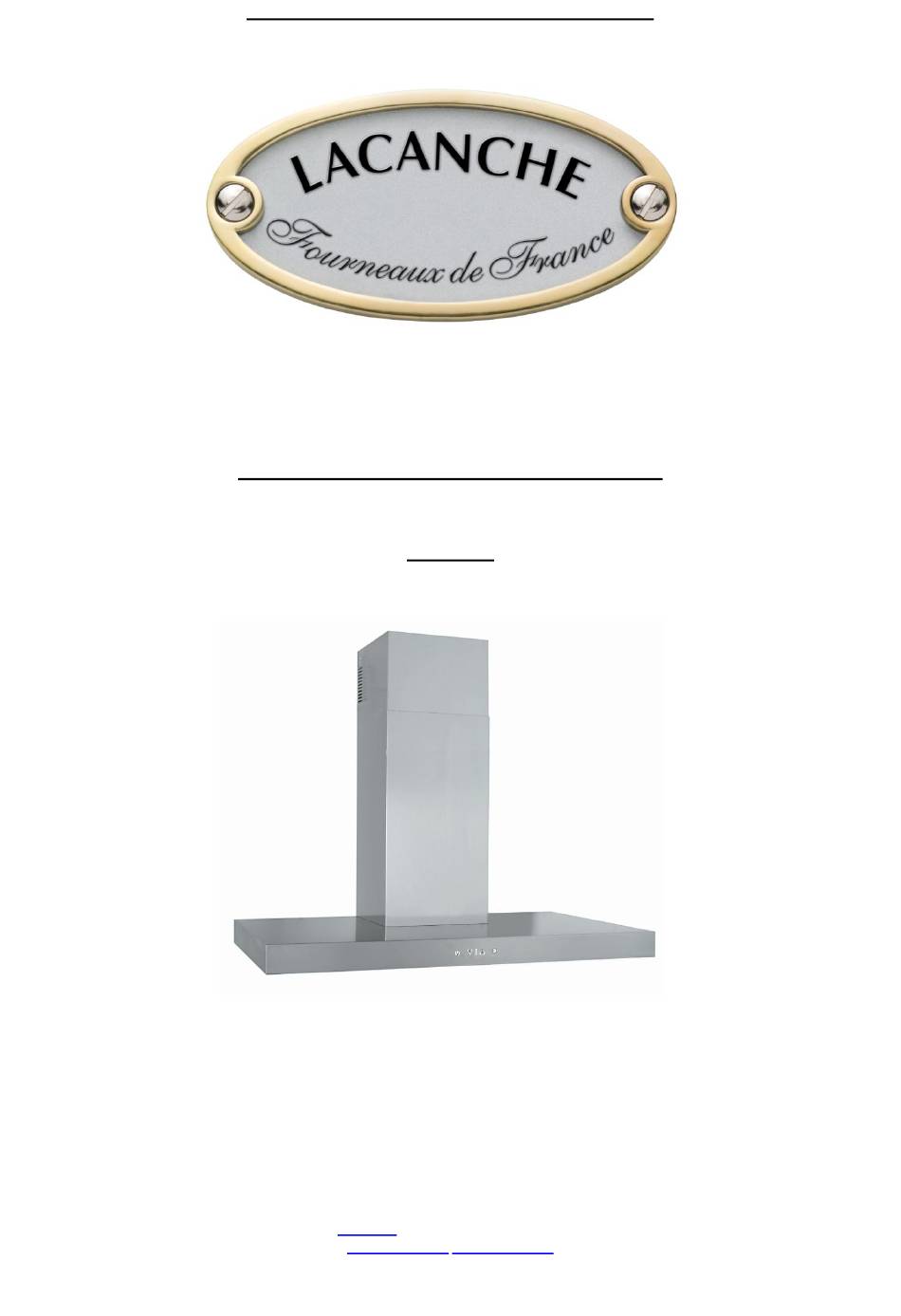

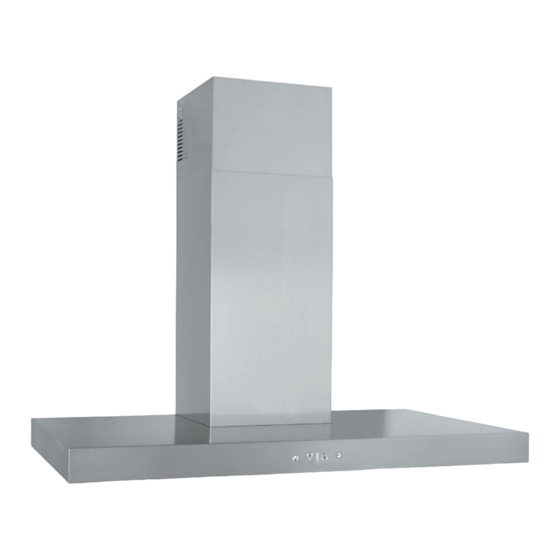

- Page 1 Use and maintenance instructions for High Performance Extraction Systems FMPS100 Fourneaux de France Ltd 3 Albion close, newtown business park, poole, dorset bh12 3ll tel:01202 733011 Fax:01202 733499 info@fdef.co.uk www.fdef.co.uk...
- Page 2 INDEX SECTION 1. CHECKLIST OF ITEMS SECTION 2. EXTRACTION PERFORMANCE SECTION 3. IMPORTANT INFORMATION SECTION 4. INSTALLATION SECTION 5. REMOVING AND REFITING THE GREASE FILTERS SECTION 6. ELECTRICAL INSTALLATION SECTION 7. WARNING SECTION 8. OPERATING INSTRUCTIONS SECTION 9. MAINTENANCE...
-
Page 3: Section 3. Important Information
If ducting the FMPS100 extractor into a chimney it is recommended that the chimney must be lined and that the diameter of the chimney must be a minimum of 150mm. Consideration must be give to the length of the chimney, a long chimney will reduce the performance of the extractor. -
Page 4: Section 4. Installation
SECTION 4. INSTALLATION Your Lacanche FMPS100 extraction hood is designed to be fitted directly onto a wall and is vented from the top. When installing the extractor care should be taken on the position that the extractor is installed. - Page 5 Fig 5 (X C A B S) Drilling Jig & Mounting Bracket Fixing Fig 6 Hanging the Hood on the Mounting Bracket Fig 7 Adjusting the Horizontal and Vertical Fixing Screws Duct Installation Make a hole or holes in the walls and/or ceiling, as necessary, in order to take 150mm diameter ducting from the extractor spigot(s) to the outside.
- Page 6 Installing the Extractor Chimney Section Using the centre line of the hood as guide fix the chimney mounting bracket to the ceiling or the wall as per Fig.9. Connect the ducting as per Fig.8 Position the lower section of the chimney (as per Fig.10) onto the top of the extractor. ...
- Page 7 SECTION 5 REMOVING AND REFITING THE GREASE FILTERS Remove the grease filters by pulling the latch out and then pulling the filter downwards as per Fig.11 To refit the grease filters ensure the tabs at the rear of the grease filter are located into the slots provided for on the extractor see Fig.12.
-
Page 8: Section 6. Electrical Installation
SECTION 6. ELECTRICAL INSTALLATION ELECTRICAL HAZARD DISCONNECT ELECTRICAL SUPPLY BEFORE PROCEEDING FURTHER The extractor is a stationary appliance designed to be connected by fixed wiring to the electrical supply. A competent electrical technician must perform the electrical installation. The hood must be fed from a 230Vac single phase electrical supply using a switched spur fitted with a 3A fuse for single ... -
Page 9: Section 8. Operating Instructions
SECTION 8. OPERATING INSTRUCTIONS A. Light switch on/off B. Reduce speed C. Motor speed LED’s D. Increase speed E. 10 minute run on timer switch Fig 13 Extractor Controls If the push button console malfunctions, remove the grease filters and press the red button inside the appliance twice. ... -
Page 10: Section 9. Maintenance
SECTION 9. MAINTENANCE WARNING Unplug the appliance or switch off the circuit breaker before carrying out maintenance operations. Regular maintenance is essential to ensure good performance and long-life. To clean the stainless steel surfaces of the hood use a damp cloth only. Do not use abrasive cleaning materials or products on any surface. - Page 11 SECTION 10. CONSTRUCTION AND TECHNICAL SPECIFICATIONS 4.1 CONSTRUCTION CHARACTERISTICS STAINLESS STEEL SHEET BODY Thickness 8/10 ALUMINIUM BODY AISI - 430. 4.2 GENERAL CHARACTERISTICS ELECTRICAL SYSTEM ACCORDING TO THE INTERNATIONAL REGULATIONS 2 x 20W HALOGEN LIGHTING 4 OPERATING SPEEDS COOKING COUNTER LIGHTING SYSTEM 4.3 TECHNICAL DATA FLOW RATE PER HOUR MC 1000 STATIC PRESSURE 400 Pa...
