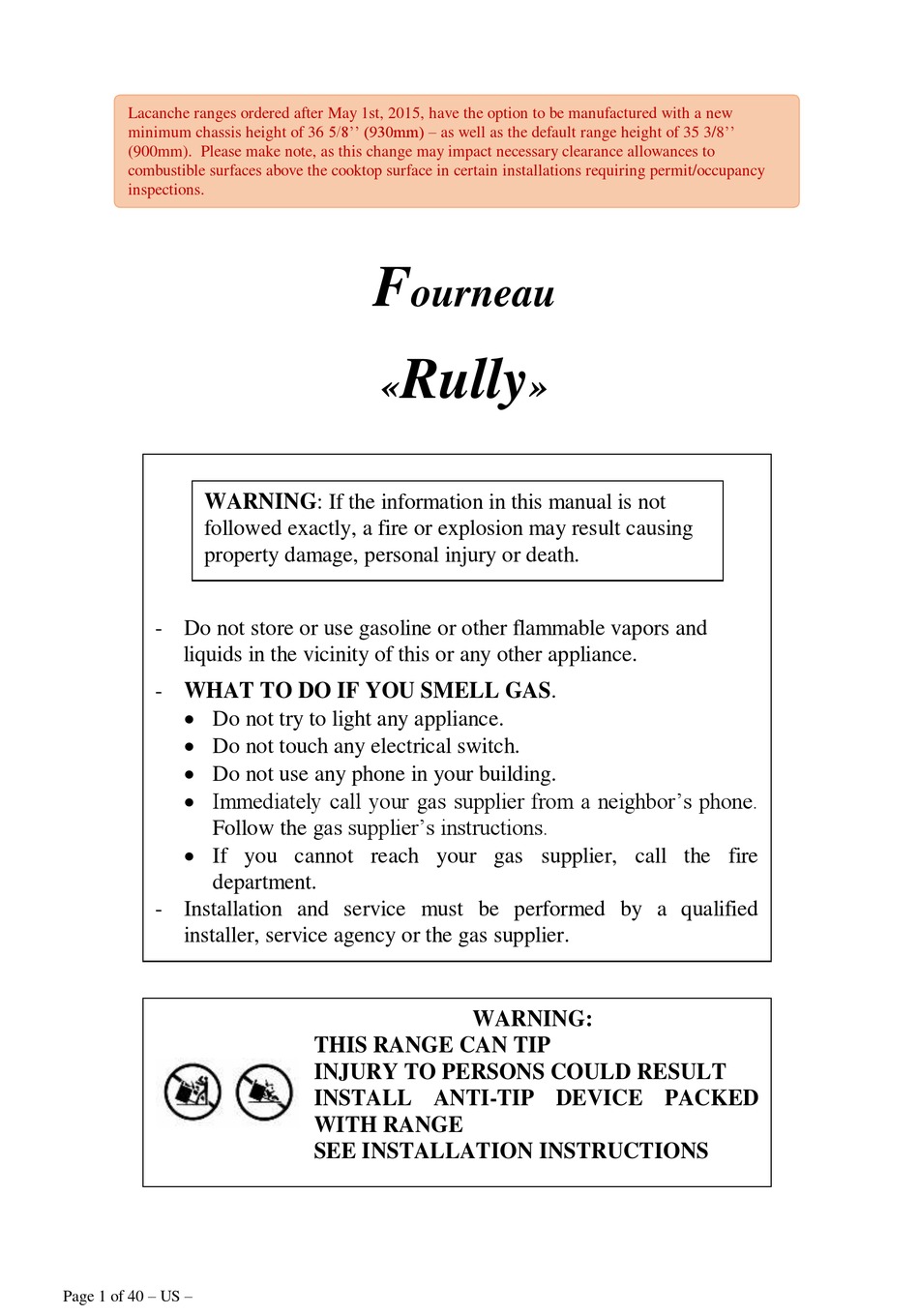

Lacanche ranges ordered after May 1st, 2015, have the option to be manufactured with a new
minimum chassis height of 36 5/8'' (930mm) – as well as the default range height of 35 3/8''
(900mm). Please make note, as this change may impact necessary clearance allowances to
combustible surfaces above the cooktop surface in certain installations requiring permit/occupancy
inspections.
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or death.
- Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS.
 Do not try to light any appliance.
 Do not touch any electrical switch.
 Do not use any phone in your building.
 Immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
 If you cannot reach your gas supplier, call the fire
department.
- Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
Page 1 of 40 – US –
F
ourneau
Rully
«
WARNING:
THIS RANGE CAN TIP
INJURY TO PERSONS COULD RESULT
INSTALL ANTI-TIP DEVICE PACKED
WITH RANGE
SEE INSTALLATION INSTRUCTIONS
»

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rully and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lacanche Rully

Summary of Contents for Lacanche Rully

  • Page 1 Lacanche ranges ordered after May 1st, 2015, have the option to be manufactured with a new minimum chassis height of 36 5/8’’ (930mm) – as well as the default range height of 35 3/8’’ (900mm). Please make note, as this change may impact necessary clearance allowances to combustible surfaces above the cooktop surface in certain installations requiring permit/occupancy inspections.
  • Page 2 Page 2 of 40 – US –...
  • Page 3 GENERAL MANUAL RULLY 700 mm 27’’ 9/16 930 mm* 36 5/8’’ 838 mm* 33’’ Fig. 1 144 mm* ’’ 11/16 560 mm 22’’ 3/64 70 mm* 2’’ Fig. 2 * The range Height is adjustable: ’’ to 946mm - 37 ’’...
  • Page 4 GENERAL MANUAL RULLY 217mm ’’ 35/64 45mm ’’ 49/64 Fig. 3 217mm ’’ 35/64 45mm ’’ 49/64 Fig. 4 217mm ’’ 35/64 45mm ’’ 49/64 Fig. 5 Page 4 of 40 – US –...
  • Page 5 GENERAL MANUAL RULLY Layout 3- or 4-burner cook’s stove above a 68 litre/2.40 ft oven and a 35 litre/1.24 ft oven (fig.1 & 2).. Description: Enamelled steel or stainless body panels AISI 430. Pressing cooking surface (stainless steel AISI 304) (Figures 3, 4 and 5).
  • Page 6 GENERAL MANUAL RULLY Electrical connection: On terminal block at the rear of the appliance. Use flexible cord in accordance with standard N.E.C., AINSI/NEMA 70- 1996 or latest edition (not cord provided by factory) (Figures 1, 2, 3, 4, and 5).

  • Page 7: Installer's Manual

    Rully « » INSTALLER'S MANUAL Appliances must be installed in a workmanlike manner in accordance with the instructions in this manual and locally applicable regulations. This manual will be handed over to the user after installation. Page 7 of 40 – US –...
  • Page 8 Page 8 of 40 – US –...

  • Page 9: Cabinet Preparation

    INSTALLER’S MANUAL RULLY  Cabinet preparation Gas connection on range Place electric and gas Electrical connection stub-out in this area on range Fig. 10 ’’ 27 ¾  The range is a free standing unit. If the unit is to be placed next to cabinets, the clearances shown in Figure 10 are required.
  • Page 10 INSTALLER’S MANUAL RULLY  Recommended to be installed under an exhaust hood.  In the commonwealth of Massachusetts, the appliance must be installed by a licensed plumber or gas fitter.  Do not install this unit near combustible walls, partitions,...
  • Page 11 INSTALLER’S MANUAL RULLY Remove the pan supports and burners. Unscrew the screw(s) C on burner UF or T (Figures 13 and 14). Pull and raise the top after having loosened the 2 screws D (Fig. 15), wedge the cooking surface.
  • Page 12 INSTALLER’S MANUAL RULLY In case of use with a gas other than that for which the appliance was initially set up, it is crucial to replace the Wrench 12mm orifices and modify the adjustments as defined below. TOP BURNERS: ...
  • Page 13 INSTALLER’S MANUAL RULLY Table 3 Table 4 Burners Burners Pressure Ø Pressure Opening in mm/ inches Natural Gas 6" WC 0.90 1.30 1.45 1.70 Natural Gas 6" WC 2.5 / 2.5 / L.P. propane 10" WC 0.65 0.90 1.05 1.20 L.P.
  • Page 14 INSTALLER’S MANUAL RULLY Fig. 26 Fig. 27   Oven orifice: Fig. 28 Remove the base, CAUTION: when refitting place the base underneath the groove on the fascia (Figures 24 and 25). To remove the oven burner: Disconnect the connection piece, unscrew screw M on the orifice holder (Figure 28).
  • Page 15 INSTALLER’S MANUAL RULLY ELECTRICAL  ALL WORK ON OR REPAIR OF AN APPLIANCE MUST BE CARRIED OUT BY A QUALIFIED INSTALLER. IMPORTANT  THE APPLIANCE WHEN INSTALLED, MUST BE ELECTRICALLY GROUNDED IN ACCORDANCE WITH THE LOCAL CODES OR The National Electrical Code, ANSI/NFPA 70-1996 or latest edition.
  • Page 16 INSTALLER’S MANUAL RULLY BACK SPACER VENT FITTING: It is mandatory to mount the back spacer vent R to the wall supplied with the appliance. Screw the 2 brackets S to the wall according to figures 35, 36 and 37 (screws not supplied), then fit the back spacer vent onto these brackets by using the washers and nuts supplied with the range.
  • Page 17 INSTALLER’S MANUAL RULLY SERVICE INSTRUCTIONS: - Lubricating gas valve. If the gas taps tends to stick slightly, you may follow this procedure:  1 - Shut off the valve and / or the main electrical supply of the unit. ...
  • Page 18 INSTALLER’S MANUAL RULLY GAS CIRCUIT DIAGRAMME Designation Part number Burner cap 1,5 kW 65.330004 Burner cap 3,0 W 65.330005 Burner cap 4,0 kW 65.330006 Burner cap 5,0 kW 65.330007 Burner bowl 1,5 kW 65.640008 Burner bowl 3,0 kW 65.640004 Burner bowl 4,0 kW 65.640005...
  • Page 19 INSTALLER’S MANUAL RULLY 65.226006 65.39895 1,5 kW = 65.064007 3,0 kW = 65.064007 4,0 kW = 65.064007 5,0 kW = 65.064007 65.080005 65.033018 65.103033 65.103029 + 4 screws 65.129101 + 4 disc 65.30932 Page 19 of 40 – US –...
  • Page 20 INSTALLER’S MANUAL RULLY Détail A: Détail B: 65.103032 (LP) 65.103031 (NG) 65.103033 65.103033 65.103029 Page 20 of 40 – US –...
  • Page 21 INSTALLER’S MANUAL RULLY Top burners (code A,E,5,N,D,T,I,C,01,02,03,0O,0T) / gas grill (code 0Y) 120 V 60 Hz Item n° Designation Top burner electrode 65.226006 Switch 65.103030 Page 21 of 40 – US –...
  • Page 22 INSTALLER’S MANUAL RULLY Convection & Static Electric oven (code D) 240 V 60 Hz arco3960 arco3960 Item n° Designation Three pole limiting thermostat 65.39942 Oven regulating thermostat 65.224010 Contactor 65.223001 Thermostat switch 65.52194 Inverter 65.222012 Roof heating element 65.211030 Base heating element 65.211026...
  • Page 23 INSTALLER’S MANUAL RULLY Page 23 of 40 – US –...
  • Page 24 Page 24 of 40 – US –...

  • Page 25: Warranty

    LACANCHE « » USER'S MANUAL IMPORTANT Provide adequate air supply during use of the appliance. Provide adequate clearances for servicing and proper operation by not obstructing front or side of appliances. WARRANTY The warranty is stated on the sales contract.
  • Page 26 Page 26 of 40 – US –...

  • Page 27: Safety Instructions

    USER’S MANUAL RULLY SAFETY INSTRUCTIONS  If the range is to be installed on an area covered with linoleum or any other floor covering, make sure that the floor covering can withstand 90 F (65°C) above room temperature without warping, shrinking or discoloring. Do not install the range over carpeting.

  • Page 28: Gas Surface Burners

    USER’S MANUAL RULLY AS SURFACE BURNERS ighly valued by chefs because of their fast heating and ease of use, gas flame burners have always been traditional heat sources for cooking in large kitchens. Other heat sources have appeared in recent years but just as many users still prefer gas.
  • Page 29 USER’S MANUAL RULLY Turn on main gas supply to range. O FF O FF - Depress handle & rotate burner valve handle anti-clockwise past the “IGN” position. I G N - Depress handle fully and wait for the burner’s thermocouple to heat up.

  • Page 30: Heating Plate

    USER’S MANUAL RULLY EATING PLATE DANGER Temperature may exceed 300 °C/ 572 °F. Warn potential users of hazards involved. he heating plate is a cast iron plate heated by a high-power gas burner. It can be used as a work surface and several saucepans can be placed on it at the same time.
  • Page 31 USER’S MANUAL RULLY The traditional heating plate is coated with a black enamel coating. No maintenance or pre-treatment is necessary. Not a direct cooking surface. O FF Turn on main gas supply to range. O FF - Depress handle & rotate burner valve handle anti-clockwise past the I G N “IGN”...

  • Page 32: Before Using Ovens

    USER’S MANUAL RULLY BEFORE USING OVENS n order to achieve optimum use and maximum benefit from your oven, please read the following hints carefully in order to familiarise yourself with the principles of oven cooking. n oven cooks and heats by using a heat source which is generally located inside the oven. This heat source heats the air and then the entire oven.

  • Page 33: E Lectric Grill

    USER’S MANUAL RULLY ELECTRIC GRILL OVEN Electric grill ovens is simple to use and are ideal for cooking all usual dishes. The electric grill oven has tow heating elements and can be used as both an oven and a grill.
  • Page 34 USER’S MANUAL RULLY CAUTION, the grill cooks very quickly, always keep an eye on the food you are cooking  Lightly oil the surface of meat and fish before placing them on the sliding grid  Only place and use the drip tray under the grid in order to collect cooking juices and prevent spillages in the case of food cooked au gratin.
  • Page 35 USER’S MANUAL RULLY LECTRIC MULTIFUNCTION OVEN his oven is switchable between two functions: a static electric function and a forced convection electric function. he volume of the multifunction oven is 68 L / 2.40 ft o select the operating function it is necessary to make sure the switch is;...

  • Page 36: Electric Oven

    USER’S MANUAL RULLY ELECTRIC OVEN lectric ovens are simple to use and are ideal for cooking all usual dishes. he electric oven has three heating elements and can be used as both an oven and a grill. he electric oven is specially recommended for dry pastries such as almond biscuits, Genoese sponges, etc.
  • Page 37 USER’S MANUAL RULLY seful hints: - Use pans with high edges for roasting in order to minimise grease splashes. - When cooking fruit tarts, place the drip tray at the bottom of the oven in order to collect any spillages.
  • Page 38 USER’S MANUAL RULLY ELECTRIC FORCED CONVECTION OVEN he forced convection oven is a recent development in cooking techniques. Its principle is straightforward: air circulates over a heating element, is heated when it comes into contact with the element and the heat thus obtained in the oven is used to cook food.

  • Page 39: Useful Hints

    USER’S MANUAL RULLY Useful hints: Before using the oven for the first time, it is advisable to switch it on without anything in it at the maximum thermostat position for 1/2 hour in order to eliminate the smell of fumes due to the composition of the mineral wool used to insulate the oven and residues from mineral oil applied during manufacture.
  • Page 40 USER’S MANUAL RULLY CLEANING BEFORE ANY CLEANING WORK, CLOSE THE GAS SUPPLY AND/OR ISOLATE FROM THE MAINS SUPPLY Oven: Use no abrasive cleaners on the oven walls. Special oven cleaning foams or gels (i.e. Easy-Off) may be used but should be kept away from the heating elements. Towel dry and wipe away cleaning foam or gel after the cleaning process is complete.
