Lacanche ranges ordered after May 1st, 2015, have the option to be manufactured with a new
minimum chassis height of 36 5/8'' (930mm) – as well as the default range height of 35 3/8''
(900mm). Please make note, as this change may impact necessary clearance allowances to
combustible surfaces above the cooktop surface in certain installations requiring
permit/occupancy inspections.
WARNING : If the information in this manual is not followed exactly, a
explosion may result causing property damage, personal injury or death.
•
Do not store or use gasoline or other
appliance.
•
WHAT TO DO IF YOU SMELL GAS.
•
Do not try to light any appliance.
•
Do not touch any electrical switch.
•
Do not use any phone in your building.
•
Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
•
If you cannot reach your gas supplier, call the
•
Installation and service must be performed by a
supplier.

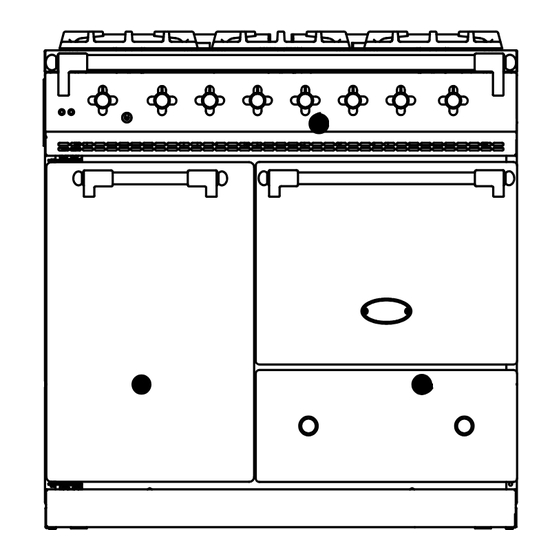

BEAUNE
BUSSY
LG 962 G/ E/ CT
vapors and liquids in the vicinity of this or any other
WARNING :
THIS RANGE CAN TIP
INJURY TO PERSONS COULD RESULT
INSTALL ANTI-TIP DEVICE PACKED WITH RANGE
SEE INSTALLATION INSTRUCTIONS
Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12
department.
installer, service agency or the gas
or
1/42
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lacanche BEAUNE
Summary of Contents for Lacanche BEAUNE
- Page 1 Lacanche ranges ordered after May 1st, 2015, have the option to be manufactured with a new minimum chassis height of 36 5/8’’ (930mm) – as well as the default range height of 35 3/8’’ (900mm). Please make note, as this change may impact necessary clearance allowances to combustible surfaces above the cooktop surface in certain installations requiring permit/occupancy inspections.
-
Page 2: Table Of Contents
——————————————————12 ELECTRIC CONNECTION ——————————————————————————————18 INSTALLATION ———————————————————————————————————19 SERVICE INSTRUCTIONS ——————————————————————————————20 ELECTRIC CIRCUIT DIAGRAMS ———————————————————————————21 GAS LINE — —————————————————————————————————————24 USER’S MANUAL 27 SAFETY INSTRUCTIONS — ——————————————————————————————29 GAS SURFACE BURNERS ——————————————————————————————31 BEFORE USING OVENS ———————————————————————————————33 GAS OVEN —————————————————————————————————————35 ELECTRIC OVEN ——————————————————————————————————37 MULTI FUNCTION ELECTRIC OVEN VERTICAL ————————————————————39 CLEANING AND MAINTENANCE ———————————————————————————41 Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 2/42... -
Page 3: Technical Data Sheets, Measurements And Dimensions
Electric connection, on terminal block at the rear of the Gas connection Tube NPT, 1/2” i.d. gas thread, on male appliance - 240v, 30A, 4 Wire coupling Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 3/42... - Page 4 Burner diameter Intensive Ø 90 mm Fast Ø 72 mm Ø 55 mm Semi fast Width Depth Height mm / ’’ Weight Gross/Net - Kg / lb Appliance 1130 mm / 44.5’’ 760 mm / 29.9’’ 1050 mm / 41.3’’ 120 kg /108 kg – 267 / 240 lb LG 1052 G Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 4/42...
- Page 5 L.P. Propane Burner Btu / hr Btu / hr Oven 13500 11000 Intensive (I) 15000 13000 Fast (F) 11000 10000 Semi fast (SF) 5000 5000 Directives : Gas appliances : 2009/142/CEE Low Voltage : 2006/95/CEE CEM : 2004/108/CEE INSTALLER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 5/42...
- Page 6 Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 6/42...
-
Page 7: Installer's Manual
"BEAUNE - BUSSY" INSTALLER’S MANUAL Appliances must be installed in a workmanlike manner in accordance with the instructions in this manual and locally applicable regulations. This manual will be handed over to the user after installation. Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 7/42... - Page 8 Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 8/42...
-
Page 9: Cabinet Preparation
Manual shut-off valve should be installed in an accessible location in the gas piping external to the appliance for the purpose of turning on or shutting off gas to the appliance. INSTALLER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 9/42... -
Page 10: Gas Connection
Gas connection Female coupling Ø 15/21, 1/2” ID NPT on / figure After connection Check the manifold pressure on pressure connection Ø 15/21, 1/8” NPT on / figure Subsequently check the circuit for gas leaks. The appliance is designed to operate with the gases in Table 1. Table 1 Country Pressure (Pn) Natural gas 6’’ WC L.P. propane 10’’ WC INSTALLER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 10/42... -
Page 11: Opening And Refitting The Hob
To remove top : 1- Remove the pan supports and burners. 2- Unscrew the screw(s) on burners , see and / figures and 3- Loosened the 2 screws / figure through the ventilation strip. 4. Pull and raise the top figure 5- Wedge the cooking surface / figure 2. Lift the table 1.Pull foward Refitting the cooking surface When refitting the cooking surface, it is vital to tighten fastening screws. Failure to do so can cause distortion of the cooking surface. INSTALLER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 11/42... -
Page 12: Change Of Gaz
A pressure regulator figure is located in the right rear corner under the hob, to gain access to the pressure regulator, remove the top. Changing the gas type of top : Convertible regulator The reversible cap is labeled either « LP » or « Nat » and is easily recognized by the raised center screw slot (for natural) or the center depth (for LP). To change LP to Natural or vice versa, the seal screw in the regulator lid is unscrewed, reversed and reinstalled to convert from one setting to another/ figures and Nat Setting LP Setting INSTALLER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 12/42... - Page 13 If necessary, the mixer tubes of the lateral burners maintained by a cross-bar be released. / figure and then screw / figure To release the tubes loosen screws N.B. When replacing injector(s), also replace the sealing washer (see paragraph “Gas Line”). wrench, 12 Table 2 Burners Pressure 6» WC 0.90 1.30 1.45 Natural gas 10» WC 0.65 0.90 1.05 L.P. propane INSTALLER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 13/42...
- Page 14 N.B : Flame is reduced to ¼ of its size in the minimum setting, the burner must remain lit when changing from maximum setting to minimum setting. Adjusting the safety devices for each thermocouple of the hob: : If the burner goes out, having kept the control knob pushed in for roughly twenty seconds, check that : - The magnetic head grip the valve moderately. - The flame touches the point of thermocouple figure - The thermocouples and magnetic heads are absolutely clean. INSTALLER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 14/42...
- Page 15 / figure and , table 4. Screw Injector Air ring Setsrew Table 4 Ø Pressure Oven Pilot burner 6» WC 1.40 0,45 Natural gas 10» WC 0.95 0,25 L.P. propane INSTALLER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 15/42...
- Page 16 Opening in mm / inches Pressure Oven 6» WC 4 / Natural gas 10» WC 6 / L.P. propane Adjusting air ring CAUTION : When refitting place the base underneath the groove on the fascia/ figure Adjusting pilot burner air supply : / figure to fully open for Butane/Propane, to half open for natural gas. Turn ring INSTALLER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 16/42...
- Page 17 CHANGE OF GAS Adjusting the oven thermocouple safety devices : If the burner goes out, having kept the control knob pushed in for roughly twenty seconds, check : - (Moderate) tightening of Magnetic head on the valve. - The flame touches the point of thermocouple. - The thermocouples and magnetic heads are absolutely clean. INSTALLER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 17/42...
-
Page 18: Electric Connection
L2 L3 400 V 3N ~ 50 Hz 230 V 1N ~ 50 Hz The supply of three phase 400 without neutral is not possible INSTALLER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 18/42... -
Page 19: Installation
INSTALLATION Back spacer vent fitting : It is mandatory to mount the back spacer vent to the wall supplied with the appliance. Screw the 2 brackets to the wall according to figures and (screws not supplied), then fit the back spacer vent onto these brackets by using the washers and nuts supplied with the range. Stability device installation instructions : Screw the anti-tip bracket to the wall (screws not supplied). Remove the left-hand drawer, push the range against the wall until the anti-tip bracket screw goes through the back of the range. Through the drawer gap, screw the nut and its washer on the anti- tip bracket screw. INSTALLER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 19/42... -
Page 20: Service Instructions
• 4 - Grease the tap shaft (High temperature lubricant, for example : SILICAL GEL ™ BARBAHL). Caution ! Any excess grease should be removed. Reverse operation 3 to 1 (in that order) to put valve and knob back on. Limiting thermostat : In accordance with the construction regulations, the limiter thermostat is intended to protect the range from overheating. In the event of overheating the limiter thermostat is triggered and cuts out the range’s oven functions. The limiter may therefore be unexpectedly triggered when the oven is first heated and stop the oven from working. Resetting the limiting thermostat : To access internal components. Lift and secure top (see paragraph “Opening and refitting the hob”) Press pushbutton item / Figure in order to reset the limiting thermostat. Note: ALWAYS IDENTIFY the reason why the thermostat tripped. INSTALLER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 20/42... -
Page 21: Electric Circuit Diagrams
G Reig 6548 6548 6548 6548 Item n° Designation Part number Oven thermostat 6553670 Valve switch 65222002 Thermostat switch 65222003 Thermostat switch 6528979 Top burner electrode 65226006 Oven electrode 65103004 Gas valve 65103027 INSTALLER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 21/42... - Page 22 Designation Part number Three pole limi- 65224003 ting thermostat Regulating ther- 6553670 mostat Electric oven 6552194 switch Lower heating 65211027 element Top heating broil 65211029 element Red Lamp 65231004 Orange Lamp 65231005 Oven lamp 65232004 Switch oven lamp 65222011 INSTALLER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 22/42...
- Page 23 Regulating ther- 65224010 mostat Electric oven 6552194 switch Oven plancha 65222013 switch Broil/ brake hea- 65211029 ting element Convection hea- 65211028 ting element Lower heating 65211027 element Red Lamp 65231004 Orange Lamp 65231005 Motor 120 V 65260012 INSTALLER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 23/42...
-
Page 24: Gas Line
65.14975 Injector Dia. 145 65.27781 Injector Dia. 170 65.30546 Brass knob (Gas model) 65.044013 Chrome knob (Gas model) 65.044014 Brass knob (Elec. model) 65.044015 Chrome knob (Elec. model) 65.044016 Gas valve 65.103021 GST Thermostat 65.224004 GSS Safety 65.224005 GSP Pilot Spark 65.103.022 Regulator 65.103023 Oven burner assy. 88.265400 INSTALLER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 24/42... - Page 25 65330006 65640004 65330007 65640005 90000230 65330006 65330005 65640004 90000229 65640003 50607300 90000218 90000217 59.103027 Voir Détail A 65.103027 65.51085 Voir Détail B 73062010 65.080012 65.51764 INSTALLER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 25/42...
- Page 26 GAS LINE Détail A : Détail B : 65.103032 (LP) 65.103033 65.103029 INSTALLER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 26/42...
-
Page 27: User's Manual
Dealer if any work has to be carried out under warranty. This warranty excludes damage resulting from incorrect installation, improper use or inadequate servicing. Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 27/42... - Page 28 INSTALLER’S MANUAL SAFETY INSTRUCTIONS — ——————————————————————————————29 GAS SURFACE BURNERS ——————————————————————————————31 BEFORE USING OVENS ———————————————————————————————33 GAS OVEN —————————————————————————————————————35 ELECTRIC OVEN ——————————————————————————————————37 MULTI FUNCTION ELECTRIC OVEN VERTICAL ————————————————————39 CLEANING AND MAINTENANCE ———————————————————————————41 Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 28/42...
-
Page 29: Safety Instructions
When using the oven, do not touch the interior surfaces of the oven, the exterior area immediately surrounding the door or the backtrim. Disconnect from power supply before servicing. USER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 29/42... - Page 30 Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 30/42...
-
Page 31: Gas Surface Burners
Top burners 15000 et 11000: are ideal for shallow frying pans, saucepans and cooking pots. Their high output provides very fast increases in temperature and very flexible use. You will quickly learn how to use the various types of burners to achieve optimum cooking. You will quickly learn how to use the various types of burners to achieve optimum cooking. Description : The burners are arranged on a stainless steel hob in various configurations depending on the model. Each burner is equiped with electric ignition. The various types of burners can be identified by their respective diameter. Désignation Burner diameter Intensive Ø 90 mm Fast Ø 72 mm Semi fast Ø 55 mm USER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 31/42... - Page 32 Useful hint Always choose a burner that matches the diameter of the utensil used. CAUTION During use of the cooking surface or oven, accessible parts may become very hot during use. Warn users of the potential hazards. USER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 32/42...
-
Page 33: Before Using Ovens
When placing the dish in the oven, make sure that it is not too close to the oven walls in order to prevent the edges of dishes being exposed to excessive radiated heat. The material of which plates and moulds are made influences cooking due to its thickness, ability to transmit heat and its colour. Aluminium, earthenware and aluminium with a non-stick coating reduce cooking and underside browning. These materials are recommended for cooking cakes and roasts. Enamelled cast iron, anodised aluminium, tin-plated iron, ovenproof glass, heat-resistant porcelain and aluminium with a non-stick coating and coloured exterior increase underside browning. These materials are recommended in particular for open tarts, quiches and all crispy preparations that must be browned on the underside as well as on the top. In order to prevent smoke being given off due to grease splashes when cooking meat, it is advisable to use pans that have high thermal inertia (earthenware or enamelled cast iron pans) with high edges of a size that matches the joint being roasted. Turn red meats over half way through cooking. It is inadvisable to place a pan directly on the base of the oven or to cook joints simply placed in the drip tray. These few hints plus your own experience will enable you to achieve excellent results. Danger : When the oven or grill are switched on, accessible parts may become very hot. Keep children away from them. Be careful when handling dishes and shelves. Openings or slits for ventilation or heat dissipation must not be blocked. Never store flammable products in the compartment for saucepans. USER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 33/42... - Page 34 Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 34/42...
-
Page 35: Gas Oven
Useful hints : - Use pans with high edges for roasting in order to minimise grease splashes. - When cooking fruit tarts, place the drip tray at the bottom of the oven in order to collect any spillages. - It is also advisable never to place foodstuffs directly in the drip tray. USER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 35/42... - Page 36 GAS OVEN To remove oven racks : ■ Pull rack forward to the stop position. ■ Raise the forward edge of the rack and lift out. ■ Reverse procedure to install racks. USER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 36/42...
-
Page 37: Electric Oven
- When cooking fruit tarts, place the drip tray at the bottom of the oven in order to collect any spillages. It is also advisable never to place foodstuffs directly in the drip tray. Electric grill : The electric oven is equipped with a grid that can be used to grill meats and cook all types of dishes au gratin. The electric grill is ideal to finish off crèmes brûlées or obtain perfect cooking of a rib of beef for example. USER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 37/42... - Page 38 The grill cooks very quickly and the user must always keep an eye on it. When grilling, the door must be closed and only opened to inspect the foods and then close again. USER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 38/42...
-
Page 39: Multi Function Electric Oven Vertical
Use : or select the forced-convection mode Select the static mode by turning the switch to position by turning the switch to position The oven must be pre-heated at the thermostat setting chosen for cooking. Turn the thermostat switch clockwise to the required mark. The indicator lamps ( and ) are lit. When indicator lamp is no longer lit, the selected temperature has been reached and you can then place your dish in the oven. To turn off, turn the control knob clockwise to the O position. USER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 39/42... - Page 40 “convection”. Forced convection ovens have many advantages, the main benefit being that identical or different dishes can be cooked evenly at several levels. It is therefore particularly suitable for cooking cakes, pastries, Viennese bread or flaky pastry. It heats quickly and defrosts frozen food evenly. Different dishes can be cooked simultaneously without taste transference because odours are destroyed as the air passes over the heating element. Description : The oven is heated by a 2650 W element. This is fitted with an electric grill with a rating of 2850 W. USER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 40/42...
-
Page 41: Cleaning And Maintenance
Body : You can use special-purpose products for stainless steel (e.g. SUMAINOX ®, JOHNSON STAINLESS STEEL ®, PPZ STAINLESS STEEL ®). Never use abrasive products. Stainless-steel top : The entire hob is dished or comprises dished recesses for easy cleaning and improved hygiene (no water trap). The hob should be cleaned with liquid, non-chlorinated products to avoid scratching the steel. If the hob is stained use a clay stone- and soap-based paste available from department stores. Stainless-steel trim: : The stainless-steel trim should be cleaned with aerosol products available from department stores. You should nevertheless choose a cleaner that contains only a small quantity of silicone to avoid leaving white streaks after the product dries. Brass trim : Use a special brass-cleaning product (e.g. MIROR®) and a soft cloth. If the product runs onto the enamel do not rub (these products generally contain abrasives). Rinse immediately with clean water without rubbing. Another solution is to use solid soap (Pierre d’argent, Pierre d’argile) applied with a damp sponge to the zones to be cleaned. USER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 41/42... - Page 42 Use NO chlorinated cleasers to clean this unit. Carefully read the precautions and recommendations for applying the products you use to clean and maintain the range. Follow the instructions for use. USER’S MANUAL Notice provisoire Beaune - Bussy UL - FT164h - Date : 16/10/12 42/42...
