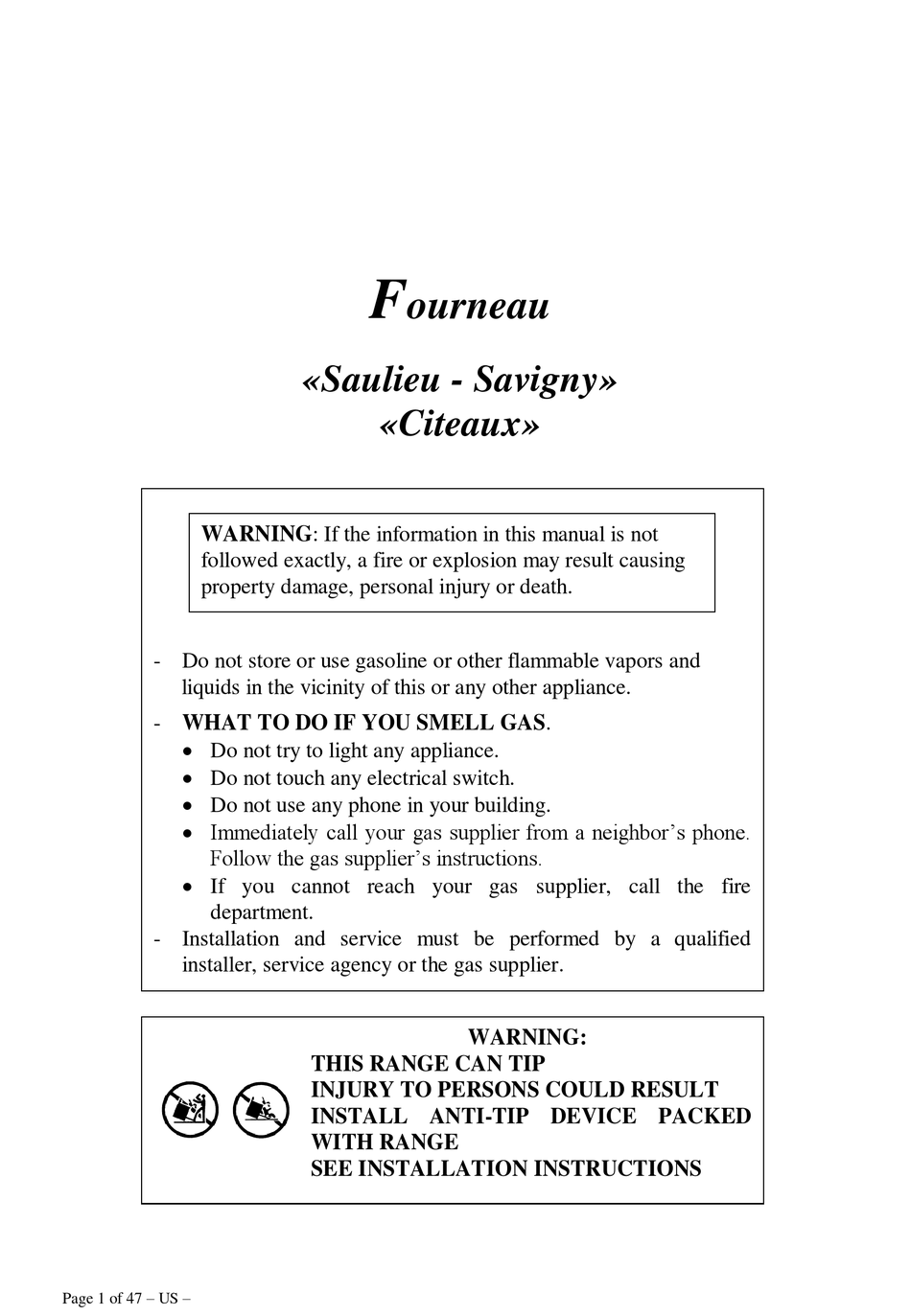

WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or death.
- Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS.
Do not try to light any appliance.
Do not touch any electrical switch.
Do not use any phone in your building.
Immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
If you cannot reach your gas supplier, call the fire
department.
- Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
Page 1 of 47 – US –
F
ourneau
«Saulieu - Savigny»
«Citeaux»
WARNING:
THIS RANGE CAN TIP
INJURY TO PERSONS COULD RESULT
INSTALL ANTI-TIP DEVICE PACKED
WITH RANGE
SEE INSTALLATION INSTRUCTIONS
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Lacanche SAULIEU
Summary of Contents for Lacanche SAULIEU
- Page 1 «Saulieu - Savigny» «Citeaux» WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. - Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- Page 2 Page 2 of 47 – US –...
-
Page 3: Fig. 1
GENERAL MANUAL SAULIEU – SAVIGNY - CITEAUX Citeaux with hob option or left hand side, or hob Citeaux with hob option options on left and right on right hand side or hand side without hob option 900 mm* 35’’ 7/16 768 mm* Fig. - Page 4 GENERAL MANUAL SAULIEU – SAVIGNY - CITEAUX Savigny with or without hob option on right hand side 900 mm* 35’’ 7/16 768 mm* Fig. 3 Savigny with electric oven 399 mm* 340 mm* ’’ 1105 mm* Savigny with gas oven...
- Page 5 GENERAL MANUAL SAULIEU – SAVIGNY - CITEAUX 460 mm Citeaux with gas 440 mm oven 750 mm 60 mm ’’ Citeaux with electric oven CITEAUX Fig. 6 460 mm Saulieu with gas oven 350 mm 440 mm 60 mm ’’...
- Page 6 CITEAUX (Figures 1, 2, 5 & 6), SAVIGNY (Figures 2, 3 & 8) or SAULIEU (Figures 2, 4, 7 & 9) plate warmers. The work surfaces adjacent to the cooking surfaces are designed to accommodate one of the optional units in the LACANCHE range or to be used as a worktop.
-
Page 7: Table 1
GENERAL MANUAL SAULIEU – SAVIGNY - CITEAUX Shipment-Packaging Unpack and check the appliance is in good condition. In case damage, note any reservations on the delivery note and confirm them within 48 hours by registered letter with confirmation of delivery to the carrier. - Page 8 Page 8 of 47 – US –...
- Page 9 Saulieu « » Savigny « » Citeaux « » INSTALLER'S MANUAL Appliances must be installed in a workmanlike manner in accordance with the instructions in this manual and locally applicable regulations. This manual will be handed over to the user after installation.
- Page 10 Page 10 of 47 – US –...
- Page 11 INSTALLER’S MANUAL SAULIEU – SAVIGNY - CITEAUX Cabinet preparation Gas connection on range J Savigny/ Saulieu J1 Citeaux Place electrical and gas Electrical stub-out in this area connection on range Fig. 10 mm 762-914 330 1110 1510 ’’ 30-36 ...
-
Page 12: Fig. 12
INSTALLER’S MANUAL SAULIEU – SAVIGNY - CITEAUX Recommended to be installed under an exhaust hood. In the commonwealth of Massachusetts, the appliance must be installed by a licensed plumber or gas fitter. Do not install this unit near combustible walls, partitions,... - Page 13 INSTALLER’S MANUAL SAULIEU – SAVIGNY - CITEAUX Remove the pan supports and burners. Unscrew the screw(s) C on burner UF or T (Figures 13 and 14). Pull and raise the top after having loosened the 2 screws D (Fig. 15), wedge the cooking surface.
- Page 14 INSTALLER’S MANUAL SAULIEU – SAVIGNY - CITEAUX Clé de 12 In case of use with a gas other than that for which the Wrench 12 ( appliance was initially set up, it is crucial to replace the orifices and modify the adjustments as defined below.
-
Page 15: Fig. 19
INSTALLER’S MANUAL SAULIEU – SAVIGNY - CITEAUX Adjustment of reduced flowrate of surface burners (Figure 23): After connection or change of gas, it is crucial to modify this adjustment. - Remove the control knob. Light the burner, adjust to minimum setting, then use a small screwdriver to set the adjusting screw J. - Page 16 INSTALLER’S MANUAL SAULIEU – SAVIGNY - CITEAUX Oven orifice: Fig. 28 Remove the base, CAUTION: when refitting, place the base underneath the groove on the fascia (Figures 18 and 19). Remove the oven burner. Fig. 22 Disconnect the connection piece, unscrew screw M on the orifice holder (Figure 22).
- Page 17 INSTALLER’S MANUAL SAULIEU – SAVIGNY - CITEAUX ELECTRICAL ALL WORK ON OR REPAIR OF AN APPLIANCE MUST BE CARRIED OUT BY A QUALIFIED INSTALLER. IMPORTANT THE APPLIANCE WHEN INSTALLED, MUST BE ELECTRICALLY GROUNDED IN ACCORDANCE WITH THE LOCAL CODES OR The National Electrical Code, ANSI/NFPA 70-1996 or latest edition.
- Page 18 INSTALLER’S MANUAL SAULIEU – SAVIGNY - CITEAUX Fig. 33 Fig. 34 Fig. 35 BACK SPACER VENT FITTING: It is mandatory to mount the back spacer vent R to the wall supplied with the appliance. Screw the 2 brackets S to the wall according to figures 36, 37 and 38 (screws not supplied), then fit the back spacer vent onto these brackets by using the washers and nuts supplied with the range.
- Page 19 INSTALLER’S MANUAL SAULIEU – SAVIGNY - CITEAUX Figure 37 Figure 36 Figure 38 Page 19 of 47 – US –...
- Page 20 INSTALLER’S MANUAL SAULIEU – SAVIGNY - CITEAUX SERVICE INSTRUCTIONS: - Lubricating gas valve. If the gas taps tends to stick slightly, you may follow this procedure: 1 - Shut off the valve and / or the main electrical supply of the unit.
- Page 21 INSTALLER’S MANUAL SAULIEU – SAVIGNY - CITEAUX GAS CIRCUIT DIAGRAMME Designation Part number Burner cap 1,5 kW 65.330004 Burner cap 3,0 W 65.330005 Burner cap 4,0 kW 65.330006 Burner cap 5,0 kW 65.330007 Burner bowl 1,5 kW 65.640008 Burner bowl 3,0 kW 65.640004...
- Page 22 INSTALLER’S MANUAL SAULIEU – SAVIGNY - CITEAUX 65.39895 65.226006 1,5 kW = 65.064007 3,0 kW = 65.064007 4,0 kW = 65.064007 5,0 kW = 65.064007 65.080005 65.033018 65.103033 65.103029 + 4 screws 65.129101 + 4 disc 65.30932 Page 22 of 47 – US –...
- Page 23 INSTALLER’S MANUAL SAULIEU – SAVIGNY - CITEAUX Détail A: Détail B: 65.103032 (LP) 65.103031 (NG) 65.103033 Page 23 of 47 – US –...
- Page 24 INSTALLER’S MANUAL SAULIEU – SAVIGNY - CITEAUX Top burners (code A,E,5,N,D,T,I,C,01,02,03,0O,0T) / gas grill (code 0Y) 120 V 60 Hz Item n° Designation Top burner electrode 65.226006 Switch 65.103030 Page 24 of 47 – US –...
- Page 25 INSTALLER’S MANUAL SAULIEU – SAVIGNY - CITEAUX Top burners + gas oven 120 V (code G) Top burners + gas oven 120 V (code G) Top burners + gas oven 120 V (code G) 120 V 60 Hz 120 V 60 Hz...
- Page 26 INSTALLER’S MANUAL SAULIEU – SAVIGNY - CITEAUX heating cupboard (code E) 240 V 60 Item n° Designation Part number Thermostat 65.28195 Heating element 65.30624 Selector 65.28979 Red Lamp 65.231004 Orange Lamp 65.231005 Three pole limiting thermostat 65.39942 Page 26 of 47 – US –...
- Page 27 INSTALLER’S MANUAL SAULIEU – SAVIGNY - CITEAUX Vertical Electric oven (code Z) 240 V 60 Hz 240 V 60 Hz * Without oven * Without oven lamp for code Z lamp for code Z Item n° Designation limiting thermostat 65.224003 regulating thermostat 65.53670...
- Page 28 INSTALLER’S MANUAL SAULIEU – SAVIGNY - CITEAUX Convection & Static Electric oven (code D) 240 V 60 Hz arco3960 arco3960 Item n° Designation Three pole limiting thermostat 65.39942 Oven regulating thermostat 65.224010 Contactor 65.223001 Thermostat switch 65.52194 Inverter 65.222012 Roof heating element 65.211030...
- Page 29 Page 29 of 47 – US –...
- Page 30 LACANCHE « » USER'S MANUAL IMPORTANT Provide adequate air supply during use of the appliance. Provide adequate clearances for servicing and proper operation by not obstructing front or side of appliances. WARRANTY The warranty is stated on the sales contract.
- Page 31 Page 31 of 47 – US –...
- Page 32 INSTALLER’S MANUAL SAULIEU – SAVIGNY - CITEAUX SAFETY INSTRUCTIONS If the range is to be installed on an area covered with linoleum or any other floor covering, make sure that the floor covering can withstand 90 F (65°C) above room temperature without warping, shrinking or discoloring. Do not install the range over carpeting.
- Page 33 USER’S MANUAL SAULIEU – SAVIGNY - CITEAUX AS SURFACE BURNERS ighly valued by chefs because of their fast heating and ease of use, gas flame burners have always been traditional heat sources for cooking in large kitchens. Other heat sources have appeared in recent years but just as many users still prefer gas.
- Page 34 USER’S MANUAL SAULIEU – SAVIGNY - CITEAUX Turn on main gas supply to range. - Depress handle & rotate burner valve handle anti-clockwise past the “IGN” position. - Depress handle fully and wait for the burner’s thermocouple to heat up. Hold for 15-20 seconds after flame has lit. Igniters will spark (click) while handle is pressed.
- Page 35 USER’S MANUAL SAULIEU – SAVIGNY - CITEAUX EATING PLATE DANGER Temperature may exceed 300 °C/ 572 °F. Warn potential users of hazards involved. he heating plate is a cast iron plate heated by a high-power gas burner. It can be used as a work surface and several saucepans can be placed on it at the same time.
- Page 36 USER’S MANUAL SAULIEU – SAVIGNY - CITEAUX The traditional heating plate is coated with a black enamel coating. No maintenance or pre-treatment is necessary. Not a direct cooking surface. Turn on main gas supply to range. - Depress handle & rotate burner valve handle anti-clockwise past the “IGN”...
- Page 37 USER’S MANUAL SAULIEU – SAVIGNY - CITEAUX BEFORE USING OVENS n order to achieve optimum use and maximum benefit from your oven, please read the following hints carefully in order to familiarise yourself with the principles of oven cooking. n oven cooks and heats by using a heat source which is generally located inside the oven. This heat source heats the air and then the entire oven.
- Page 38 USER’S MANUAL SAULIEU – SAVIGNY - CITEAUX AS OVEN he gas oven is a high-performance oven. Some chefs are convinced that gas ovens do not dry out dishes during cooking. The results obtained are excellent and energy consumption is lower! as ovens are ideal for slow cooking, for instance dishes cooked in earthenware dishes (terrines, gratins, ragouts, etc.) as well as for meats that require fast cooking and need to be sealed (loin of lamb) or even roasts which do not...
- Page 39 USER’S MANUAL SAULIEU – SAVIGNY - CITEAUX he gas oven is supplied equipped with a shelf and roasting pan as standard. he oven burner is controlled by a thermostat valve. A thermocouple safety cut-out switches off the gas supply to the thermostat valve if the burner is accidentally extinguished.
- Page 40 USER’S MANUAL SAULIEU – SAVIGNY - CITEAUX AN-ASSISTED ELECTRIC OVEN 305 x 405 x 400 The electric fan oven is a real oven whose special shape means that it can be used to cook several foods at the same time «higher» than in a conventional oven, such as 2 chickens.
- Page 41 USER’S MANUAL SAULIEU – SAVIGNY - CITEAUX LECTRIC MULTIFUNCTION OVEN his oven is switchable between two functions: a static electric function and a forced convection electric function. he volume of the multifunction oven is 68 L / 2.40 ft o select the operating function it is necessary to make sure the switch is;...
- Page 42 USER’S MANUAL SAULIEU – SAVIGNY - CITEAUX ELECTRIC OVEN lectric ovens are simple to use and are ideal for cooking all usual dishes. he electric oven has three heating elements and can be used as both an oven and a grill.
- Page 43 USER’S MANUAL SAULIEU – SAVIGNY - CITEAUX seful hints: - Use pans with high edges for roasting in order to minimise grease splashes. - When cooking fruit tarts, place the drip tray at the bottom of the oven in order to collect any spillages.
- Page 44 USER’S MANUAL SAULIEU – SAVIGNY - CITEAUX ELECTRIC FORCED CONVECTION OVEN he forced convection oven is a recent development in cooking techniques. Its principle is straightforward: air circulates over a heating element, is heated when it comes into contact with the element and the heat thus obtained in the oven is used to cook food.
- Page 45 USER’S MANUAL SAULIEU – SAVIGNY - CITEAUX Useful hints: Before using the oven for the first time, it is advisable to switch it on without anything in it at the maximum thermostat position for 1/2 hour in order to eliminate the smell of fumes due to the composition of the Rockwool used to insulate the oven and residues from mineral oil applied during manufacture.
- Page 46 USER’S MANUAL SAULIEU – SAVIGNY - CITEAUX OT CUPBOARD The plate warmer is used to keep dishes hot and allow greater flexibility when organising your meals. Its principle is straightforward and involves using a heating element to keep your plate warmer heated at the desired temperature.
- Page 47 USER’S MANUAL SAULIEU – SAVIGNY - CITEAUX CLEANING BEFORE ANY CLEANING WORK, CLOSE THE GAS SUPPLY AND/OR ISOLATE FROM THE MAINS SUPPLY Oven: Use no abrasive cleaners on the oven walls. Special oven cleaning foams or gels (i.e. Easy-Off) may be used but should be kept away from the heating elements.
