Lacanche CHAGNY Installer Manual

Hide thumbs Also See for CHAGNY:

Advertisement

Quick Links

Download this manual See also: User Manual
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or death.
- Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS.
 Do not try to light any appliance.
 Do not touch any electrical switch.
 Do not use any phone in your building.
 Immediately call your gas supplier from a neighbours'
phone. Follow the gas supplier's instructions.
 If you cannot reach your gas supplier, call the fire
department.
- Installation and service must be performed by a qualified
installer, service agency or the gas supplier.

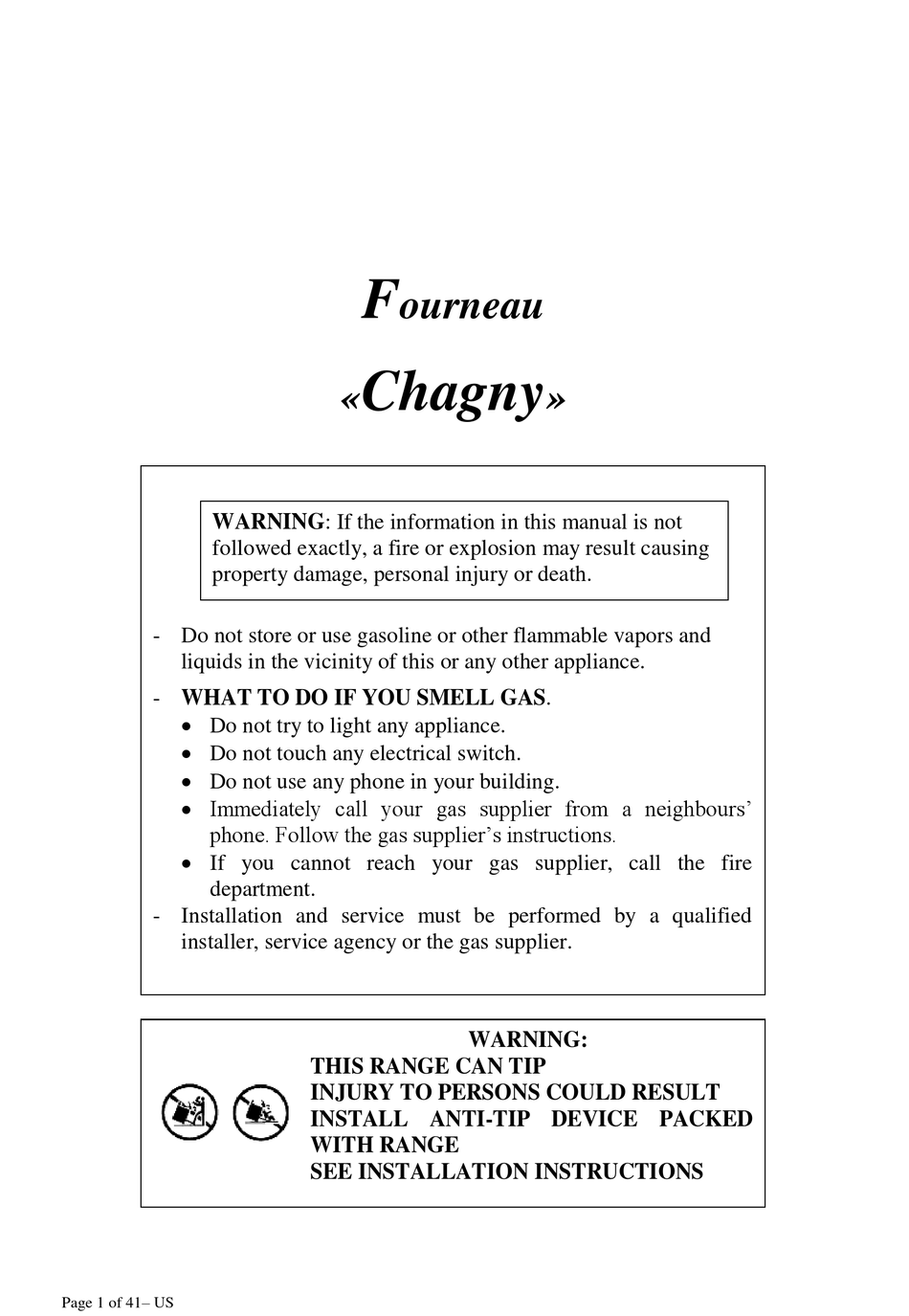

Page 1 of 41– US
F
ourneau
Chagny
«
WARNING:
THIS RANGE CAN TIP
INJURY TO PERSONS COULD RESULT
INSTALL ANTI-TIP DEVICE PACKED
WITH RANGE
SEE INSTALLATION INSTRUCTIONS
»

Advertisement

loading
Need help?

Need help?

Do you have a question about the CHAGNY and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lacanche CHAGNY

Summary of Contents for Lacanche CHAGNY

  • Page 1 Chagny « » WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. - Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
  • Page 2 Page 2 of 41– US...
  • Page 3 GENERAL MANUAL CHAGNY ’’ 1000 mm - 39 900 mm* 35’’ 768 mm* 7/16 399 mm* ’’ ’’ 958 mm-37 ’’ Adjustable feet 20 mm- ’’ 1405 mm - 55 768 mm* 900 mm* 35’’ 7/16 505 mm ’’ 325 mm ’’...
  • Page 4 GENERAL MANUAL CHAGNY ’’ 1805 mm - 71 768 mm* 900 mm* 505 mm 35’’ 7/16 ’’ 325 mm ’’ 399 mm* ’’ Fig. 1c ’’ 22 mm-1 ’’ 958 mm-37 22 mm-1 ’’ 225 mm ’’ 60 mm ’’...
  • Page 5 5-burner cook’s stove, 3 ovens (Figure 2). The work surfaces adjacent (CHAGNY 1400 & 1800, figures 2a, 2b, 2c & 2d) to the cooking surfaces are designed to accommodate one of the optional units in the LACANCHE range or to be used as a worktop (Figures 1, 1a,1b, 1c, 1d &...
  • Page 6 GENERAL MANUAL CHAGNY Static electric oven (option): ’’) x 465 mm (18 ’’) x 265 mm (10 ’’). 3 shelf level Enamelled sheet metal. Dimensions L x D x H: 400 mm (15 with 70 mm spacing, 55 liters / 1.98 ft .Thermostatically controlled roof and base heating elements, safety cut-out by safety...
  • Page 7 Chagny « » INSTALLER'S MANUAL Appliances must be installed in a workmanlike manner in accordance with the instructions in this manual and locally applicable regulations. This manual will be handed over to the user after installation. Page 7 of 41– US...
  • Page 8 Page 8 of 41– US...
  • Page 9 762-914 330 1005 ’’ 30-36  Cabinet preparation (CHAGNY 1400) Gas connection on Place electrical and gas Electrical connection Fig. 3b range stub out in this area on range mm 762-914 330 1410 ’’...
  • Page 10 INSTALLER’S MANUAL CHAGNY  Cabinet preparation (CHAGNY 1400 – w/o right gas cooktop option) Gas connection on range Electrical connection Place electrical and gas Fig. 3c on range stub out in this area mm 762-914 330 1410 ’’ 30-36 36 21...
  • Page 11 INSTALLER’S MANUAL CHAGNY  Cabinet preparation (CHAGNY 1800) Gas connection Gas connection on on range range Place electrical and gas Electrical connection Fig. 3 d stub out in this area on range I (a) Without right gas cooktop option mm 762-914 330 1810 ’’...
  • Page 12 INSTALLER’S MANUAL CHAGNY  Recommended to be installed under an exhaust hood.  In the commonwealth of Massachusetts, the appliance must be installed by a licensed plumber or gas fitter.  Do not install this unit near combustible walls, partitions,...
  • Page 13 Unscrew the screws C near the burners’ openings (Figures 6 and 7). Pull and raise the top after having loosened the 2 screws D (Fig. 8, CHAGNY and 9, CHAGNY 1400-1800), wedge the cooking surface. A pressure regulator (fig. 10) is located in the right rear corner under the hob, to gain access to the pressure regulator, remove the top.
  • Page 14 INSTALLER’S MANUAL CHAGNY In case of use with a gas other than that for which the appliance was initially set up, it is crucial to replace the orifices and modify the adjustments as defined below. Clé de 12 Wrench 12 (...
  • Page 15 INSTALLER’S MANUAL CHAGNY  Adjustment of reduced flow rate of surface burners (Figure 17) : After connection or change of gas, it is crucial to modify this adjustment. - Light the burner; adjust to minimum setting, remove the control knob, move/rotate the ignition switch to expose the adjustment screw J and then use a small screwdriver to set the screw.
  • Page 16 INSTALLER’S MANUAL CHAGNY  Pilot burner orifice: Table 5 Change the pilot burner orifice Ø Pressure Gas oven Pilot burner Gas pilot LP: 65103032 Natural gas 6" WC 1.40 0.45 Gas pilot NG: 65103031 10" WC 0.95 0.25 L.P. propane ...
  • Page 17 INSTALLER’S MANUAL CHAGNY ELECTRICITY  ALL WORK ON OR REPAIR OF AN APPLIANCE MUST BE CARRIED OUT BY A QUALIFIED INSTALLER. IMPORTANT  THE APPLIANCE WHEN INSTALLED, MUST BE ELECTRICALLY GROUNDED IN ACCORDANCE WITH THE LOCAL CODES OR The National Electrical Code, ANSI/NFPA 70-1996 or latest edition.
  • Page 18 INSTALLER’S MANUAL CHAGNY Fig. 27 Fig. 28 Fig. 29 BACK SPACER FITTING: It is mandatory to mount the back spacer vent R (or equivalent) to the wall supplied with the appliance. Screw the 2 brackets to the wall according to figures 30, 31 and 32 (screws not supplied), then fit the back spacer vent onto these brackets by dropping the back lip over the top of the brackets.
  • Page 19 INSTALLER’S MANUAL CHAGNY Figure 30 Figure 31 Fig. 32 Fig 33 Page 19 of 41– US...
  • Page 20 INSTALLER’S MANUAL CHAGNY SERVICE INSTRUCTIONS: - Lubricating gas valve. If the gas taps tends to stick slightly, you may follow this procedure:  1 - Shut off the valve and / or the main electrical supply of the unit. ...
  • Page 21 INSTALLER’S MANUAL CHAGNY GAS CIRCUIT DIAGRAMME Designation Part number Burner cap 1,5 kW 65.330004 Burner cap 3,0 W 65.330005 Burner cap 4,0 kW 65.330006 Burner cap 5,0 kW 65.330007 Burner bowl 1,5 kW 65.640008 Burner bowl 3,0 kW 65.640004 Burner bowl 4,0 kW 65.640005...
  • Page 22 INSTALLER’S MANUAL CHAGNY 65.39895 65.226006 GAS CIRCUIT DIAGRAMME 1,5 kW = 65.064007 3,0 kW = 65.064007 4,0 kW = 65.064007 5,0 kW = 65.064007 65.080005 65.033018 65.103033 65.103029 65.5111 + 4 screws 65.129101 + 4 disc 65.30932 Page 22 of 41– US...
  • Page 23 INSTALLER’S MANUAL CHAGNY Détail A : Détail B : 65.103032 (LP) 65.103031 (NG) 65.103033 65.103033 65.103029 Page 23 of 41– US...
  • Page 24 INSTALLER’S MANUAL CHAGNY ELECTRIC CIRCUIT DIAGRAMMES LG 1053 G LG 1053 LG 1053 LG 1053 LG 1053 LG 1053 GCT + Grill Item n° Designation Part number Three pole limiting 65.224003 65.224003 65.224003 65.224003 65.224003 thermostat Oven thermostat 65.53670 65.53670 65.53670...
  • Page 25 INSTALLER’S MANUAL CHAGNY D US 10 01 C 0T U R G 1 -- Page 25 of 41– US...
