  • Page 1 From Eye to Insight Leica FL560 for M530 User Manual 10 745 752– Version 03...
  • Page 2 The information provided by this manual is directly related to the operation of the equipment. Medical decision remains the responsibility of the clinician. Leica Microsystems has made every effort to provide a complete and clear user manual highlighting the key areas of product use. Should additional information regarding the use of the product be required, please contact your local Leica representative.

  • Page 3: Table Of Contents

    Operating Range Limits for FL560 Pre-operation checklist FL560 test card functional areas FL560 test card pre-operational check Care and maintenance What to do, if… General Status messages Electrical Common troubleshooting steps Leica FL560 for M530 / Ref. 10 745 752 / Version 03...

  • Page 4: Introduction

    Product identification In this user manual the functions of the Leica FL560 for M530 are described. For information and description of the Leica surgical The model and serial numbers of your product is located on the side microscope, please refer to the user manual of the particular and top of the Leica FL560 for M530 filter module.

  • Page 5: Safety Notes

    NOTE Appearance of GUI screenshots The type label is located on the side of the Leica FL560 for M530 The graphical user interface (GUI) screenshots are for reference only filter module. and can vary in function of the configured options and different surgical microscopes.

  • Page 6: Description

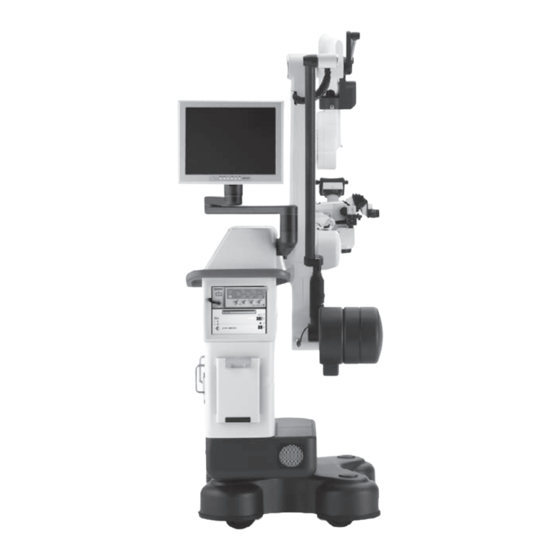

    Leica FL560 user. Design The Leica FL560 for M530 is an accessory for the Leica M530 surgical microscope. 4.2.1 Optics carrier with Leica FL560 for M530...

  • Page 7: Controls

    All microscopes Magni- Working Magni- fiation distance fiation Selected brakes Selected brakes Assignment in the factory setting 1 Magnification 2 4-function joystick 3 Working distance Leica FL560 for M530 / Ref. 10 745 752 / Version 03...

  • Page 8: Preparation Before Surgery (Provido, M530 Ohx, M530 Oh6, Arveo)

    Tap the "Presets" button (4). The available presets for the microscope are displayed: Select the "Fluorescence FL560" user preset button (2). Select the "Fluorescence FL560" user preset button (5). Leica FL560 for M530 / Ref. 10 745 752 / Version 03...
  • Page 9 Preparation before surgery (PROVIDO, M530 OHX, M530 OH6, ARveo) NOTE The FL560 user presets are only available if the FL560 accessory is enabled in the accessory list of your Leica Surgical Microscope. If not, please get in contact with your local Leica Service.
  • Page 10 Preparation before surgery (PROVIDO, M530 OHX, M530 OH6, ARveo) Switch the Fluorescence FL560 mode "ON” by using the predefined "ON/OFF button (1) on the left handle. no function Left Handle FL560 mode on/o function no function Press the joystick to the left: The main page for "Fluorescence FL560”...

  • Page 11: Modifying The Fl560 User Preset

    NOTE Do not change the settings or edit the user list when the microscope is in direct use on a patient. The FL560 mode is automatically stopped when modifying the settings. Leica FL560 for M530 / Ref. 10 745 752 / Version 03...

  • Page 12: Get Current Settings

    Tap the "Show Settings” button ((1) or (2) depending on your microscope). The "User Settings > Fluorescence FL560” page is displayed. On this page you can find several tabs with information on the current settings of the Leica surgical microscope system.

  • Page 13: Creating Your Own Fl560 User

    You can create and save your own FL560 settings according to your preferences. Before creating your own FL560 user follow the steps in chapter 5.1. Tap the quick access "Menu" button ((1) or (2) depending on your microscope) once you are on the main page for FL560: Menu button (PROVIDO)

  • Page 14: Example "Handle Left" Assignment

    In the left selection field ((1) or (3)) scroll to the function group "Fluorescence” by using the arrowheads (5). Select the desired "Fluorescence FL560” function you wish to assign. In this example it would be: "FL560 Mode On/Off". Click on a free or assigned caption of the desired button on the handle to assign the selected function to it.

  • Page 15: Example "Fl" Settings

    NOTE Please note that a factory limitation is applied to the working distance (see 7.1) as soon as the FL560 mode is activated. Hence, if working distance (WD) limitation in White light mode is switched off and the working distance is above this limit (see 7.1) when switching to FL560 mode, the working distance will be reduced and the picture will get out of focus.

  • Page 16: Save User Settings

    Select an available location in the user list at which you want to store your settings. Leica FL560 for M530 / Ref. 10 745 752 / Version 03...

  • Page 17: Preparation Before Surgery (Arveo 8)

    Please note that the "passcode" has to be typed twice to confirm it. Select a surgeon profile for which the FL560 profile has been already been defined at the "Select surgeon” page: If not, you have to create a new surgeon profile.
  • Page 18 Click on the _FL560 profile (1) and confirm with "OK" (2) Click on the surgeon profile you want to copy and confirm The dialog box is closed and the FL560 profile is now copied with "OK" (2). into the surgeon's profile and allows for activation of the...
  • Page 19 6.2.3 Creating a brand new profile In both cases (copying FL560 preset or copying an existing surgeon profile), after pressing "Create New", the live screen is displayed. To create a new profile, you must first follow the steps described in You can see the surgeon profile's name on the top right corner of 6.2.1.
  • Page 20 Tap on the "User Inputs" button (2) to open the "User Inputs" menu. The "User Inputs" menu is displayed: Tap "Handles" button (3) to show the "Left Handle" settings. Leica FL560 for M530 / Ref. 10 745 752 / Version 03...
  • Page 21 When you are on the handle configuration page, click the button you want to assign for the activation of the FL560 mode. This will display the "Select function" popup window for the selected button: Tap the "Back"...
  • Page 22 Preparation before surgery (ARveo 8) The live screen is displayed: Leica FL560 for M530 / Ref. 10 745 752 / Version 03...
  • Page 23 When choosing this preset profile, a popup will appear to notify the user about the profile limitations. NOTE The preset can be used to quickly enable the FL560 ON/OFF functionality on the microscope. This preset profile can be used and modified but any changes to the profile settings will not be stored, therefore with each new start up, the default profile settings will be restored.

  • Page 24: Modifying The Fl560 Settings

    The Live Screen is displayed. NOTE Do not change the settings or edit the user list when the microscope is in direct use on a patient. The FL560 mode is automatically stopped when modifying the settings. Tap the "Fluorescence Settings" icon (3).

  • Page 25: Activating The Fl560 Through The Gui

    NOTE There is a default limitation to the WD and Mag when using the FL560 mode. If the WD and Mag are above this limit before You can activate the FL560 Mode directly through the GUI. Tapping switching to FL560 mode, the WD and Mag will be reduced upon the mode icon (1) a menu of available fluorescence modes is switching to FL560 mode and the picture will get out of focus.

  • Page 26: Operation

    Switch on the microscope. Switch on the illumination. Check the FL560 illumination. Select an FL560 user. 5 Color samples (9) for Leica FL560 mode and white light color Check visually whether the microscope illumination has balancing switched from white to cyan light.
  • Page 27 If you do not observe good color reproduction refer to Assessment criteria for Leica FL560 functionality check: chapter 9.4 in this user manual or get in contact with your • In FL560 mode the intensity fields between 0 and 6 should be local Leica Customer Service. visible.

  • Page 28: Fl560 Test Card Pre-Operational Check

    Do not use the Leica FL560 for M530 test card in the sterile field (of surgical procedure). Do not use the Leica FL560 for M530 test card if it is expired. FL560 Test Card Switch to FL560 mode by pressing the FL560 On/Off button on Please prepare the FL560 functionality test as follows: the handle.

  • Page 29: Care And Maintenance

    The status LED on the swing arm of the particular surgical maintenance). microscope is illuminated in cyan if the FL560 mode is active (on all surgical microscopes), and white if switched back to white- The Leica FL560 for M530 is cleaned together with the light mode (PROVIDO and M530 OHX only.

  • Page 30: What To Do, If

    Check the life time of the bulb(s) and replace the bulb(s) if the efficiency is too low. (please check with the FL560 Card as described in chapter 7.3.1 in this document) Leica FL560 for M530 / Ref. 10 745 752 / Version 03...
  • Page 31 ARveo 8 - defective lamp 2 alert Replace the lamp. Exchange the defective bulb with a new one before your next case. Leica FL560 for M530 / Ref. 10 745 752 / Version 03...

  • Page 32: Electrical

    • During activation of the FL560 PROVIDO will beep 3 times and the "Lamp Change" reminder will pop PROVIDO Lamp Change reminder message Switch to lamp #1 and confirm this message. Leica FL560 for M530 / Ref. 10 745 752 / Version 03...

  • Page 33: Common Troubleshooting Steps

    Dark in-vivo FL or lower number of Insufficient illumination intensity Check the illumination intensity: • verify that the "Brightness FL560" is set to 100% - see active/visible FL areas on the test card, in the eyepiece and on the monitor chapter 5.6...
  • Page 34 500 mbar to 1060 mbar atmospheric pressure Transport –30 °C to +70 °C –86 °F to +158 °F 10 % to 100 % rel. humidity 500 mbar to 1060 mbar atmospheric pressure Leica FL560 for M530 / Ref. 10 745 752 / Version 03...
  • Page 35 Manufacturer's declaration of electromagnetic compatibility (EMC) 11 Manufacturer's declaration of electromagnetic compatibility (EMC) For the EMC declaration of the Leica FL560 for M530, please refer to the user manual of the particular surgical microscope. Leica FL560 for M530 / Ref. 10 745 752 / Version 03...
  • Page 36 10 745 752en/03 • Copyright © by Leica Microsystems (Schweiz) AG, Medical Division, CH-9435 Heerbrugg, 2021 • 09.2021 – • LEICA and the Leica Logo are registered trademarks of Leica Microsystems IR GmbH. Leica Microsystems (Schweiz) AG · Max Schmidheiny Strasse 201 · CH-9435 Heerbrugg T +41 71 726 3333 ·...
