- Page 1 Leica FL560 for M530 User Manual 10 745 752 - Version 01...
- Page 2 The information provided by this manual is directly related to the operation of the equipment. Medical decision remains the responsibility of the clinician. Leica Microsystems has made every effort to provide a complete and clear user manual highlighting the key areas of product use. Should additional information regarding the use of the product be required, please contact your local Leica representative.
-
Page 3: Table Of Contents
Using the Leica FL560 for M530 Controlling the FL560 functions Care and maintenance What to do, if… General Leica FL560 for M530 Technical data Compatibility Ambient conditions Manufacturer's declaration of electromagnetic compatibility (EMC) Leica FL560 for M530 / Ref. 10 745 752 / Version 01... -
Page 4: Introduction

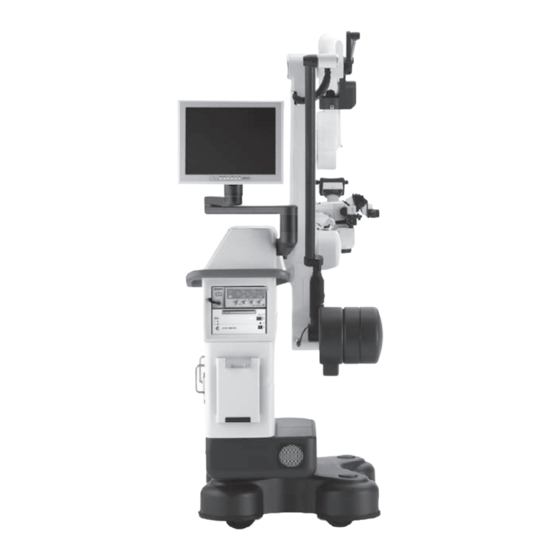

The Leica FL560 for M530 is an accessory for Leica surgical representative for availability. microscope systems. in this user manual the functions of the Leica FL560 for M530 are described. For information and description of the Leica surgical Product identification microscope, please refer to the user manual of the particular surgical microscope. -
Page 5: Safety Notes
LEICA FL560 for M530 user manual of the Leica surgical microscopes, and in particular the safety notes. The type label is located on the side of the Leica FL560 for M530 Intended use filter module. The Leica FL560 allows the fluorescence observation of fluorophores with an excitation peak between ~460 nm and... -
Page 6: Description
Leica FL560 user. Design The Leica FL560 for M530 is an accessory for the Leica M530 surgical microscope. 4.2.1 Optics carrier with Leica FL560 for M530... - Page 7 Handle presets for Flurescence FL560 no function FL560 mode X– on/o function no function Y– Magni- Working Magni- cation distance cation Selected brakes Selected brakes Leica FL560 mode on/off Leica FL560 for M530 / Ref. 10 745 752 / Version 01...
-
Page 8: Preparation Before Surgery
The selected user preset is displayed in the top line. Main menu currend settings are displayed Either "White Light" or "FL560" is displayed on the right side. In the Main menu click on the "Presets" button. The Leica FL560 user presets are only available if the Leica FL560 accessories are enabled in the accessory list of your Leica Surgical Microscope. - Page 9 Click on the "Show Settings" button. Select the "Handle Left" or "Handle Right" tab. Select "New User". Open the "Handle Left" or "Handle Right" tab to assign FL560 functions to the handle. You see an overview with which buttons of the selected handle the FL560 functions can be operated.
- Page 10 Preparation before surgery Brightness Open the "FL" tab to set the brightness in FL560 mode to an adequate level. Decide if the working distance limitation in White light mode should be switched on (default) or off. When the working distance limitation in White light mode...
-
Page 11: Adjustments On The Leica Ohx Control Unit
Leica • In FL560 mode limitation of working distance and Surgical Microscope. If not, ask the Leica Service to do so. magnification is always active. Leica FL560 for M530 / Ref. 10 745 752 / Version 01... - Page 12 Select the "Handle Left" or "Handle Right" tab. "User Settings". Select "New User". Open the "Handle Left" or "Handle Right" tab to assign FL560 functions to the handle. You see an overview with which buttons of the selected handle the FL560 functions can be operated.
-
Page 13: Pre-Operation Checklist
Check optical accessories for cleanliness. Brightness Balancing Open the "FL" tab to set the brightness in FL560 mode to an Balance the microscope in accordance with adding or removing adequate level. components (see the user manual of the particular surgical microscope). -
Page 14: Operation
FL560 user. The status LED on the swing arm of the particular surgical microscope is illuminated in cyan if the FL560 mode is active, and white if switched back to white-light mode. If the illumination fails in the white-light or FL560 mode, change to the second illumination source of the illumination unit. -
Page 15: What To Do, If
500 mbar to 1060 mbar atmospheric pressure Transport –30 °C to +70 °C –86 °F to +158 °F 10 % to 100 % rel. humidity 500 mbar to 1060 mbar atmospheric pressure Leica FL560 for M530 / Ref. 10 745 752 / Version 01... -
Page 16: Manufacturer's Declaration Of Electromagnetic Compatibility (Emc)
Manufacturer's declaration of electromagnetic compatibility (EMC) 10 Manufacturer's declaration of electromagnetic compatibility (EMC) For the EMC declaration of the Leica FL560 for M530, please refer to the user manual of the particular surgical microscope. Leica FL560 for M530 / Ref. 10 745 752 / Version 01... - Page 17 Leica FL560 for M530 / Ref. 10 745 752 / Version 01...
- Page 18 +65 6773 0628 10 745 752en/01 • Copyright © by Leica Microsystems (Schweiz) AG, Medical Division, CH-9435 Heerbrugg, 2014 • Printed – I.2015 – Editing for printout by galledia • Subject to modifications. • LEICA and the Leica Logo are registered trademarks of Leica Microsystems IR GmbH.
