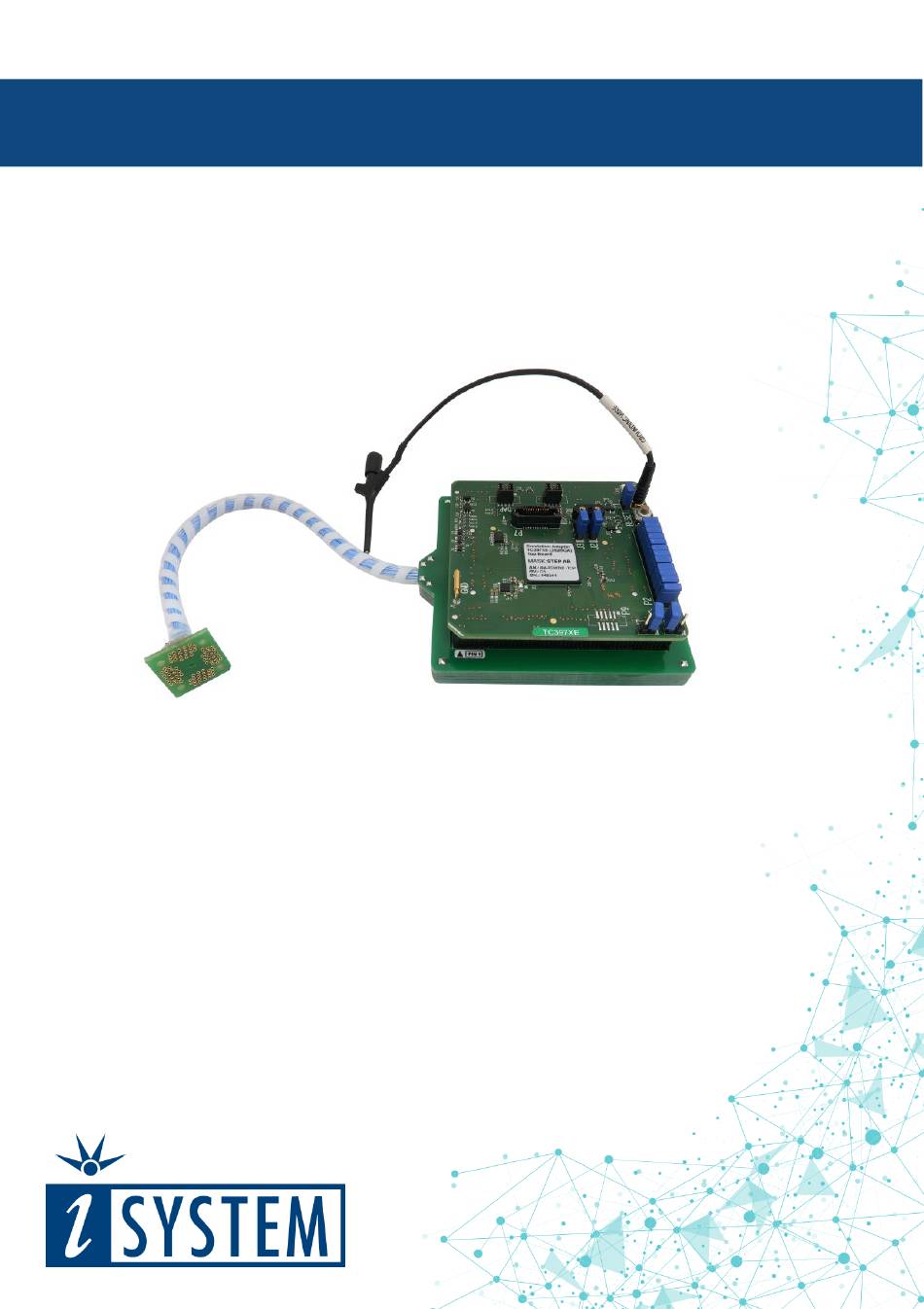

- Page 1 Infineon TC397XE Emulation Adapter V1.4 User Manual September 2022...
- Page 2 This document and all documents accompanying it are copyrighted by iSYSTEM AG and all rights are reserved. Duplication of these documents is allowed for personal use. In all other cases, written consent from iSYSTEM is required. iSYSTEM AG. All rights reserved.
-
Page 3: Table Of Contents
Contents Infineon TC397XE Emulation Adapter Package content ............................5 Adaptation packages content ....................................6 Operation ..............................7 Adaptation setup ..........................................8 Configuration ............................................9 Connectors ............................................12 Power supply package ........................................ 14 Standalone operation ........................................15 Measurement board ........................................16 Mechanical information ........................ -
Page 4: Infineon Tc397Xe Emulation Adapter
Furthermore, IOM6 accessories enable the synchronous capture of analog and digital signals in parallel to trace information. Hardware tools coupled with iSYSTEM winIDEA IDE enable reliable recording of program flow and data trace. The integrated measurement and visualization tool Analyzer provides a graphical presentation of execution time analysis and much more. -
Page 5: Package Content
Package content Infineon TC397XE Emulation Adapter is delivered with all components required for a standalone operation. Adaptation package for a specific Target board adaptation must be ordered separately. Infineon TC397XE Power supply package Emulation Adapter with Infineon Microcontroller Power converter... -
Page 6: Adaptation Packages Content
Adaptation packages content Conversion board connects between the TriCore TC397XE Emulation Adapter and the Solder part which is soldered on the Target board side. Target board Adaptation Conversion board Connecting part Extender (optional) Solder part TC397Xx IA292LFBGA- IA292LFBGA- TC387QP IEA-TC397XE-TC397 EXTENDER SOLDER TC3E7Qx... -
Page 7: Operation
Operation Device overview Emulation Adapter offers the following adaption setup: · IEA-TC397XE Emulation Adapter Top / Bottom side of the Emulation Adapter How to connect Emulation Adapter (Video Tutorial) How to connect iSYSTEM Hardware (Video Tutorial) -
Page 8: Adaptation Setup
Adaptation setup BGA Adaptation... -
Page 9: Configuration
Configuration J1: Target reset configuration Jumper J1 connects the Emulation Adapter reset line and the user target board reset line and is populated by default. Emulation Adapter also features a Reset push button (SW1). If having problems establishing the initial debug session with the Emulation Adapter, remove J1 and try again. - Page 10 Crystal socket Q1 schematics below: J4 & J5: GND connection points In case a good ground connection is required, connection points bridge J4 and pin J5 provide easy access to the emulation adapter GND potential. J6 & J7: VFLEX & VAREF VFLEX - If the target’s VFLEX pin isn’t exposed, set the jumper to the position J6 to connect VEXT from the target to power VFLEX.
- Page 11 VAREF - If the target’s VAREF2 pin isn’t exposed, set the jumper to the position J7 to connect VAREF1 from the target to power VARE2 Setting the jumper if VAREF2 is present on the device may brick the emulation or the target device.
-
Page 12: Connectors
DAP clock Optional 2nd Ground DAPE2 Data pin Not Connected DAPEN/DAP3 Output Ground Not Connected 10-pin DAPE pinout Signal Direction is described from the BlueBox perspective. iSYSTEM BlueBox supporting Infineon DAPE debug and trace interface connects to the P8 connector. - Page 13 Blue color marks the trace signals. Pin 18: TGO (AGBT Trigger out) is connected to the pin TP32.6. Before Revision C1 pin 18 was NC (Not Connected). iSYSTEM BlueBox solution supporting AGBT (Aurora GigaBit Trace) interface connects to the P7 connector.
-
Page 14: Power Supply Package
Power supply package A Power supply package, which is delivered with the Emulation Adapter, is required when: · The Emulation Adapter is used as a standalone device . · The target board doesn’t provide an accurate supply voltage. · The target board doesn’t provide sufficient current for the Emulation Adapter operation. The Power converter can supply either 3.3 V or 5 V. -
Page 15: Standalone Operation
Standalone operation Infineon TC397XE Emulation Adapter is delivered with all components required for a Standalone operation: Power supply Use enclosed IEA-PS Emulation Adapter Power converter and adapter. Clock source If user target’s crystal circuit microcontroller oscillator (if available) is not an adequate clock source, insert appropriate crystal into the Q1 socket, replace the default 10pF C7 and C8 capacitors when necessary and place jumpers J2 and J3 in 2-3 position. -
Page 16: Measurement Board
Measurement board With the Measurement board you gain easy access to all MCU pins respectively, because modern targets do not have accessible all the MCU pins / connected signals to connect with a measurement equipment (oscilloscope, logic analyzer). The Measurement board is optional and connects between the Emulation Adapter and the Conversion Board. -
Page 17: Mechanical Information
Mechanical information BGA Adaptation For ordering the correct amount of Extenders go to the Adaptation packages content chapter. Side view of the Emulation Adapter, one Extender and Solder part (each Extender adds approx. 3,25mm) Top view of the Solder part / Extender Emulation Adapter Unit (mm) IEA-TC397XE... - Page 18 3. Connect the Emulation Adapter to the Solder part respectively to the Extender when it's being used. 4. Connect iSYSTEM Debug Adapter or Active Probe to the connector on the Emulation Adapter. Gently press the Emulation Adapter with your thumb to the Target board and keep it stable.
-
Page 19: Accessories
Accessories To ease the development process, we recommend using following iSYSTEM hardware tools with the Infineon TC397XE Emulation Adapter. Ordering Code Description IC5700 iC5700 BlueBox On-Chip Analyzer IC5000 iC5000 BlueBox On-Chip Analyzer IC57031 IOM6 Hub (3 x FNet & FBridge) -
Page 20: Schematics
To view the Emulation Adapter schematics, click on the link below. Schematics To view the Emulation Adapter schematics: · Visit isystem.com/user-manuals, find your Emulation Adapter User Manual and go to the Schematics chapter, or · Scan the QR code below. -
Page 21: User Notes
User Notes This page is intentionally left blank. - Page 22 This page is intentionally left blank.
- Page 23 This page is intentionally left blank.
- Page 24 Whilst iSYSTEM reserves the right to make changes to its products and/or the specifications detailed herein, it does not make any representations or commitments to update this document.
