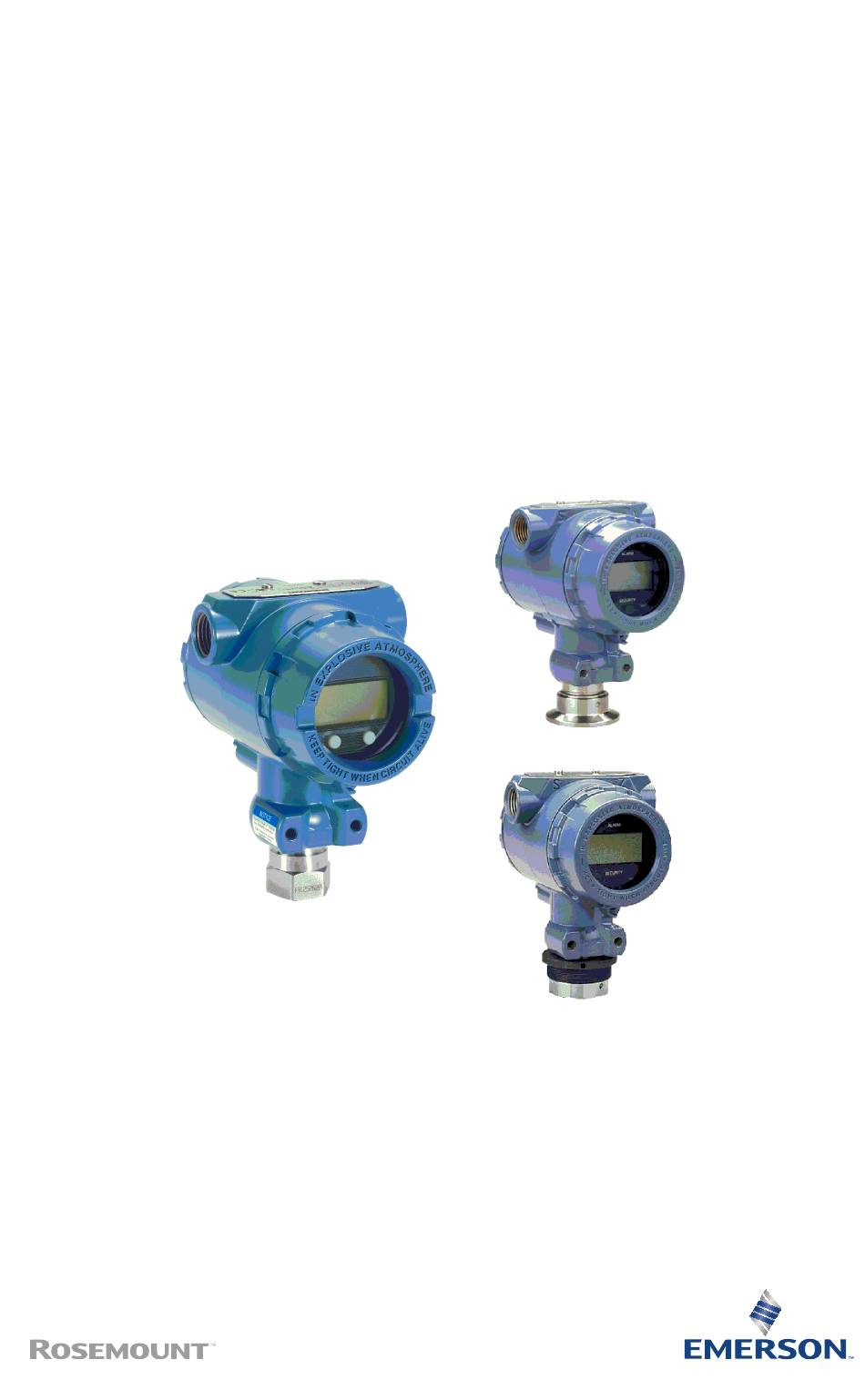

Quick Start Guide
00825-0100-4108, Rev GA
March 2022
™
Rosemount
2088, 2090F, and 2090P
Pressure Transmitter
®
with 4–20 mA HART
and 1–5 Vdc Low
Power HART Protocol (Revision 5 and 7)

Advertisement

Table of Contents
loading

Related Manuals for Emerson Rosemount 2088

Summary of Contents for Emerson Rosemount 2088

  • Page 1 Quick Start Guide 00825-0100-4108, Rev GA March 2022 ™ Rosemount 2088, 2090F, and 2090P Pressure Transmitter ® with 4–20 mA HART and 1–5 Vdc Low Power HART Protocol (Revision 5 and 7)

  • Page 2: Table Of Contents

    Quick Start Guide March 2022 NOTICE This guide provides basic guidelines for Rosemount 2088, 2090F, and 2090P Transmitters. It does not provide instructions for configuration, diagnostics, maintenance, service, troubleshooting, Explosion- proof, Flameproof, or intrinsically safe (I.S.) installations. See the Rosemount 2088 Reference Manual for more information.

  • Page 3: System Readiness

    3. Select desired product. a) Reference Table 1-1 Table 1-2, Find Device Driver Files column to find the correct device driver. Table 1-1: Rosemount 2088 and 2090 with 4–20 mA HART Device Revisions and Files Release Device identification Device driver Review...
  • Page 4 HART Revision 5 and 7 selectable, Local Operator Interface (LOI), scaled variable, configurable alarms, expanded engineering units. Updated electronics hardware design. Intrinsic Safety temperature classification change. Table 1-2: Rosemount 2088 with 1–5 Vdc Low Power HART Device Revisions and Files Release...

  • Page 5: Mount The Transmitter

    March 2022 Quick Start Guide Mount the transmitter Rosemount 2088 Mount directly to the impulse line without using an additional mounting bracket or mount directly to a wall, panel, or 2-in. pipe using an optional mounting bracket. Rosemount 2090P Mount directly to the process pipe using an existing weld spud, or have a skilled welder install a new weld spud using a TIG welder.
  • Page 6 March 2022 Figure 2-2: Panel and Pipe Mounting Panel mount Pipe mount Liquid flow applications Transmitter mounting procedure for liquid flow applications. Procedure 1. Place taps to the side of the line. 2. Mount beside or below the taps. Emerson.com/Rosemount...
  • Page 7 March 2022 Quick Start Guide Gas flow applications Transmitter mounting procedure for gas flow applications. Procedure 1. Place taps in the top or side of the line. 2. Mount level or above the taps. Steam flow applications Transmitter mounting procedure for steam flow applications. Procedure 1.
  • Page 8 Keep the vent path free of any obstruction, including but not limited to paint, dust, and lubrication by mounting the transmitter so that the process can drain away. Figure 2-3: Gage Low Side Pressure Port A. Low side pressure port (atmospheric reference) Emerson.com/Rosemount...

  • Page 9: Set The Switches

    March 2022 Quick Start Guide Set the switches Set alarm and security switch configuration before installation as shown in Figure 3-1. • The alarm switch sets the analog output alarm to high or low. Default alarm is high. • The security switch allows ( ) or prevents ( ) any configuration of the transmitter.
  • Page 10 Rosemount 2088, 2090F, or 2090P. This will cause permanent damage to the transmitter. Electronics board The Rosemount 2088 and 2090 electronics board should not be tampered with or removed from the housing as it could cause permanent damage to the transmitter.

  • Page 11: Connect The Wiring And Power Up

    March 2022 Quick Start Guide Connect the wiring and power up Shielded twisted pair cable should be used for best results. Use 24 AWG or larger wire that does not exceed 5000 ft. (1500 m) in length. If applicable, install wiring with a drip loop. Arrange the drip loop so the bottom is lower than the conduit connections and the transmitter housing.
  • Page 12 Be connected to a good earth ground at the power supply end 6. If transient protection is needed, refer to Grounding for transient terminal block for grounding instructions. 7. Plug and seal unused conduit connections. 8. Replace the housing cover. Emerson.com/Rosemount...
  • Page 13 March 2022 Quick Start Guide Figure 4-3: Grounding A. Trim shield and insulate B. Insulate shield C. Terminate cable shield drain wire to earth ground D. Internal ground location E. External ground location Grounding for transient terminal block Ground termination is provided on the outside of the electronics housing and inside the terminal compartment.

  • Page 14: Verify Transmitter Configuration Using A Field Communicator

    LOI are included in this step. See Rosemount 2088 Reference Manual configuration instructions using AMS Device Manager. A Rosemount 2088 DD must be installed on the Field Communicator to verify configuration. Fast Key sequences vary depending on device and DD revisions. Use the...
  • Page 15 March 2022 Quick Start Guide Figure 5-1: Traditional Interface Figure 5-2: Device Dashboard Table 5-1: Traditional Interface Fast Key A check (✓) indicates the basic configuration parameters. At minimum, these parameters should be verified as part of the configuration and startup procedure. Function Fast Key sequence ✓...
  • Page 16 1, 2, 3, 3, 3 Zero Trim 1, 2, 3, 3, 1 Table 5-2: Device Dashboard Fast Keys A check (✓) indicates the basic configuration parameters. At minimum, these parameters should be verified as part of the configuration and startup procedure. Emerson.com/Rosemount...
  • Page 17 March 2022 Quick Start Guide Function Fast Key Sequence Field Revision Rev 3 Rev 5 Rev 7 HART Revision HART 5 HART 5 HART 7 ✓ Alarm and Saturation Levels 2, 2, 2, 5, 7 2, 2, 2, 5, 7 ✓...
  • Page 18 Figure 5-3: Internal and External LOI Buttons A. Internal buttons B. External buttons Note Figure 12 on page 15 to confirm external button functionality. Table 5-3: LOI Button Operation Button Left SCROLL Right ENTER Emerson.com/Rosemount...
  • Page 19 Task steps to switch the HART Revision mode from the generic menu. If the HART configuration tool is not capable of communicating with HART Revision 7, the Rosemount 2088, 2090F, or 2090P will load a generic menu with limited capability. The following procedures will switch the HART...

  • Page 20: Trim The Transmitter

    A zero trim can be performed using either a Field Communicator or configuration buttons. For instructions using AMS Device Manager, see the Rosemount 2088 Reference Manual.
  • Page 21 March 2022 Quick Start Guide Trimming with configuration buttons A zero trim is to be performed using one of the three possible sets of external configuration buttons located under the top tag. To access the configuration buttons, loosen the screw and slide the tag on the top of the transmitter.
  • Page 22 2. Press and hold the zero button for two seconds to perform an analog zero trim. Perform trim with digital zero (option DZ) Procedure 1. Set the transmitter pressure. 2. Press and hold the zero button for two seconds to perform a digital zero trim. Emerson.com/Rosemount...

  • Page 23: Safety Instrumented Systems (Sis) Installation

    March 2022 Quick Start Guide Safety Instrumented Systems (SIS) installation For safety certified installations, refer to Rosemount 2090 Manual Supplement for installation procedure and system requirements. Quick Start Guide...

  • Page 24: Product Certifications

    European Directive information A copy of the EU Declaration of Conformity can be found at the end of this guide. The most recent revision of the EU Declaration of Conformity can be found at Emerson.com/Rosemount. 8.1.2 Ordinary certification location from CSA...
  • Page 25 March 2022 Quick Start Guide 157-92, CSA Std C22.2 No. 213-M1987, ANSI- ISA-12.27.01-2003 Markings: Explosionproof for Class I, Division 1, Groups B, C and D; Class II, Groups E, F, and G; Class III; Intrinsically Safe Class I, Division 1 when connected in accordance with Rosemount drawing 02088-1024, Temperature Code T3C;...
  • Page 26 EN60079-0:2012+A11:2013, EN60079-31:2009 Markings: II 1 D Ex t IIIC T50 °C T 60 °C Da Special Conditions for Safe Use (X): 1. Cable entries must be used which maintain the ingress protection of the enclosure to at least IP66. Emerson.com/Rosemount...
  • Page 27 March 2022 Quick Start Guide 2. Unused cable entries must be filled with suitable blanking plugs which maintain the ingress protection of the enclosure to at least IP66. 3. Cable entries and blanking plugs must be suitable for the ambient range of the apparatus and capable of withstanding a 7J impact test.
  • Page 28 Special Conditions for Safe Use (X): 1. When fitted with a transient suppression terminal block, the Rosemount 2088 is incapable of passing the 500 V isolation test. This must be taken into account during installation. 2. The enclosure may be made of aluminum alloy and given a protective polyurethane paint finish;...
  • Page 29 March 2022 Quick Start Guide Special Conditions for Safe Use (X): 1. Cable entries must be used which maintain the ingress protection of the enclosure to at least IP66. 2. Unused cable entries must be filled with suitable blanking plugs which maintain the ingress protection of the enclosure to at least IP66.
  • Page 30 ≤ +70 °C) Special Condition for Safe Use (X): 1. See certificate for special conditions. 8.1.8 Combinations Combination of ED, I1, ND, and N1 Combination of E5 and I5 Combination of C6, ED, and I1 Combination of K5 and C6 Emerson.com/Rosemount...
  • Page 31 March 2022 Quick Start Guide Combination of EM and IM Combination of ED, I1, K5 8.1.9 Conduit Plugs and Adapters IECEx Flameproof and Increased Safety Certificate: IECEx FMG 13.0032X Standards: IEC60079-0:2011,IEC60079-1:2007-04,IEC60079-7:2006-07 Markings: Ex de IIC Gb ATEX Flameproof and Increased Safety Certificate: FM13ATEX0076X Standards:...
  • Page 32 2. The blanking plug shall not be used with an adapter. 3. Blanking Plug and Threaded Adapter shall be either NPT or Metric thread forms. G½ and PG 13.5 thread forms are only acceptable for existing (legacy) equipment installations. Rosemount 2088 Rev 1.26 8.2.1 European Directive information A copy of the EU Declaration of Conformity can be found at the end of this guide.
  • Page 33 March 2022 Quick Start Guide C6 Canada Explosionproof, Intrinsic Safety and Division 2, Dust- Ignitionproof Certificate: 1015441 Standards: CAN/CSA C22.2 No. 0-M91 (R2001), CSA Std C22.2 No. 25-1966, CSA Std C22.2 No. 30-M1986, CAN/CSA-C22.2 No. 94-M91, CSA Std C22.2 No. 142-M1987, CAN/CSA-C22.2 No. 157-92, CSA Std C22.2 No.
  • Page 34 2. The enclosure may be made of aluminum alloy and given a protective polyurethane paint finish; however, care should be taken to protect it from impact or abrasion if located in a Zone 0 environment. N1 ATEX Type n Certificate: BAS00ATEX3167X Emerson.com/Rosemount...
  • Page 35 March 2022 Quick Start Guide Standards: EN60079-0:2012 + A11:2013,EN60079-15:2010 Markings: Ex II 3 G Ex nA IIC T5 Gc (–40 °C ≤ T ≤ +70 °C) Special Condition for Safe Use (X): 1. This apparatus is not capable of withstanding the 500 V insulation test required by EN60079-15.
  • Page 36 Special Conditions for Safe Use (X): 1. When fitted with a transient suppression terminal block, the Rosemount 2088 is incapable of passing the 500 V isolation test. This must be taken into account during installation. 2. The enclosure may be made of aluminum alloy and given a protective polyurethane paint finish;...
  • Page 37 ≤ +70 °C) Special Condition for Safe Use (X): 1. When fitted with a transient suppression terminal block, the Rosemount 2088 is incapable of passing the 500 V isolation test. This must be taken into account during installation. NK IECEx Dust Certificate: IECEx BAS12.0073X...
  • Page 38 Standards: ABNT NBR IEC60079-0:2008 + Errata 1:2011, ABNT NBR IEC60079-11:2009 Markings: Ex ia IIC T4 Ga (–55 °C ≤ T ≤ +70 °C) Parameter HART Voltage U 30 V Current I 200 mA Power P 0.9 W Capacitance C 0.012 µF Emerson.com/Rosemount...
  • Page 39 Special Conditions for Safe Use (X): 1. When fitted with a transient suppression terminal block, the Rosemount 2088 is incapable of passing the 500 V isolation test. This must be taken into account when installing the equipment. 2. The enclosure may be made of aluminum alloy and given a protective polyurethane paint finish;...
  • Page 40 EP Korea Flameproof Certificate: 13-KB4BO-0020X, 10-KB4BO-0137X, 19-KA4BO-0989X Markings: Ex d IIC T6…T4 Ga/Gb, T4/T5 (-60 °C ≤ T ≤ +80 °C), T6 (-60 °C ≤ T ≤ +70 °C) Special Condition for Safe Use (X): 1. See certificate for special conditions. Emerson.com/Rosemount...
  • Page 41 March 2022 Quick Start Guide 8.2.9 Japan E4 Japan Flameproof Certificate: CML20JPN1313X Markings: Ex db IIC T6…T4 Ga/Gb, T6 (-60 °C ≤ T ≤ +70 °C), T4/T5 (-60 °C ≤ T ≤ +80 °C) 8.2.10 Technical Regulations Customs Union (EAC) EM EAC Flameproof Certificate: EAEC RU C-US.EX01.B.00176 Markings:...
  • Page 42 1. When the thread adapter or blanking plug is used with an enclosure in type of protection increased safety “e” the entry thread shall be suitably sealed in order to maintain the ingress protection rating (IP) of the enclosure. 2. The blanking plug shall not be used with an adapter. Emerson.com/Rosemount...
  • Page 43 March 2022 Quick Start Guide 3. Blanking Plug and Threaded Adapter shall be either NPT or Metric thread forms. G½ thread forms are only acceptable for existing (legacy) equipment installations. 8.2.13 Additional Certifications SBS American Bureau of Shipping (ABS) Type Approval 18-HS1814314-PDA Certificate: Intended Use: Measurement of either gauge or absolute pressure for...

  • Page 44: Rosemount 2088 And 2090 Declaration Of Conformity

    Quick Start Guide March 2022 Rosemount 2088 and 2090 Declaration of Conformity Emerson.com/Rosemount...
  • Page 45 March 2022 Quick Start Guide Quick Start Guide...
  • Page 46 Quick Start Guide March 2022 Emerson.com/Rosemount...

  • Page 47: China Rohs

    March 2022 Quick Start Guide China RoHS Rosemount 2088 Quick Start Guide...
  • Page 48 Quick Start Guide March 2022 Rosemount 2090F Emerson.com/Rosemount...
  • Page 49 March 2022 Quick Start Guide Rosemount 2090P Quick Start Guide...
  • Page 50 Quick Start Guide March 2022 Emerson.com/Rosemount...
  • Page 51 March 2022 Quick Start Guide Quick Start Guide...
  • Page 52 00825-0100-4108, Rev. GA March 2022 © 2022 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies.
