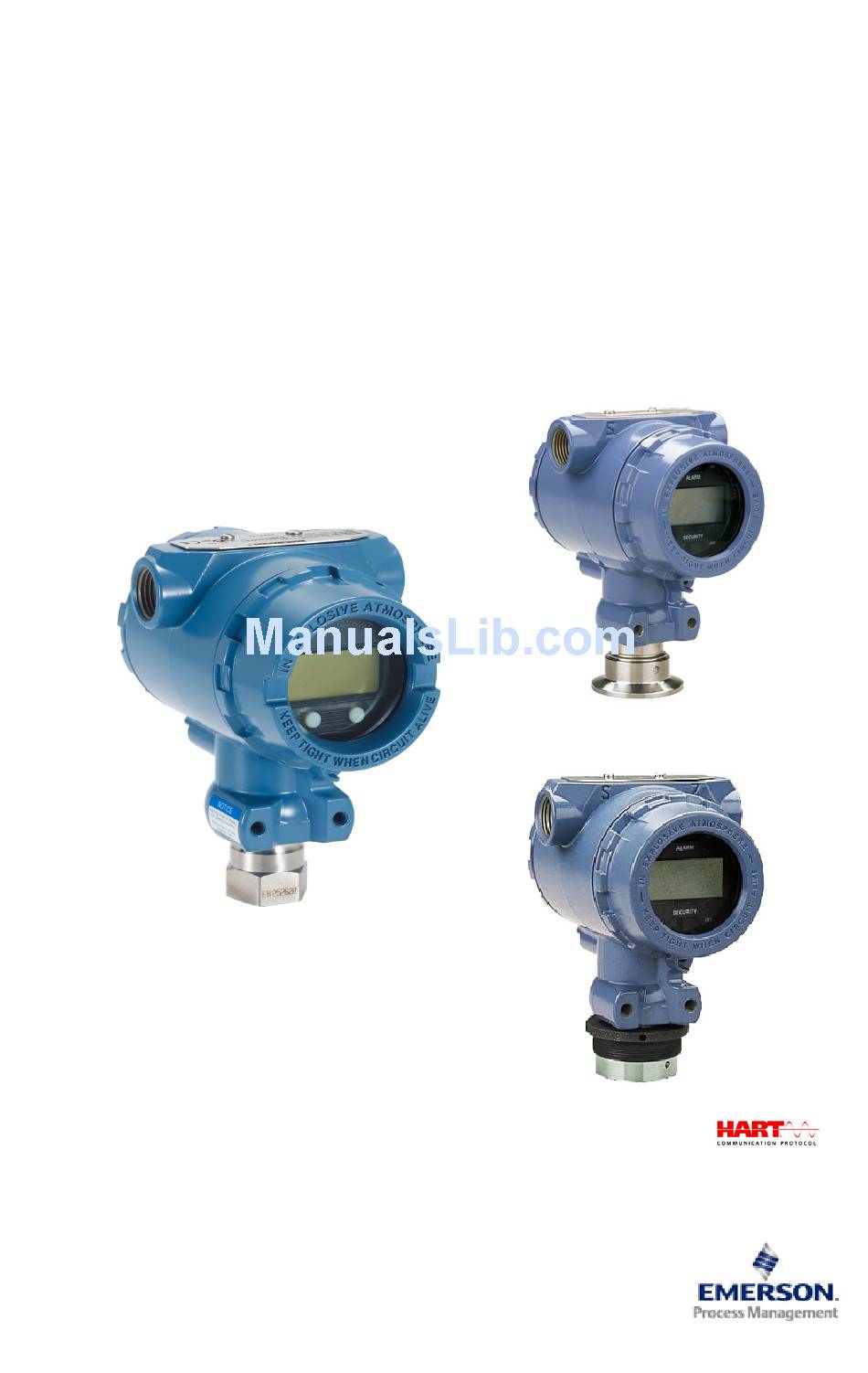

- Page 1 Quick Start Guide 00825-0100-4108, Rev BA August 2015 ® Rosemount 2088, 2090F, and 2090P Pressure Transmitter ® with 4-20 mA HART and 1-5 Vdc Low Power HART Protocol (Revision 5 and 7)
-
Page 2: Table Of Contents
August 2015 Quick Start Guide NOTICE This guide provides basic guidelines for Rosemount 2088, 2090F, and 2090P Transmitters. It does not provide instructions for configuration, diagnostics, maintenance, service, troubleshooting, Explosion-proof, Flameproof, or intrinsically safe (I.S.) installations. See the Rosemount 2088 Reference Manual (document number 00809-0100-4108) for more information. -
Page 3: System Readiness
The 2088, 2090F, and 2090P transmitters all use 2088 Device Revisions and Drivers. 1. Download the latest DD at www.emersonprocess.com or www.hartcomm.org. 2. In the Browse by Member dropdown menu, select Emerson™ Process Management. 3. Select desired product. a. Reference... -
Page 4: Mount The Transmitter
August 2015 Quick Start Guide Table 1. Rosemount 2088 Device Revisions and Files Review Review Identify device Find device driver files instructions functionality Software NAMUR HART HART Manual Device Changes to release software software universal document revision software date revision... - Page 5 Quick Start Guide August 2015 Figure 1. Transmitter Direct Mounting Do not apply torque directly to the electronics housing. To avoid damage, apply torque only to the hex-shaped process connection. 2088 2090P 2090F 1.5 in. 1.0 in. -14 NPT female process connection D.
- Page 6 August 2015 Quick Start Guide Liquid flow applications 1. Place taps to the side of the line. 2. Mount beside or below the taps. 3. Mount the transmitter so the drain/vent valves are oriented upward. Gas flow applications 1. Place taps in the top or side of the line. 2.
-
Page 7: Set The Switches
Quick Start Guide August 2015 Figure 3. Gage Low Side Pressure Port A. Low side pressure port (atmospheric reference) Step 2: Set the switches Set alarm and security switch configuration before installation as shown in Figure The alarm switch sets the analog output alarm to high or low. Default alarm is ... -
Page 8: Connect The Wiring And Power Up
August 2015 Quick Start Guide Figure 4. Transmitter Electronics Board Without LCD display With LCD/LOI A. Alarm B. Security Step 3: Connect the wiring and power up Shielded twisted pair cable should be used for best results. Use 24 AWG or larger wire that does not exceed 5000 feet (1500 meters) in length. - Page 9 Quick Start Guide August 2015 Figure 6. Wiring the Transmitter (1-5 Vdc Low Power) A. Power supply B, Voltmeter C. Field teminals Installation of the transient protection terminal block does not provide transient protection unless the transmitter case is properly grounded. Do not run signal wiring in conduit or open trays with power wiring, or near heavy electrical equipment.
-
Page 10: Verify Transmitter Configuration
AMS Device Manager. Verifying configuration with a Field Communicator A Rosemount 2088 DD must be installed on the Field Communicator to verify configuration. Fast Key sequences vary depending on device and DD revisions. Use the Determine Fast Key sequence table process below to identify the appropriate fast key sequences. - Page 11 Field Revision and HART Revision for Fast Key sequences. Note Emerson recommends installing the latest DD to access the complete functionality. Visit www.emersonprocess.com or www.hartcomm.org Figure 8. Traditional Interface Figure 9. Device Dashboard...
- Page 12 August 2015 Quick Start Guide Note A check () indicates the basic configuration parameters. At minimum, these parameters should be verified as part of the configuration and startup procedure. Table 2. Traditional Interface Fast Key Fast Key sequence Function 1,4,3,2,4 Analog Output Alarm 1,4,3,3,3...
- Page 13 Quick Start Guide August 2015 Note A check () indicates the basic configuration parameters. At minimum, these parameters should be verified as part of the configuration and startup procedure. Table 3. Device Dashboard Fast Keys Fast Key Sequence Function Rev 3 Rev 5 Rev 7 Field Revision...
- Page 14 August 2015 Quick Start Guide Verifying configuration with Local Operator Interface (LOI) The optional LOI can be used for commissioning the device. The LOI is a two-button design with internal and external buttons. The internal buttons are located on the display of the transmitter, while the external buttons are located underneath the top metal tag.
- Page 15 Quick Start Guide August 2015 Table 4. LOI Button Operation Button SCROLL Left ENTER Right Figure 11. LOI Menu Assign PV HART Revision Switch HART revision mode If the HART configuration tool is not capable of communicating with HART Revision 7, the 2088, 2090F, or 2090P will load a Generic Menu with limited capability.
-
Page 16: Trim The Transmitter
A zero trim can be performed using either a Field Communicator or configuration buttons. For instructions using AMS, see the Rosemount 2088 Product Manual (document number 00809-0100-4108). Note When performing a zero trim, ensure the equalization valve is open and all wet legs are filled to the correct level. - Page 17 Quick Start Guide August 2015 Figure 12. External Configuration Buttons A. Configuration buttons B. LOI C. Analog zero and span D. Digital zero Use the following procedures to perform a Zero Trim: Perform trim with LOI (option M4) 1. Set the transmitter pressure. 2.
-
Page 18: Product Certifications
Rev 1.1 Approved Manufacturing Locations Rosemount Inc. - Chanhassen, Minnesota, USA Emerson Process Management GmbH & Co. - Wessling, Germany Emerson Process Management Asia Pacific Private Limited - Singapore Emerson (Beijing) Instrument Co., Ltd - Beijing, China European Directive Information A copy of the EC Declaration of Conformity can be found at the end of the Quick Start Guide. - Page 19 Quick Start Guide August 2015 C6 Canada Explosionproof, Intrinsic Safety and Nonincendive Certificate: 1015441 Standards: CAN/CSA C22.2 No. 0-M91 (R2001), CSA Std C22.2 No. 25-1966, CSA Std C22.2 No. 30-M1986, CAN/CSA-C22.2 No. 94-M91, CSA Std C22.2 No. 142-M1987, CAN/CSA-C22.2 No. 157-92, CSA Std C22.2 No. 213-M1987, ANSI-ISA-12.27.01-2003 Markings: Explosionproof for Class I, Division 1, Groups B, C and D;...
- Page 20 August 2015 Quick Start Guide ND ATEX Dust Certificate: BAS01ATEX1427X Standards: EN60079-0:2012, EN60079-31:2009 Markings: II 1 D Ex t IIIC T50 °C T 60 °C Da Special Conditions for Safe Use (X): 1. The user must ensure that the maximum rated voltage and current (36 volts, 24 milliamps, d.c.) are not exceeded.
- Page 21 Quick Start Guide August 2015 N7 IECEx Type n Certificate: IECEx BAS 12.0072X Standards: IEC60079-0:2011, IEC60079-15:2010 ≤ T ≤ Markings: Ex nA IIC T5 Gc (-40 °C +70 °C) Special Condition for Safe Use (X): 1. When fitted with a transient suppression terminal block, the Model 2088 is incapable of passing the 500 V isolation test.
- Page 22 August 2015 Quick Start Guide China E3 China Flameproof Certificate: GYJ111062 (2088 series); GYJ111064 (2090 series) Standards: GB3836.1-2000, GB3836.2-2010 ≤ T ≤ ≤ T ≤ Markings: Ex d IIC T6/T4, T6(-20 °C +40 °C), T4(-20 °C +80 °C) Special Conditions of Use (X): 1.
- Page 23 Certificate: TC20869, TC20870 Markings: Ex d IIC T5 Technical Regulations Customs Union (EAC) EM, IM, KM Contact an Emerson Process Management representative for more information Combinations K1 Combination of ED, I1, ND, and N1 K2 Combination of E2 and I2 (2088 only)
- Page 24 August 2015 Quick Start Guide Conduit Plugs and Adapters IECEx Flameproof and Increased Safety Certificate: IECEx FMG 13.0032X Standards: IEC60079-0:2011, IEC60079-1:2007-04, IEC60079-7:2006-07 Markings: Ex de IIC Gb ATEX Flameproof and Increased Safety Certificate: FM13ATEX0076X Standards: EN60079-0:2012, EN60079-1:2007, EN60079-7:2007 Markings: II 2 G Ex de IIC Gb Table 10.
- Page 25 Quick Start Guide August 2015 Additional Certifications American Bureau of Shipping (ABS) Type Approval (2088 only) Certificate: 09-HS446883D-3-PDA Intended Use: Measurement of either gauge or absolute pressure for liquid, gas, and vapor ABS Rules: 2014 Steel Vessels Rules 1-1-4/7.7, 1-1-Appendix 3, 4-8-3/1.7, 4-8-3/13.1, 4-8-3/13.3.1 &...
- Page 26 August 2015 Quick Start Guide Figure 13. Rosemount 2088 and 2090 Declaration of Conformity...
- Page 27 Quick Start Guide August 2015...
- Page 28 August 2015 Quick Start Guide...
- Page 29 Quick Start Guide August 2015...
- Page 30 Standard Terms and Conditions of Sale can be found at: www.rosemount.com\terms_of_sale. Emerson Process Management The Emerson logo is a trademark and service mark of Emerson Electric Co. Emerson FZE P.O. Box 17033, Rosemount and Rosemount logotype are registered trademarks of Jebel Ali Free Zone - South 2 Rosemount Inc.
