Toothed belt from the tilt right drive
86
3.
CAUTION
Risk of material damage!

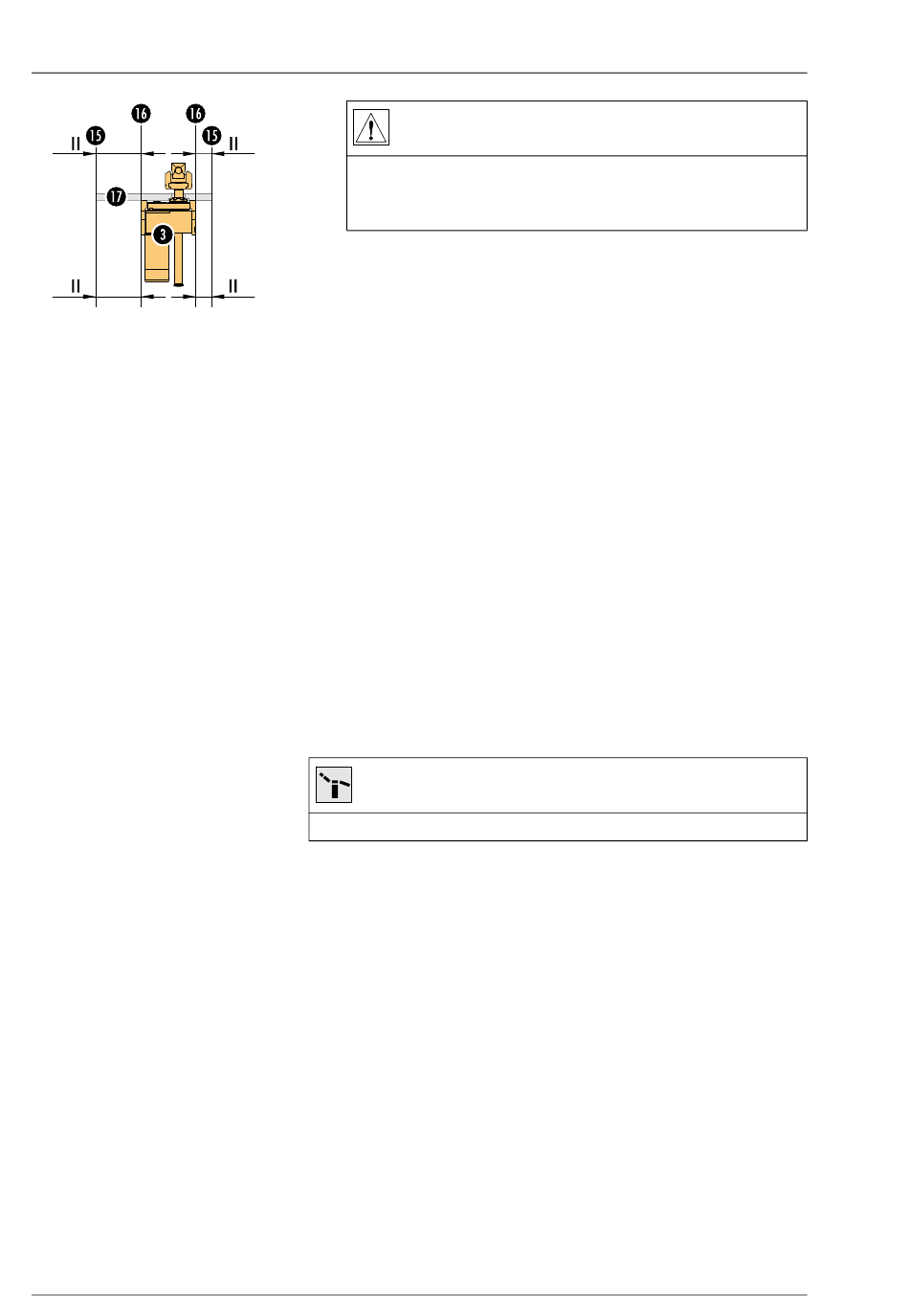

Material wear due to improper assembly! The outer
edges [15] of the suspension plate [17] must be parallel to
the outer edges [16] of the tilt right assembly [3].
Install the tilt right assembly (see chapter 15.8 on page 122).
4.
Attach the bellows (see chapter 14.3 on page 78).
5.
Attach the table top (see chapter 12.1 on page 38).
6.
Attach the cover to the center box (see chapter 12.3 on
page 41).
7.
Attach the pad plate to the seat section bars (see chapter 12.2
on page 40).
8.
Attach the metal panel with the column keypad (see
chapter 14.2 on page 77).
9.
Slide the column cover up and close it (see chapter 9 on
page 31).
10. Open the column cover at the bottom to establish the power
supply (see chapter 8 on page 30).
11. Establish the internal power supply, close the column cover
and turn on the operating table (see chapter 10 on page 33).
12. Put on the pad.
13. Update the software (see the software description from the
CAN test center).
TEST
Perform function test and final check.
