Assembly
Service Manual TruSystem 7000 Operating Table – 1 764 986 – 10/2016

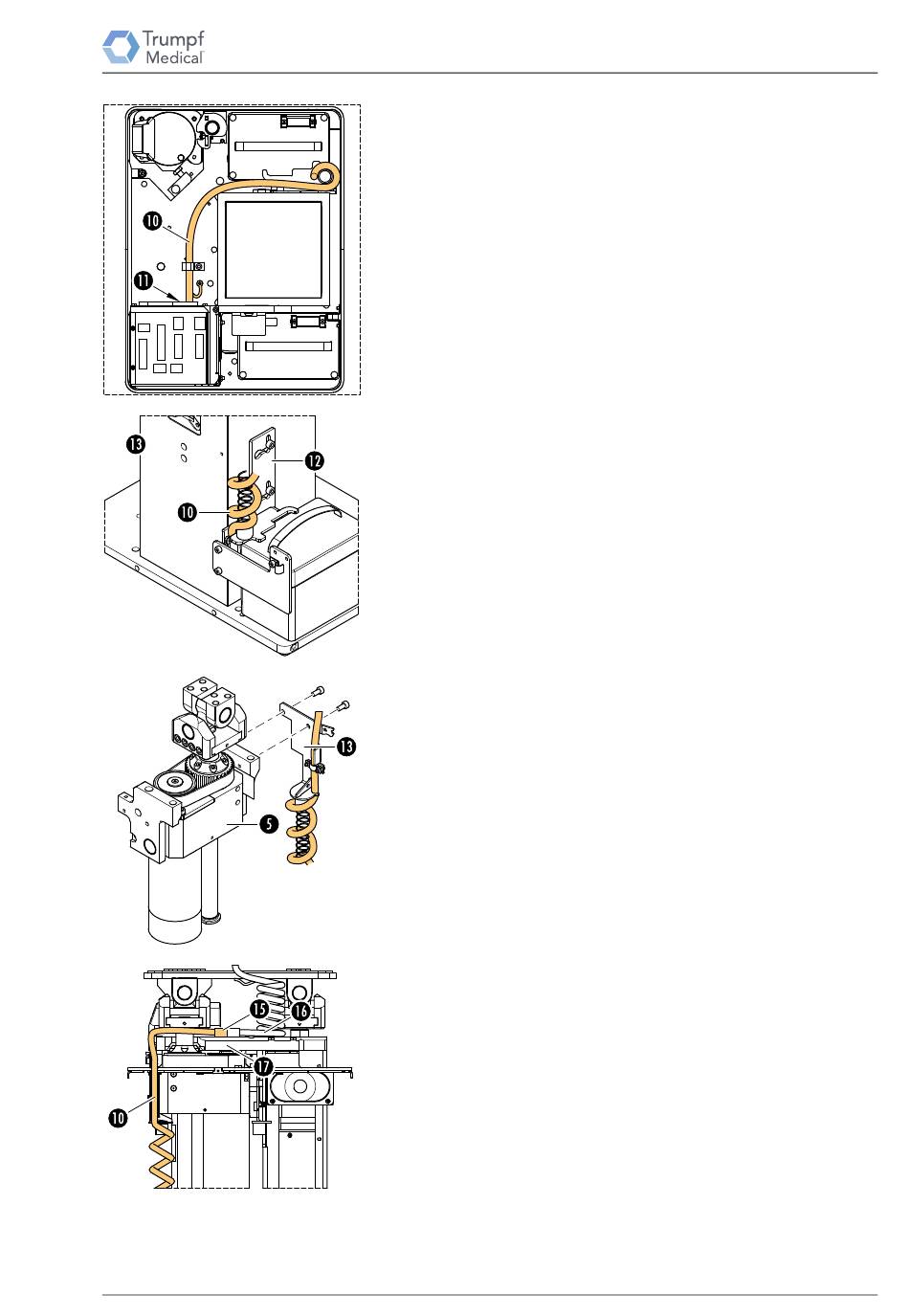

10. Note the cable routing and attachment.
Unfasten cable W104 [10] from the column base.
11. Unscrew the ground wire connection of cable W104 from the
column base (1 screw with 2 washers).
12. Unplug cable W104 [10] from the power supply circuit
board [11] in the power supply socket.
13. Note the installation position of the cable hold-down
clamp [12].
Loosen the two screws on the cable hold-down clamp [12] of
the spiral cable_back. Carefully guide the cable hold-down
clamp [12] along the oblong holes on the guide column [13]
and unhinge it.
14. Remove the spiral cable holder [14] of cable W104 from the
tilt left assembly [5] (2 screws).
15. Note the cable routing and attachment.
Unfasten cable W104 from the suspension plate.
16. Disconnect the plug of cable W173 [16] from cable
W104 [10] (coupling point [15] on the suspension
plate [17]).
17. Remove the ground wire connection of both cables W173
and W104 from the suspension plate [17] (1 screw with 2
washers).
18. Remove cable W104.
1. Attach the spiral cable holder of cable W104 to the tilt left
Cable W104
