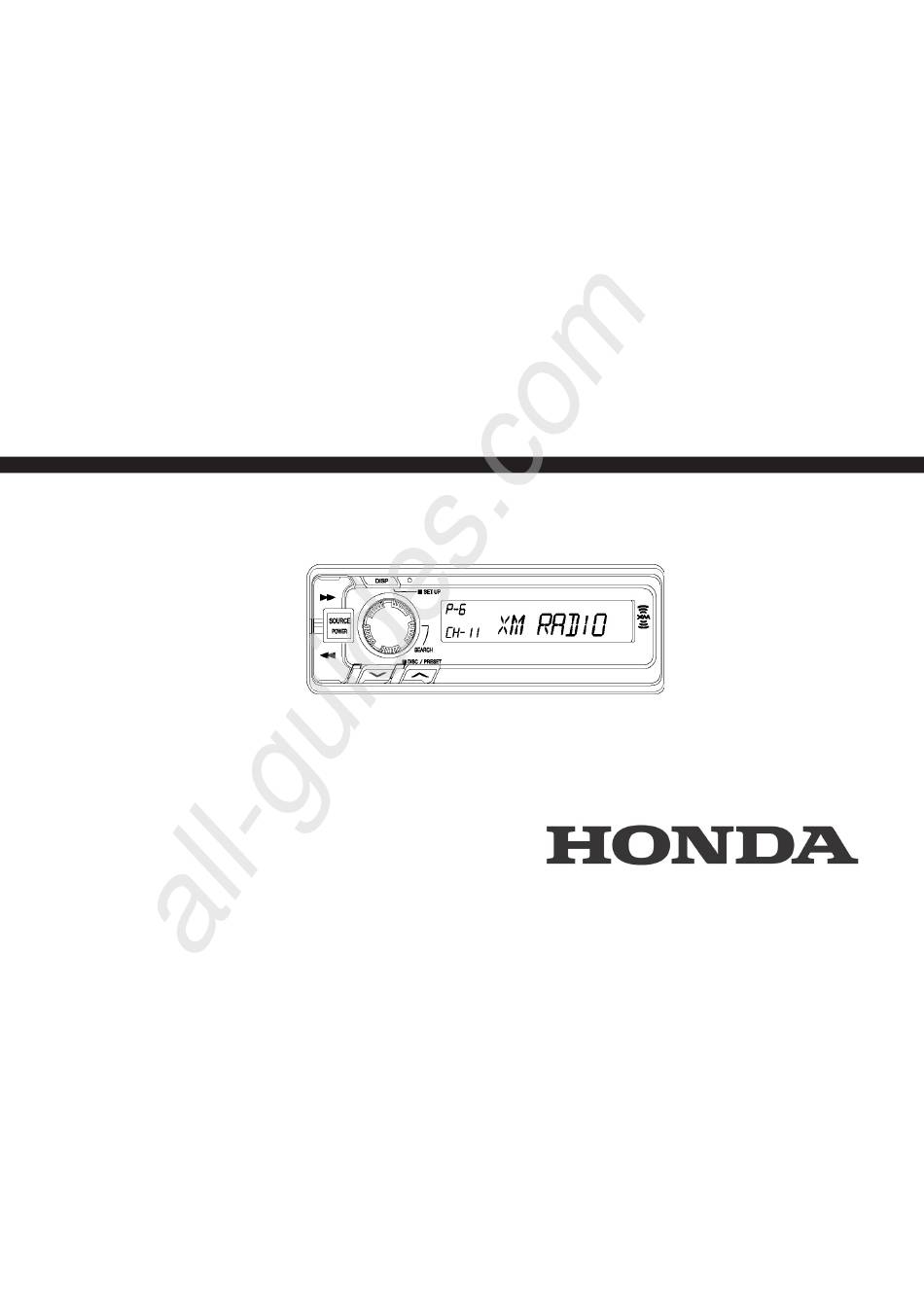

- Page 1 All manuals and user guides at all-guides.com OPERATING INSTRUCTIONS XM RADIO P/N 08A15-1E1-000...
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com Contents General information……………………………………...…………..3 Initial Setup……………………………………………………………6 Operation………………………………….…………………………10 Troubleshooting…..…………………………………………………14 Information…………………………………………………………...15 Specifications………………………………………………………..17 Please write the serial number and the XM ID number from the bottom of the tuner in the space below for your records. Serial No.: ____________________________________________ XM ID No.: ____________________________________________... -
Page 3: General Information
All manuals and user guides at all-guides.com How the service works The XM service is based on two satellites that have fixed positions over the equator. One satellite for the east coast of the United States and the other for the west coast. - Page 4 All manuals and user guides at all-guides.com Locations where satellite signals are received easily Satellite signals are received best in the areas where there are no tall buildings, trees or tall objects that can obstruct the signals. Satellite radio signals may not be received in areas listed below. There may be ground-based coverage in some of these areas that will provide uninterrupted service of satellite radio.
- Page 5 All manuals and user guides at all-guides.com Sound in your car The signal is broadcast in a digital format so that if you do run into a situation where both the satellite antenna and the ground-based antenna lose the signal the sound will drop off completely. This condition would result in no static and may sound as though the unit were shut off.
-
Page 6: Initial Setup
All manuals and user guides at all-guides.com DISP/SETUP Rotary Knob SOURCE / POWER Down Initial Setup Turning power on and off 1. Press the SOURCE POWER button to turn the unit on. NOTE: The unit can be turned on by pressing any of the buttons of the display module. 2. - Page 7 All manuals and user guides at all-guides.com DISP/SETUP Rotary Knob SOURCE / POWER Down Initial Setup Modulator frequency setting 1. Press and hold the DISP SETUP for 2 seconds or more. 2. Turn the rotary encoder or press the button to select the frequency setting mode (displays the frequency of the desired modulation station).
- Page 8 When your XM receiver is connected to the factory installed radio, this feature will allow the user to choose between 4 levels of output (XM level 1 to 4) to better match the output level of the Honda/ Acura radio. 1. Press and hold the DISP/SETUP button for 2 seconds or more.
- Page 9 All manuals and user guides at all-guides.com DISP/SETUP Rotary Knob SOURCE / POWER Down Initial Setup Scrolling feature This feature allows the broadcast text information such as artist, song tittle and station information to move continuously across the screen. This is the default setting however this feature can be disabled if the user prefers no scrolling.
-
Page 10: Operation
All manuals and user guides at all-guides.com DISP/SETUP Rotary Knob SOURCE / POWER Down Operation Receiving XM channels with the XM receiver 1. Turn the vehicle’s radio on to FM and tune to the XM radio’s modulator fre- quency (between 88.7 to 89.9). Refer to page 7 for how to set XM radio’s modulator frequency. - Page 11 All manuals and user guides at all-guides.com DISP/SETUP Rotary Knob SOURCE / POWER Down Operation Storing XM channel presets 1. After tuning in the desired channel, press and hold the rotary knob for 2 seconds or more until the channel name on the display blinks. 2.
- Page 12 All manuals and user guides at all-guides.com DISP/SETUP Rotary Knob SOURCE / POWER Down Operation Category search Category search functionally allows you to search for a specific channel by the category of pro- gramming it offers, or to surf within a category. 1.
- Page 13 All manuals and user guides at all-guides.com DISP/SETUP Rotary Knob SOURCE / POWER Down Operation Changing the display Text information, such as the channel name, artist name/feature, and song/program tittle, is available with each XM channel. This unit can display this text information as explained below 1.
-
Page 14: Troubleshooting
Check radio make sure the speakers. frequency. vehicle’s radio is set correctly. The antenna may not be connected. Contact your Honda dealer. Big difference in sound level XM radio needs Level adjustment. Refer to page 8 in manual. between car audio system and XM radio. -
Page 15: Information
All manuals and user guides at all-guides.com Display Information Display messages for XM radio operation ANTENNA • The XM antenna is not connected to the XM radio module Check whether the XM antenna cable is attached securely to the XM radio module. UPDATING •... - Page 16 All manuals and user guides at all-guides.com Display Information Display messages for XM radio operation LOADING • XM radio is acquiring audio or program information - Wait until the radio has received the information OFF AIR • The channel currently selected has stopped broadcasting. - Select another channel.
-
Page 17: Specifications
All manuals and user guides at all-guides.com SPECIFICATIONS RF MODULATOR UNIT RF Output Frequency (selectable) 87.7-89.9 MHz RF Output Voltage 70 dBµV RF Modulator input Sensitivity/Impedance 500mV/10 k Ohms Recommended Operating voltage 13.4 Vdc Recommended Temperature range 14°F– 140F° (-10°C -+60°C) DISPLAY MODULE Width 113 mm (4-7/16”) - Page 18 All manuals and user guides at all-guides.com REF. NO. MR0HL210 08A15-1E1-000-81 Printed in U.S.A © 2003 American Honda Motor Co., Inc - All Rights Reserved.
