INSTALLATION
INSTRUCTIONS

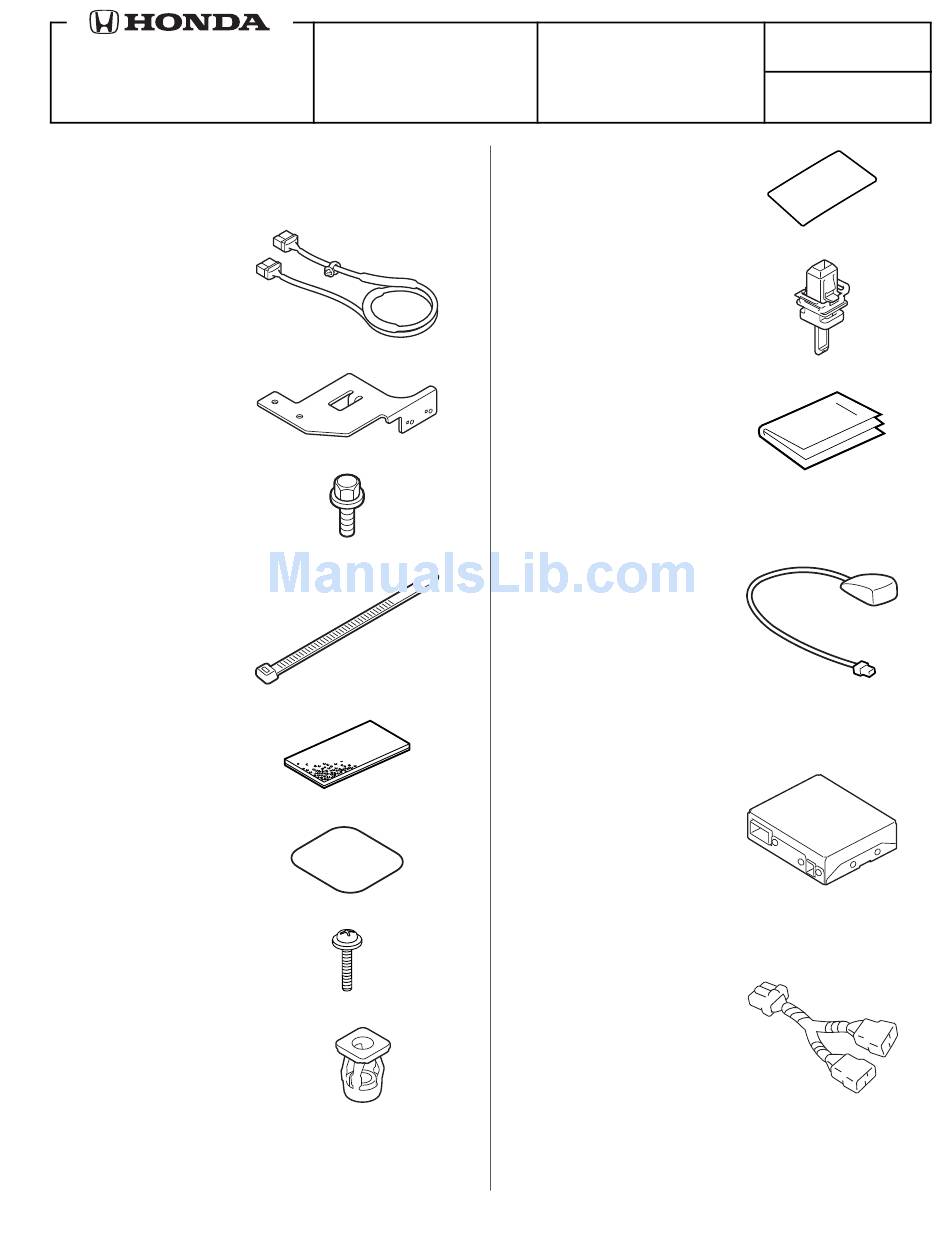

PARTS LIST
XM Radio Attachment Kit
P/N 08B15-TR0-100A
Bus cable
Bracket
3
Washer bolts
6
Wire ties
5
Urethane tapes
Cover seal
2
Washer screws
2
Jack nuts
© 2013 American Honda Motor Co., Inc. – All Rights Reserved.
Accessory
XM RADIO SYSTEM
5
Aluminum tapes
Clip
Accessory User's Information Manual
XM Antenna Kit (sold separately)
P/N 08A15-0J1-100
Antenna
Unit Kit (sold separately)
P/N 08A15-TR0-100
XM radio unit
2-Port Bus Cable Kit (sold separately)
P/N 08A31-0F1-000
2-Port bus cable
AII 50823 (1312)
Application
2013 CIVIC
HF 4-DOOR
08B15-TR0-1001-9A
Publications No.
AII 50823
Issue Date
DEC 2013
1 of 14
