Honda CD PLAYER Installation Instructions

Cd player
Hide thumbs

Advertisement

Quick Links

INSTALLATION
INSTRUCTIONS
PARTS LIST

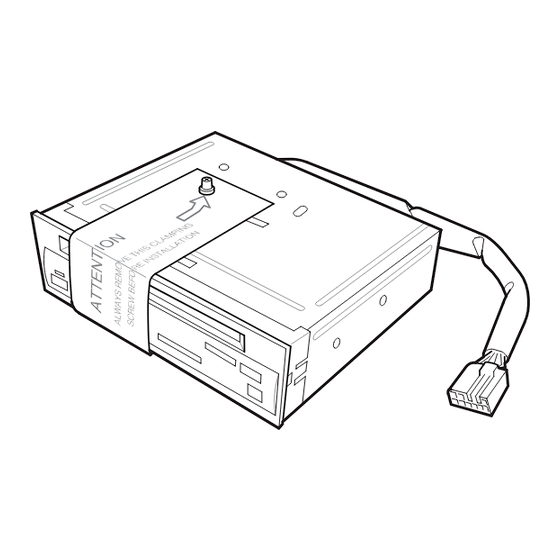

CD Player
P/N 08A51-ED1100
CD Player
Owner's Manual
4 Screws
TOOLS REQUIRED
#2 Phillips screwdriver
Ratchet
8 mm Socket
INSTALLATION
Customer Information: The information in this
Accessory Installation Instruction is intended for
use only by skilled technicians who have the
proper tools, equipment, and training to
correctly and safely add equipment to your
vehicle. These procedures should not be
attempted by do it yourselfers."
1. Write down the customer's radio station
presets; the radio memory will be erased when
you disconnect the battery.
2. Disconnect the negative cable from the
battery.
1998 American Honda Motor Co., Inc. – All Rights Reserved
Accessory
CD PLAYER
3. Remove the ashtray. On A/T models, move the
shift lever to the " L " position.
CLIPS
(4 places)
ASHTRAY
(Remove.)
4. Remove the lower cluster assembly (one
screw, and gently pull to release the four
retaining clips; then unplug the cigarette lighter
connectors).
5. Remove and retain the four screws securing the
audio unit. Unplug the 16-pin connector and the
antenna lead, and remove the audio unit.
AUDIO UNIT
Retain these screws.
Y0505-E
Application
PASSPORT
LOWER CLUSTER
ASSEMBLY
CIGARETTE LIGHTER
CONNECTORS
ANTENNA LEAD
Publications No.
AII 20161
Issue Date
OCT
1998
16-PIN
CONNECTOR
1 of 2

Advertisement

loading

  Related Manuals for Honda CD PLAYER

  Summary of Contents for Honda CD PLAYER

  • Page 1: Installation Instructions

    1. Write down the customer’s radio station presets; the radio memory will be erased when you disconnect the battery. 16-PIN 2. Disconnect the negative cable from the CONNECTOR battery. Retain these screws. 1 of 2 1998 American Honda Motor Co., Inc. – All Rights Reserved Y0505-E...
  • Page 2 15. Put the CD player owner’s manual in the glove box for your customer. 8. Place the audio unit on top of the CD player. Slide the right and left brackets over the CD player, and install the four screws supplied with the CD player.
