Honda 08B06-SDA-100 Installation Instructions Manual

Cassette/multimedia/ in-dash cd player attachment.
Hide thumbs


Advertisement

INSTALLATION
INSTRUCTIONS

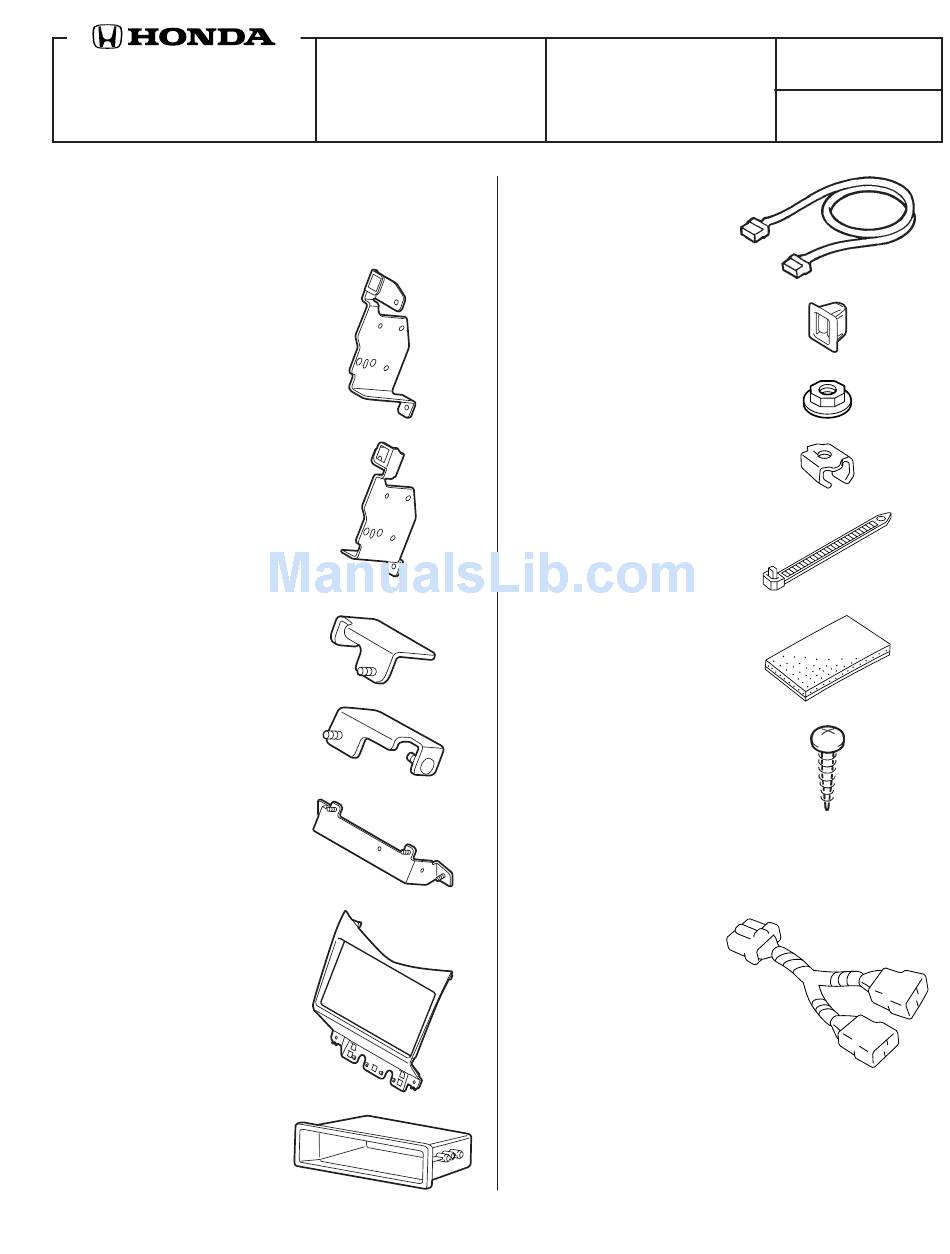

PARTS LIST
Attachment Kit (sold separately):
P/N 08B06-SDA-100
Left player bracket
Right player bracket
Left player subbracket
Right player subbracket
Player base-bracket
Player panel
Pocket
© 2004 American Honda Motor Co., Inc - All Rights Reserved.
Accessory
CASSETTE/MULTIMEDIA/
IN-DASH CD PLAYER
ATTACHMENT
AII 25716-25817 (0404)
Application
2004 ACCORD
2- AND 4-DOOR
BUS cable
2 Latches
8 Flange nuts, 6 mm
2 Grommet screws
2 Wire ties
3 EPT sealers
2 Self-tapping screws, 4 x 12 mm
Bus Cable 2 Port (sold separately):
P/N 08A31-0F1-000
BUS cable 2 Port
(for XM-radio-equipped model only)
Publications No.
AII 25716-25817
Issue Date
APRIL 2004
1 of 9
08B06-SDA-1001-91
