Cmdn And Cmdn-C Installation14 - EDWARDS SYSTEMS TECHNOLOGY CMDN Installation Operation & Maintenance

1.4" (3.6 cm)
SYSTEM ANNUNCIATOR
BACK NEXT/ACK
NORMAL
ALARM
SUPERVISORY
TROUBLE
RESET
ALARM
DISABLE
SILENCE
TROUBLE
SILENCE
ENABLE
DRILL/
ALL CALL
EDWARDS SYSTEMS TECHNO LO GY
[CMDN-009.CDR]

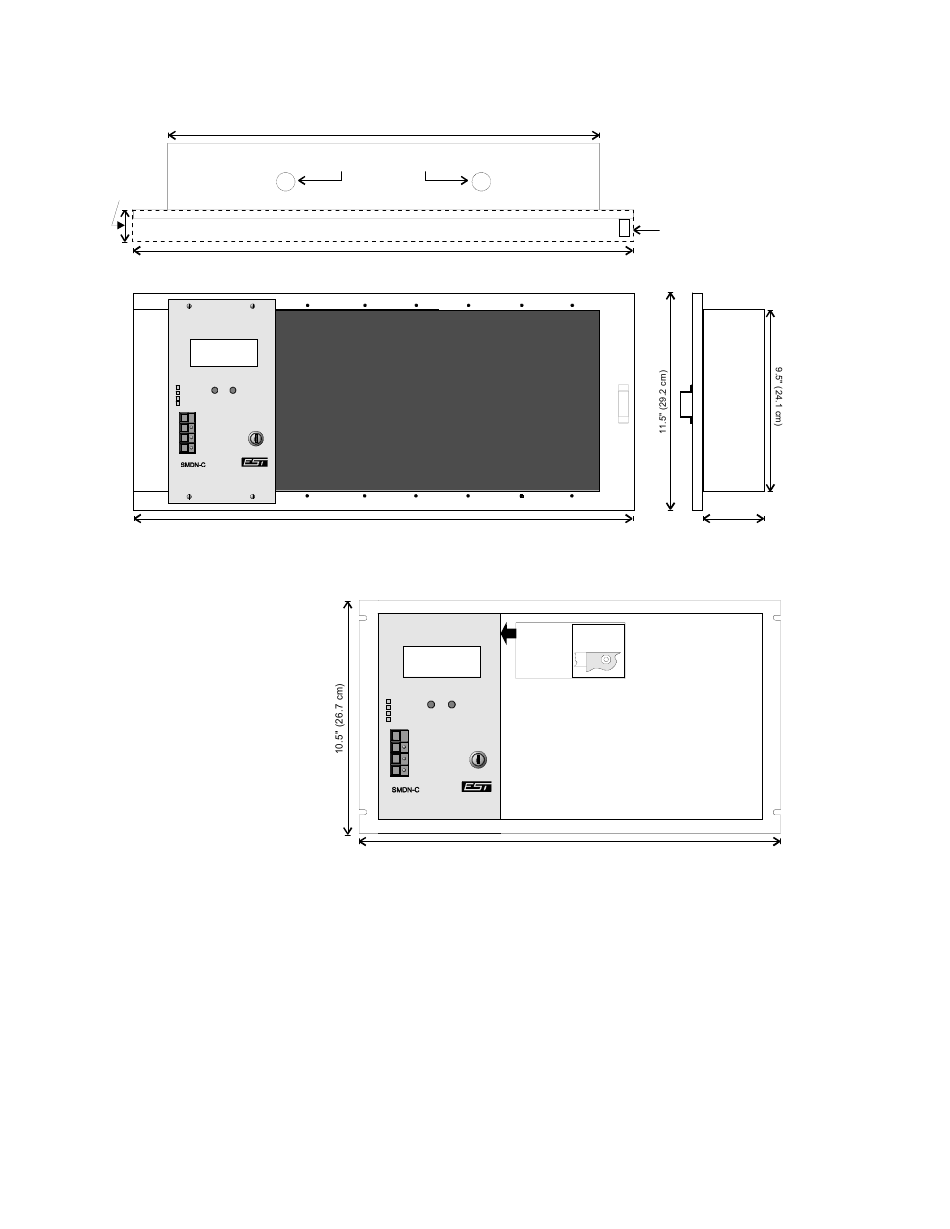

SMDN-C and SAN-8 Enclosure Installation
14
TOP VIEW
22.37" (56.8 cm)
KNOCKOUTS FOR 3/4"
CONDUIT (TOP & BOTTOM)
27.41" (69.6 cm)
FRONT VIEW
27.12" (68.9 cm)
SYSTEM ANNUNCIATOR
BACK NEXT/ACK
NORMAL
ALARM
SUPERVISORY
TROUBLE
RESET
ALARM
DISABLE
SILENCE
TROUBLE
SILENCE
ENABLE
DRILL/
ALL CALL
E DW AR DS SY STEM S TE CH NOLOGY
[CMDN-010.CDR]
SMDN-C and RSAN-6 Mounting Frame Installation
CMDN and CMDN-C Installation
The CMDN and CMDN-C mount in a stand-alone surface mount
enclosure (P/N 200032).
1. Mount the enclosure (P/N 200032) in the required location.
2. Install conduit in the knockouts provided.
3. Mount annunciator in enclosure with hardware provided.
4. Wire annunciator.
firealarmresources.com
COVER
MODULE REAR
MOUNTS VIEW
ON STUDS
WITH NUTS
FRONT VIEW - INSTALLED IN
CB 17, 31, 45 ENCLOSURE
19" (48.3 cm)
CMDN Manual
SIDE VIEW
2.5" (6.4 cm)
