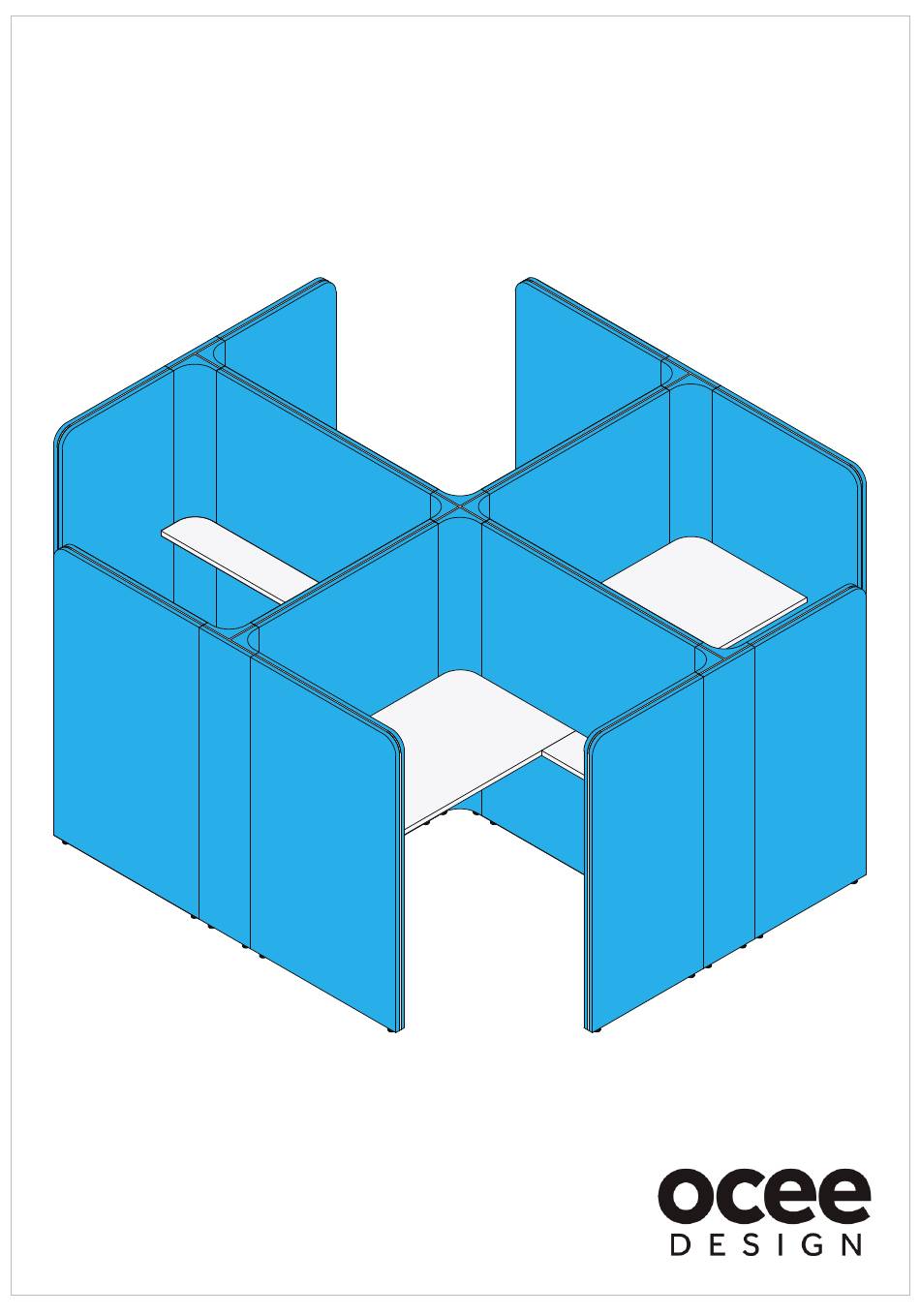

Page 1: Assembly Instructions
Assembly Instructions DEN.Cube 4 Person 1400w & 1600w Modules SASS-0074 A... - Page 2 Shell Components 1400w Den.Cube = 1050w Back Panel 850w Side Panel 3-Way Junction (90°) 4-Way Junction (90°) 1600w Den.Cube = 1250w Back Panel 650w Side Panel 1250w Back Panel Bottom Connector Link Worksurface Components 1400w Den.Cube = 1300w Worksurface Return Worksurface...
- Page 3 Tools Cushioned Mallet 13mm Spanner 4mm Allen Key/Phillips Screwdriver DWG No: SASS-0074 DEN.Cube Assembly Instructions Revision: A (03/11/15) Drawn by: CE Drawn date: 08/09/15...
- Page 4 Assembled Configuration Illustration (for Reference) DWG No: SASS-0074 DEN.Cube Assembly Instructions Revision: A (03/11/15) Drawn by: CE Drawn date: 08/09/15...
- Page 5 1 for method). Tie the 650w side panel (A-2) and the 3-way junction (B-1) together using a bottom connector link (Z). (See step 2 for method) DWG No: SASS-0074 DEN.Cube Assembly Instructions Revision: A (03/11/15) Drawn by: CE Drawn date: 08/09/15...
- Page 6 Tie the 850w side panel (E-1) and the 3-way junction (B-2) together using a bottom connector link (Z). DWG No: SASS-0074 DEN.Cube Assembly Instructions Revision: A (03/11/15) Drawn by: CE Drawn date: 08/09/15...
- Page 7 Tie the 850w side panel (E-2) and the 3-way junction (B-2) together using a bottom connector link (Z). (See step 2 for method) Bottom Connector Link 1400w Den.Cube = 1050w Back Panel 1600w Den.Cube = 1250w Back Panel Attach the 1050w/1250w (module dependent) back panel (C-1) to the 3-way junction Tap the top of the 1050w/1250w (module dependent) back panel (C-1) with a (B-2) as shown above (see step 1 for method).
- Page 8 Tie the 1250w back panel (F-1) of sub-assembly A-1 and the 4-way junction (D) together using a bottom connector link (Z). (See step 2 for method) DWG No: SASS-0074 DEN.Cube Assembly Instructions Revision: A (03/11/15) Drawn by: CE Drawn date: 08/09/15...
- Page 9 When fixing the small brackets (Y) to the structure, make sure to pass the machine screws (W) through the 7mm hole. When fixing the Large brackets (X) to the structure, make sure to pass the machine screws (W) through the horizontal slot. 1400w Den.Cube = 1300w Worksurface M6x20 Button 1600w Den.Cube = 1500w Worksurface...
