4. Remove the 4 screws connecting the monitor to the stand and lift off

the stand assembly (Figure R.2) the monitor is now ready for

mounting in an alternate manner.

5. Connect the AC cord and signal cable to the back of the monitor

(Figure R.3).

6. Reverse this process to reattach stand.

NOTE: Use only VESA-compatible alternative mounting method.

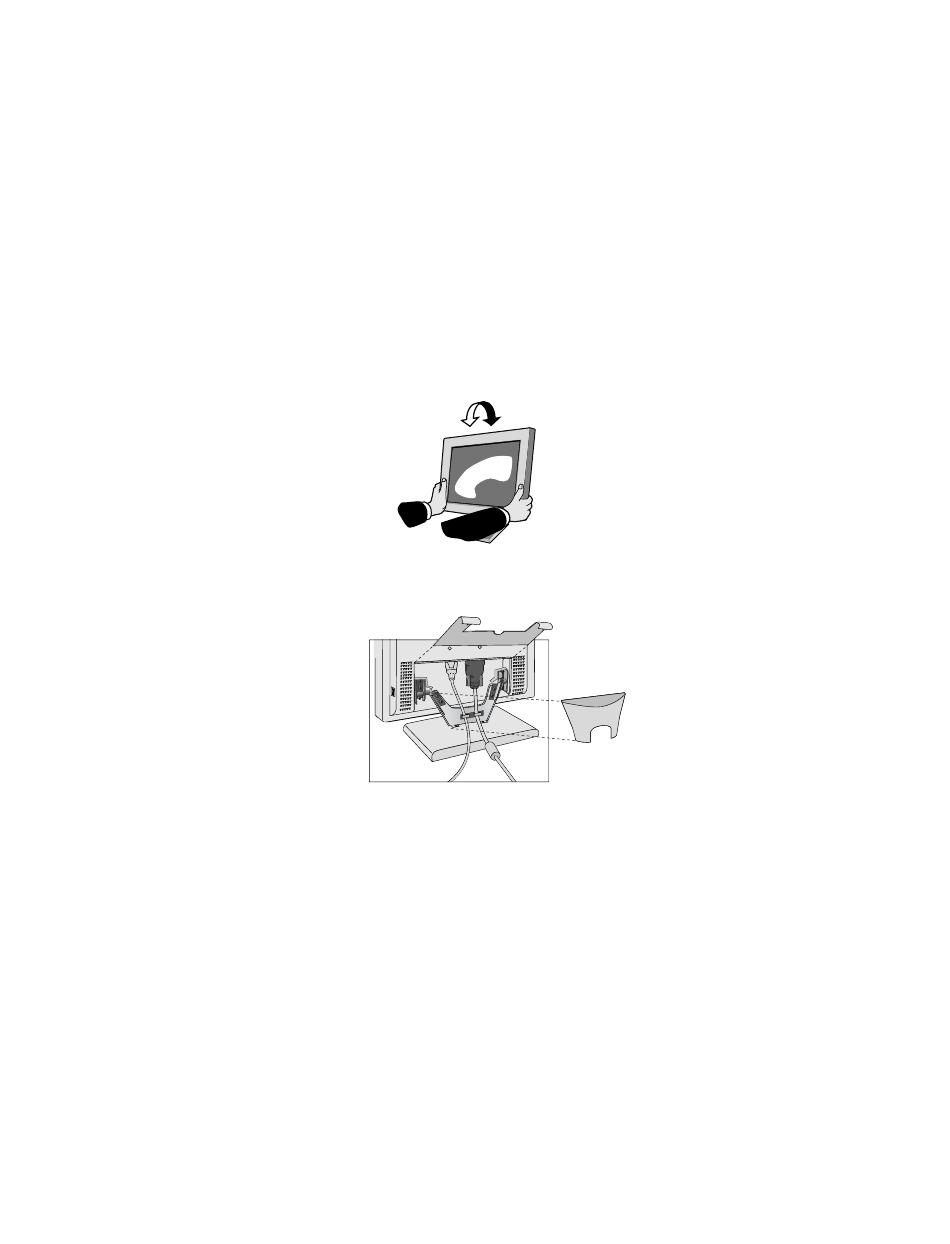

Figure TS.1

Figure R.1

English-6
