PANEL ASSEMBLY
9.1
Steel Panel Assembly

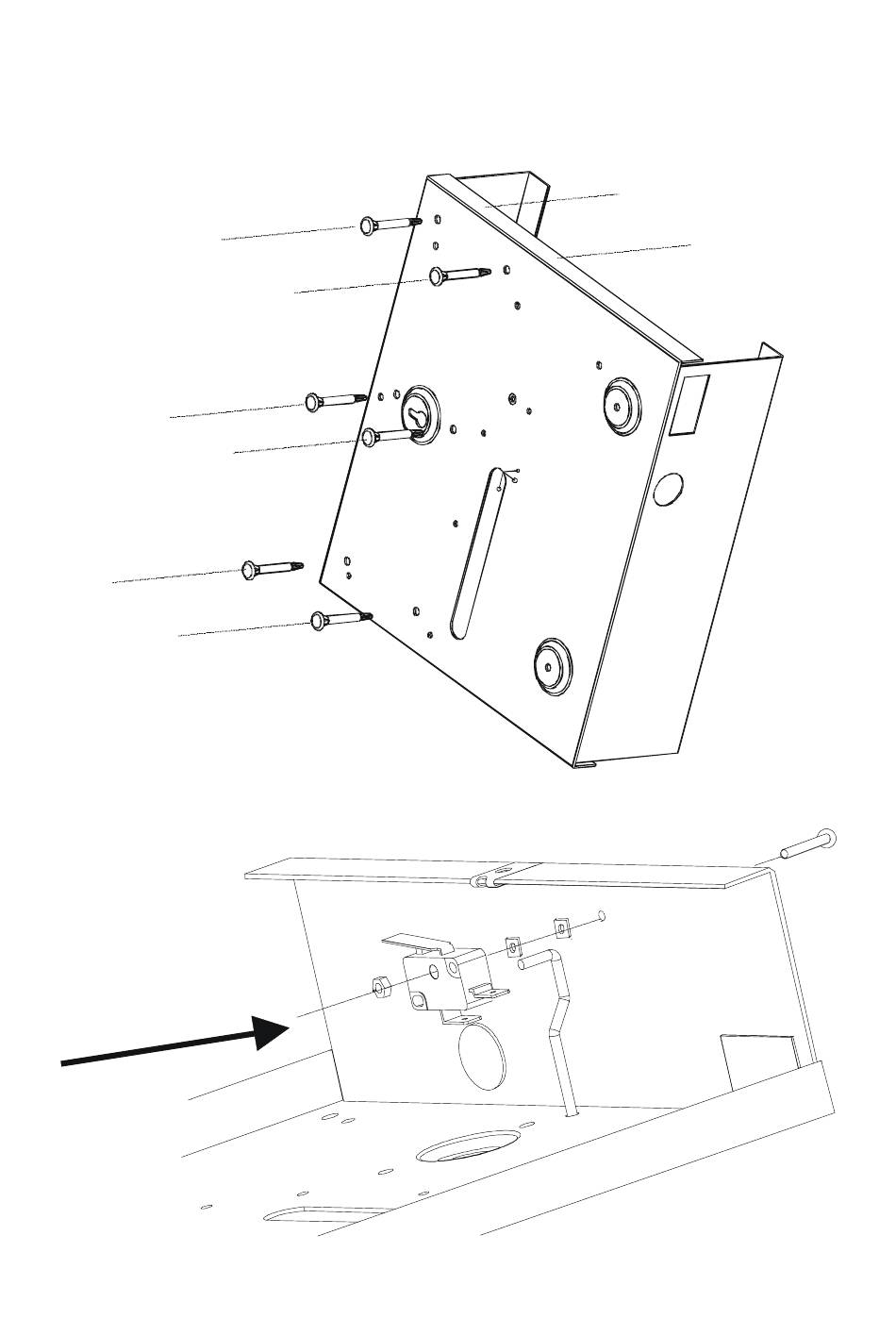

Take off the front cover and remove the cardboard packaging containing the control panel and PCB. Push in the PCB
support posts from the rear of the panel as shown.
If required assemble the tamper switch from the optional kit of parts as indicated.
If necessary place the transformer and fasten into position using the screws supplied with the transformer kit.
