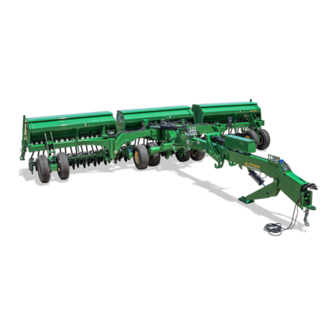

GREAT PLAINS BD7600 Quick Start Manual
Hide thumbs
Also See for BD7600:
- Operator's manual (96 pages) ,
- Manual (43 pages) ,
- Original instructions manual (36 pages)
Subscribe to Our Youtube Channel
Related Manuals for GREAT PLAINS BD7600
Summary of Contents for GREAT PLAINS BD7600
- Page 1 BD7600 Quick Start Guide DrillCommand ® Software Versions 02.02.04.00 through 02.03.05.03 195-835QS | Publication Date: 03/25/2022 | © 2022 Great Plains GreatPlainsAg.com...
-
Page 2: Covered Models
This Quick Start Guide will cover basic system inputs for BD7600 box drills with hydraulic drive. Required System Inputs... -
Page 3: Home Menu Overview
Toggles to offer up to eight sets of feedback data. Blockage Settings All eight sets of feedback data are customizable. Speed Settings Machine Settings soft key allows user to access Machine Configuration Configuration Settings menu. Diagnostics Great Plains | 195-835QS | 03/25/2022... -
Page 4: Speed Calibration
Implement. Please Note: Tapping the field will toggle to Please Note: This Quick Start Guide will populate/depopulate the green check mark. only support software versions 02.02.04.00 through 02.03.05.03. Great Plains | 195-835QS | 03/25/2022... - Page 5 Implement Speed Calibration menu, tap soft key. This begins the calibration operation. 10. To accept the displayed calibration results, tap soft key. 8. Continue to drive the tractor towards the end point marker. Great Plains | 195-835QS | 03/25/2022...
-
Page 6: Product Database
24 inches. speed calibration operation. Product Database Please Note: Great Plains does not recommend manual adjustment of the value in the impulse This section will provide instruction on how to manage field. Shown below. - Page 7 Add a Product Profile To add a product profile: 1. On the Home menu, tap soft key. 5. Tap soft key. 2. On the Machine Settings menu, tap soft key. Great Plains | 195-835QS | 03/25/2022...
- Page 8 Target Rate Increment Calibration Factor Metering System Selection (Split-Box Hoppers Only) Please Note: Tap the blue field and input the desired value for each field, the system automatically saves the updated information. Great Plains | 195-835QS | 03/25/2022...
- Page 9 Calibration Factor Tap the Calibration Factor field to enter the calibration factor from the BD7600 Material Rate manual for your drill. Split-Box Hoppers Only: Metering System 1 or 2 selection is required. Tap metering system soft key to toggle between metering system 1 and metering system 2.
- Page 10 Product Profiles 1 and 2 Refer to “” on page 10 for more information. Product profile 1 is preset from the Great Plains factory for single hopper configurations as wheat. Product profiles 1 and 2 are preset from the Great Plains factory for split-box hoppers as wheat and dry fertilizer.
- Page 11 Split-Box Hoppers Only: Associated Shoot Associated Shoot Tap the Associated Shoot field for each split-box hopper. At the Great Plains factory, the front metering system was preset as Shoot 1, and the rear metering drive is Shoot 2. Metering System Calibration This section will provide instruction to calibrate the metering system drive(s).
- Page 12 Please Note: Tapping the field will toggle to Single Hopper Configuration populate/depopulate the green check mark. Please Note: Split-Box Hopper configuration is shown above. Single Hopper configuration will only display Metering System 1. Great Plains | 195-835QS | 03/25/2022...
- Page 13 6. Tap the field speed field to input targeted value. 9. Tap tab. Please Note: 3-Section Drill, Split-Box Please Note: Great Plains recommends a Hopper configuration is shown above. field speed between 3-6 mph. Single Hopper configuration will only display Product Meter 1 (Shown below).
- Page 14 17 . Set upper slide gates to the correct position. 18. Close upper slide gates on rows which will not be used for calibration. 19. Release the seed cup funnels on the collection rows. Great Plains | 195-835QS | 03/25/2022...
- Page 15 Split-Box Hoppers. under the walkboard. On 3-section drills, the 31. Use the scale to weigh the collected sample. yellow calibration button is located on the center-section under the walkboard. Great Plains | 195-835QS | 03/25/2022...
- Page 16 Split-Box Hoppers. 35. Use the scale to weigh the second collected sample. 36. Tap tab. Please Note: Calibration results will not be saved if you tap soft key. Great Plains | 195-835QS | 03/25/2022...
- Page 17 40 for each drill section, and then continue to step 42. Split-Box Hopper Configuration Please Note: Tap the blue field and input the desired value for each field, the system automatically saves the updated information. Great Plains | 195-835QS | 03/25/2022...
- Page 18 Results will not be saved. Calibration Factor Tap the Calibration Factor field to input the calibration factor from the BD7600 Material Rate manual. Please Note: It is possible to enter these values within other menus, however Great Plains recommends using these instructions to ensure all required system inputs are entered.
-
Page 19: Field Operation
These related documents are Parts Manual (195-615P) located on our website. GreatPlainsAg.com *Offers generalized user support. Content has been developed to provide a broad explanation of DrillCommand software functions across all kinds of equipped Great Plains products. Great Plains | 195-835QS | 03/25/2022... - Page 20 Great Plains, Mfg. 1525 E. North St. P.O. Box 5060 Salina, KS 67402...
