Insignia NS-BC48SS7 User Manual
48-can beverage cooler
Hide thumbs
Also See for NS-BC48SS7:
- Quick setup manual (2 pages) ,
- User manual (20 pages) ,
- Installation manual
Related Manuals for Insignia NS-BC48SS7
Summary of Contents for Insignia NS-BC48SS7

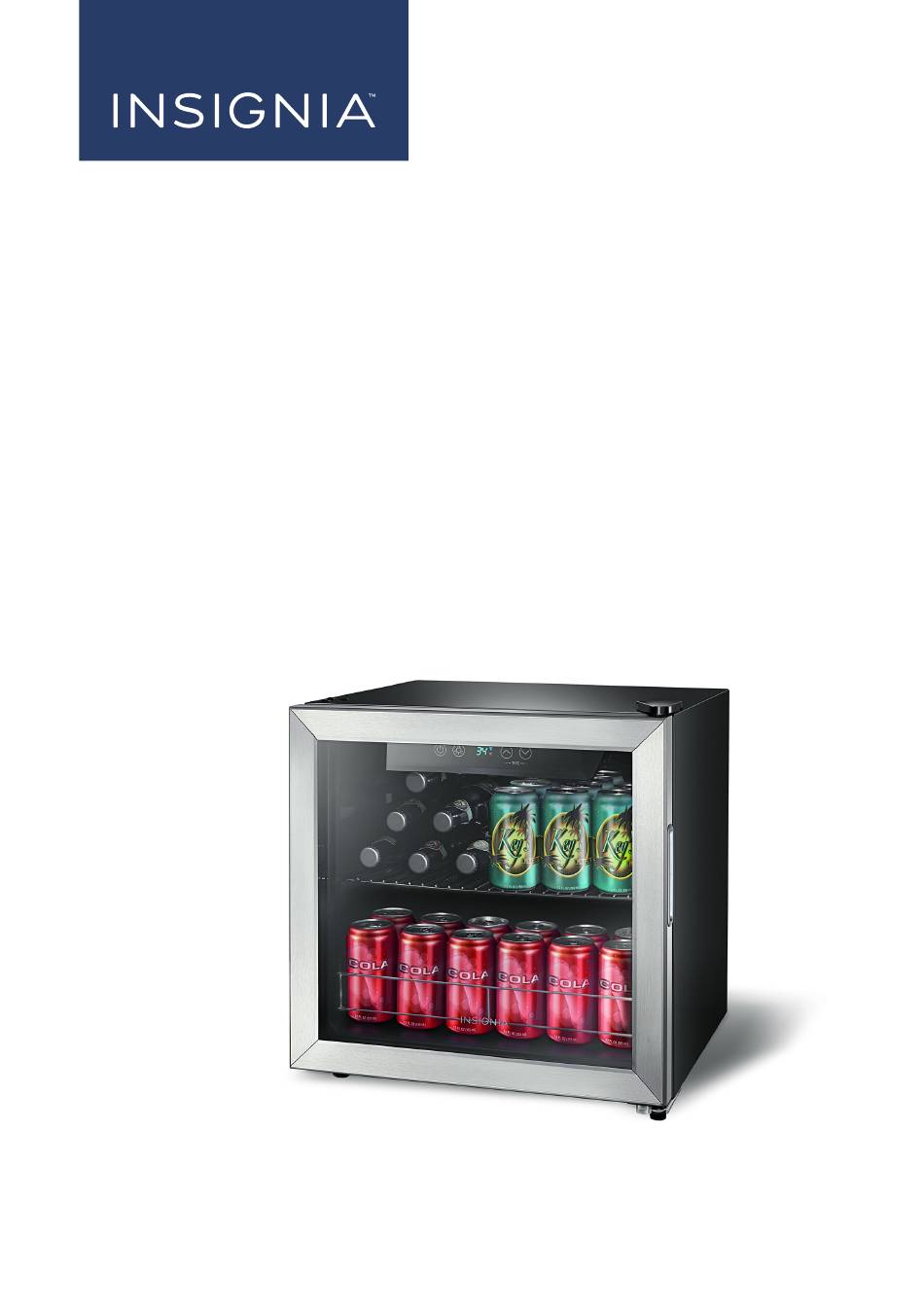

- Page 1 USER GUIDE 48-Can Beverage Cooler NS-BC48SS7 Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
Contents IMPORTANT SAFETY INSTRUCTIONS ..........3 Grounding requirement . -
Page 3: Important Safety Instructions
48-Can Beverage Cooler IMPORTANT SAFETY INSTRUCTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your beverage cooler. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your beverage cooler. - Page 4 Unplug the power cord by holding the plug, never by pulling the cord. Do not turn the appliance on or off by plugging or unplugging the power cord. Turn off the appliance before unplugging it. Refer all servicing to qualified service personnel. Servicing is required when the appliance has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the appliance, the appliance has been exposed to rain or moisture, does not operate normally, or has...
-
Page 5: Grounding Requirement
48-Can Beverage Cooler Do not use an extension cord with this beer and beverage cooler. If the power cord is too short, have a qualified electrician install an outlet near the beer and beverage cooler. Use of an extension cord can negatively affect the beer and beverage cooler’s performance. -
Page 6: Package Contents
Package contents • 48-can beverage cooler • Removable chrome shelf • User Guide Components Temperature control Glass door Shelves Steel bar (to prevent cans Leveling feet from falling out) Setting up your beverage cooler Before using your beverage cooler • Remove the exterior and interior packing. •... -
Page 7: Leveling Your Beverage Cooler
48-Can Beverage Cooler Leveling your beverage cooler • Your beverage cooler must be level in order to function correctly. If your beverage cooler is not leveled during installation, the door may not close or seal correctly, causing cooling, frost, or moisture problems. •... -
Page 8: Using Your Beverage Cooler
Using your beverage cooler Temperature Temperature Standby key Light key Display up key down key Display When you plug in your beverage cooler for the first time, the display screen turns on for three seconds, then the start-up tone rings. CAUTIONS: •... -
Page 9: Reversing The Door On Your Cooler
48-Can Beverage Cooler Reversing the door on your cooler All parts removed must be saved to do the reinstallation of the door. Remove top cap, then remove the three screws that hold the upper hinge (right side) to the top of the cabinet. Carefully remove the top hinge, then lift the door up off of the bottom hinge and place it on a padded surface to prevent scratching it. - Page 10 Remove the three screws that hold the bottom hinge to the lower part of the cabinet. Re-install the bottom hinge on the left corner of the cabinet. On bottom edge of the door, transfer door stop bracket and bushing to holes on opposite side.
-
Page 11: Filling Your Beverage Cooler
48-Can Beverage Cooler Filling your beverage cooler The following illustrations are provided to show the best way to fill your cooler for maximum storage: Inner row Outer row Top shelf - 13 cans Top shelf - 12 cans Bottom shelf - 6 cans Bottom shelf - 17 cans Auto Defrosting During the auto defrosting process, the compressor shuts down and the frost melts... -
Page 12: Maintaining Your Beverage Cooler
Maintaining your beverage cooler Your beverage cooler is designed for year-round use with only minimal cleaning and maintenance. When you first receive it, wipe the case with a mild detergent and warm water, then wipe dry with a dry cloth. Do this periodically to keep your beverage cooler looking new. CAUTION: To prevent damage to the finish, do not use: •... -
Page 13: Troubleshooting
48-Can Beverage Cooler Troubleshooting CAUTION: Do not try to repair your beverage cooler yourself. Doing so invalidates the warranty. Fault indication If a fault is detected, the display shows one of the following codes: Fault code Description Temperature sensor fault Defroster sensor fault Note: When the above faults are displayed, do not attempt to repair your cooler by yourself. - Page 14 PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION My beverage Your cooler is not level. Level your beverage cooler with the leveling cooler makes feet. unusual noises or The body of your Move your beverage cooler out from the wall. vibrates beverage cooler is touching a wall.
-
Page 15: Specifications
48-Can Beverage Cooler Specifications Dimensions (WxHxD) 18.9 × 17.3 × 19.4 in. (48 × 44 × 49.2 cm) Weight 50.7 lbs (23 kg) Power requirements 115 V~60 Hz-65 W Current 0.8 A Operating temperature 34°-50° F (1° to 10° C) www.insigniaproducts.com... -
Page 16: One-Year Limited Warranty
Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and are not returned to you. - Page 17 • Failures or Damage caused by any contact including but not limited to liquids, gels or pastes. REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY FOR BREACH OF WARRANTY. INSIGNIA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS.
- Page 18 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. V5 ENGLISH ©2020 Best Buy. All rights reserved.
