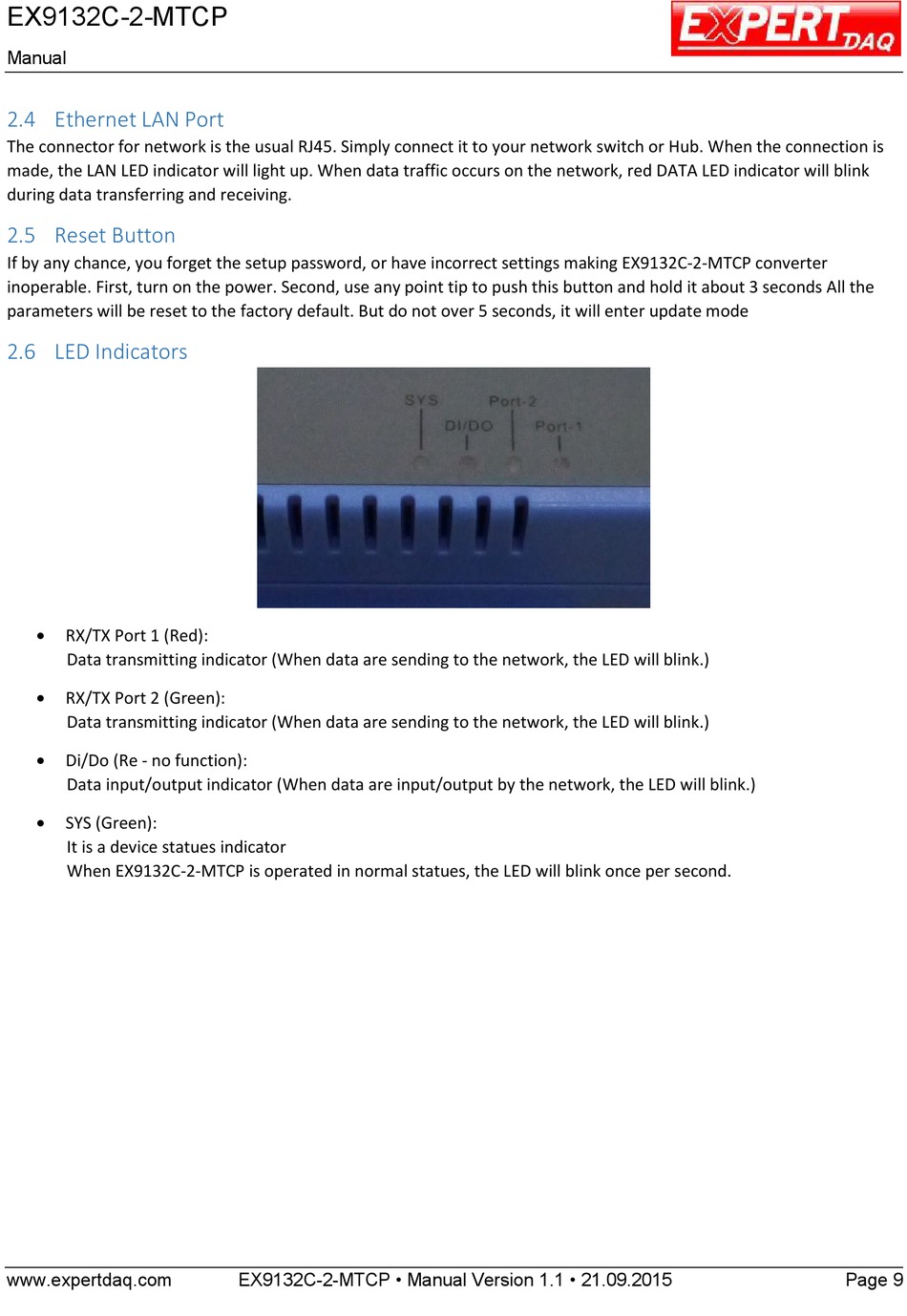

2.4 Ethernet LAN Port

The connector for network is the usual RJ45. Simply connect it to your network switch or Hub. When the connection is
made, the LAN LED indicator will light up. When data traffic occurs on the network, red DATA LED indicator will blink
during data transferring and receiving.

2.5 Reset Button

If by any chance, you forget the setup password, or have incorrect settings making EX9132C-2-MTCP converter
inoperable. First, turn on the power. Second, use any point tip to push this button and hold it about 3 seconds All the
parameters will be reset to the factory default. But do not over 5 seconds, it will enter update mode

2.6 LED Indicators


RX/TX Port 1 (Red):
Data transmitting indicator (When data are sending to the network, the LED will blink.)

RX/TX Port 2 (Green):
Data transmitting indicator (When data are sending to the network, the LED will blink.)

Di/Do (Re - no function):
Data input/output indicator (When data are input/output by the network, the LED will blink.)

SYS (Green):
It is a device statues indicator
When EX9132C-2-MTCP is operated in normal statues, the LED will blink once per second.
www.expertdaq.com EX9132C-2-MTCP • Manual Version 1.1 • 21.09.2015 Page 9
