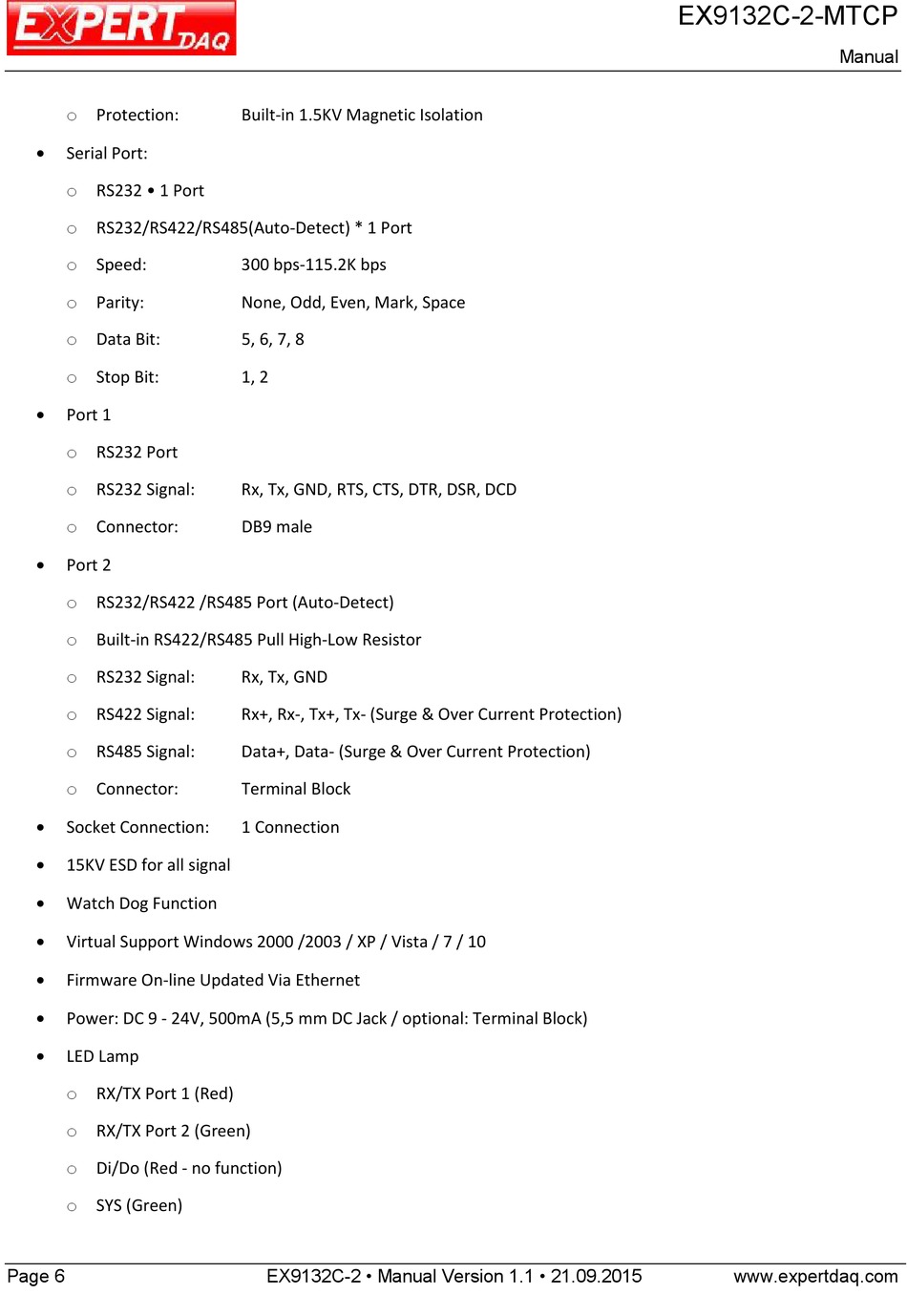

Expert EX9132C-2-MTCP Operation Manual page 6

o Protection:

Serial Port:
o RS232 • 1 Port
o RS232/RS422/RS485(Auto-Detect) * 1 Port
o Speed:
o Parity:
o Data Bit:
o Stop Bit:

Port 1
o RS232 Port
o RS232 Signal:
o Connector:

Port 2
o RS232/RS422 /RS485 Port (Auto-Detect)
o Built-in RS422/RS485 Pull High-Low Resistor
o RS232 Signal:
o RS422 Signal:
o RS485 Signal:
o Connector:

Socket Connection:

15KV ESD for all signal

Watch Dog Function

Virtual Support Windows 2000 /2003 / XP / Vista / 7 / 10

Firmware On-line Updated Via Ethernet

Power: DC 9 - 24V, 500mA (5,5 mm DC Jack / optional: Terminal Block)

LED Lamp
o RX/TX Port 1 (Red)
o RX/TX Port 2 (Green)
o Di/Do (Red - no function)
o SYS (Green)
Page 6
Built-in 1.5KV Magnetic Isolation
300 bps-115.2K bps
None, Odd, Even, Mark, Space
5, 6, 7, 8
1, 2
Rx, Tx, GND, RTS, CTS, DTR, DSR, DCD
DB9 male
Rx, Tx, GND
Rx+, Rx-, Tx+, Tx- (Surge & Over Current Protection)
Data+, Data- (Surge & Over Current Protection)
Terminal Block
1 Connection
