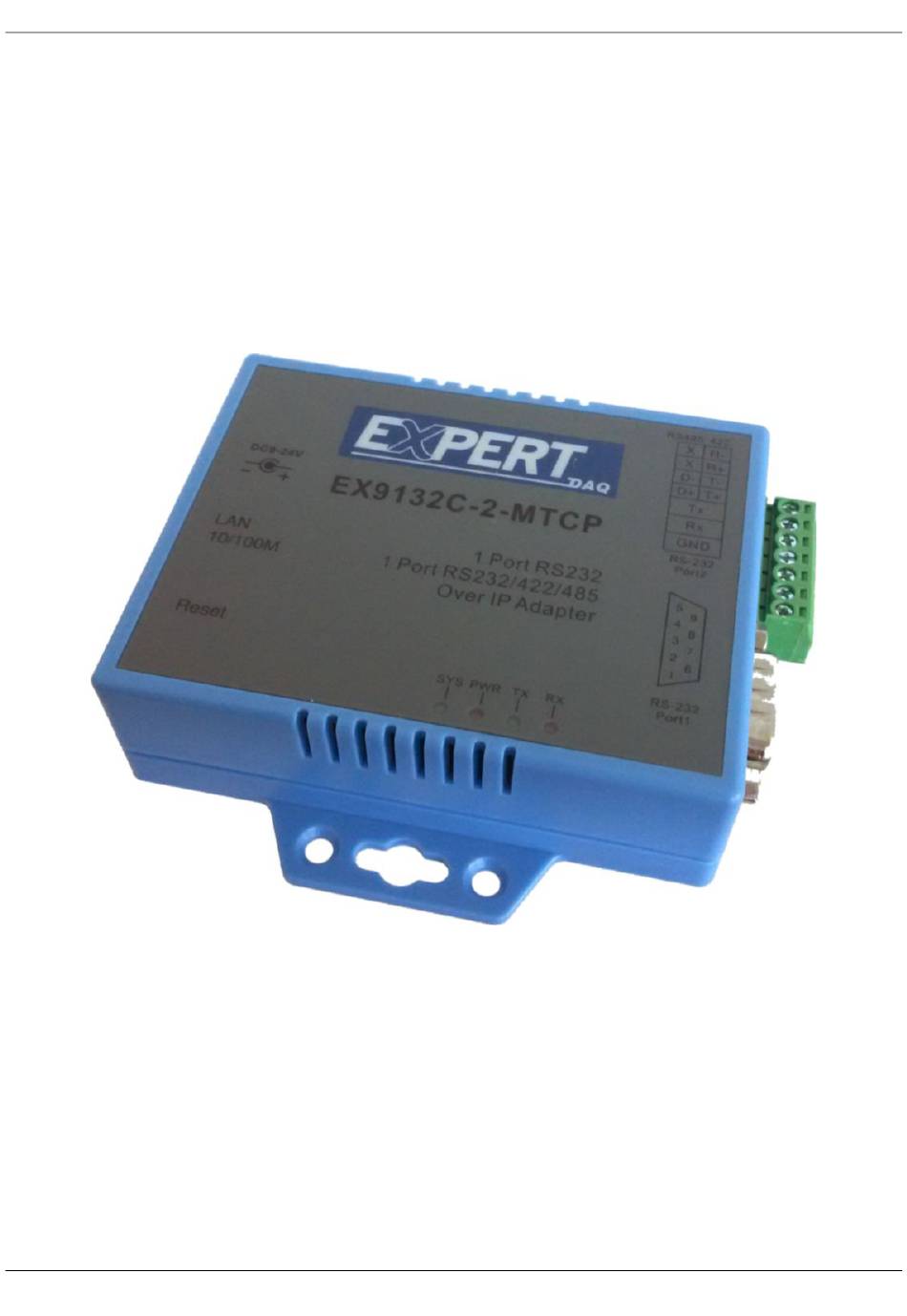

  • Page 1 Operation Manual of EX9132C-2-MTCP Modbus TCP to Modbus RTU/ASCII Converter Version 1.0.1 21.09.2015...

  • Page 2: Table Of Contents

    Package Checklist ..........................3 Block Diagram ............................ 4 Product Features ..........................4 Product Specifications ........................5 EX9132C-2-MTCP Description & Installation ..................... 8 Top view ............................. 8 Right Side ............................8 Power Supply(Left Side) ........................8 Ethernet LAN Port ..........................9 Reset Button ............................

  • Page 3: Introduction

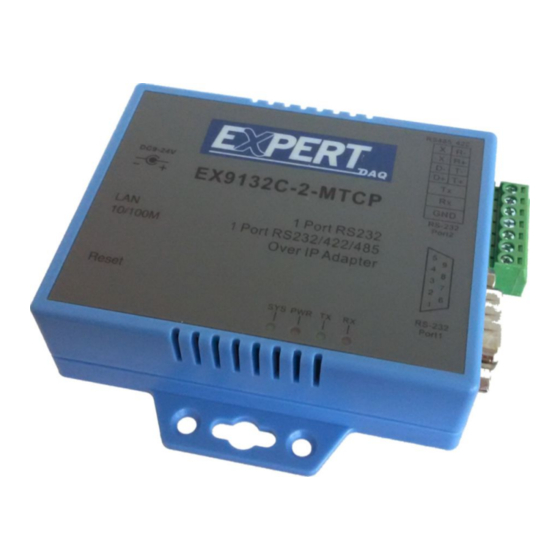

    EX9132C-2-MTCP is a serial device server with two serial ports as one is a RS232 port and another is a RS232/RS422/RS485 (Auto-Detect) port and it provides one socket connection port. This operation manual will guide you step by step to learn the various functions of the EX9132C-2-MTCP converter.

  • Page 4: Block Diagram

    Data Conversion between RS232 and RS422/RS485 and Ethernet EX9132C-2-MTCP converter device (RS232 • 1 port, RS232/RS422∕RS485 • 1 port ) data/signal into the Modbus TCP/IP package data/signal and send them out with the Ethernet Data Stream; or convert the Modbus TCP/IP package data/signal into serial device data/signal.

  • Page 5: Product Specifications

    Server / Client Dual Modes EX9132C-2-MTCP converter device can be configured as network server or network client. In the client mode, it can be installed in network which is protected by NAT router or firewall without a real IP address.
  • Page 6 EX9132C-2-MTCP Manual o Protection: Built-in 1.5KV Magnetic Isolation  Serial Port: o RS232 • 1 Port o RS232/RS422/RS485(Auto-Detect) * 1 Port o Speed: 300 bps-115.2K bps o Parity: None, Odd, Even, Mark, Space o Data Bit: 5, 6, 7, 8...
  • Page 7 Dimensions: 115 * 90 * 27 mm (W * D * H)  Weight: 140 g  RoHS: Compliant with RoHS  Regulatory Approvals: FCC, CE  Warranty: 1 year www.expertdaq.com EX9132C-2-MTCP • Manual Version 1.1 • 21.09.2015 Page 7...

  • Page 8: Ex9132C-2-Mtcp Description & Installation

    2.3 Power Supply(Left Side) EX9132C-2-MTCP converter device is powered by a single 9/12/24VDC (inner positive/outer negative) power supply and 500mA of current. A suitable power supply adapter is part of the packaging. Connect the power line to the power jack at the left side of EX9132C-2-MTCP converter device and put the adapter into the socket.

  • Page 9: Ethernet Lan Port

    2.5 Reset Button If by any chance, you forget the setup password, or have incorrect settings making EX9132C-2-MTCP converter inoperable. First, turn on the power. Second, use any point tip to push this button and hold it about 3 seconds All the parameters will be reset to the factory default.

  • Page 10: Wiring Architecture

    EX9132C-2-MTCP Manual 2.7 Wiring Architecture RS422/RS485 Wiring Architecture RS232 Wiring EX9132C-2-MTCP Serial Device _____________ _____________ _____________ LAN Cable RS232 (RTS/CTS) Wiring EX9132C-2-MTCP Serial Device _____________ _____________ _____________ LAN Cable _____________ _____________ RS232 (RTS/CTS, DTR/DSR) Wiring EX9132C-2-MTCP Serial Device _____________ _____________...

  • Page 11: Ex9132C-2-Mtcp Converter Configuration

    There are two ways for refreshing the status of existing devices. You may select the item “View” to refresh the status of existing devices on LAN. Another is to click the icon as red color remark as below. EXBrowser will send another query to get updated information. www.expertdaq.com EX9132C-2-MTCP • Manual Version 1.1 • 21.09.2015 Page 11...

  • Page 12: Exbrowser "Modify Ip

    EX9132C-2-MTCP Manual Note: Always run the “Refresh” after any data change.  File -> Exit Alt+F4 Exit from the program 3.4 EXBrowser “Modify IP”  Modify IP -> Dialog Frame To click the device on the existing devices list in the EXBrowser table and then the function bar will be enable.

  • Page 13: Exbrowser "Modify Mac

    3.5 EXBrowser “Modify MAC”  Modify MAC -> Dialog Frame To click the device on the existing devices list in the EXBrowser table and then the function bar will be enabled. www.expertdaq.com EX9132C-2-MTCP • Manual Version 1.1 • 21.09.2015 Page 13...

  • Page 14: Web Browser Configuration

    EX9132C-2-MTCP Manual To press Third icon of “Modify MAC” on function bar and a dialog frame table will be shown  Input Password -> Dialog Frame After click “Confirm” button and then “Input Password” request will be pop-up on screen (see Figure 4.8).
  • Page 15 It is a product serial number code in the converter device and has been provided by factory.  Ethernet MAC Address Converter is a unique MAC (Media Access Control) address used by Ethernet. www.expertdaq.com EX9132C-2-MTCP • Manual Version 1.1 • 21.09.2015 Page 15...

  • Page 16: Parameter Setting Page

    If you could not login, it means you have to key in the password. If you do not know the password you can reset the EX9132C-2-MTCP (First, turn on the power. Second, use any point tip to push this button and hold it about 3 seconds All the parameters will be reset to the factory default.
  • Page 17 EX9132C-2-MTCP Manual www.expertdaq.com EX9132C-2-MTCP • Manual Version 1.1 • 21.09.2015 Page 17...
  • Page 18 EX9132C-2-MTCP Manual  Parameter Setting Page Field Description o IP Address IP address of the converter, 4 numbers (1-255) separated by '.'. Don’t let it conflict with other devices in the network. If DHCP client mode is enabled and a DHCP server is present in the network, this field will be assigned by DHCP server automatically.
  • Page 19 TCP Server: TCP protocol, passive open, to be connected from the TCP clients. o TCP Client: TCP protocol, active open, connect to the TCP server specified below. o UDP Client: UDP protocol, connectionless. www.expertdaq.com EX9132C-2-MTCP • Manual Version 1.1 • 21.09.2015 Page 19...
  • Page 20 EX9132C-2-MTCP Manual  Remote IP address Server IP address of the TCP Server or UDP Client (in TCP Server mode leave empty or set to “0.0.0.0”).  Remote socket port Port of the TCP Server or UDP Client (in TCP Server mode leave empty or set to 0).

  • Page 21: Controller Updated

    Please turn on the power and then use any point tip to push “Reset” button for 5 seconds. The password will be reset to the factory default as “empty”. www.expertdaq.com EX9132C-2-MTCP • Manual Version 1.1 • 21.09.2015 Page 21...

  • Page 22: Appendix A Faq

    EX9132C-2-MTCP Manual 4 Appendix A FAQ Q. Why can’t the EXBrowser.exe detect the converter on the network? A. Please check  if the power is properly plugged to the converter.  if the network cable is properly connected between the converter and the Hub.
  • Page 23 RS422 Pin Assignment The pin assignment scheme for a 4-pin RS422 is given below. PIN 3: T- PIN 4: T+  RS485 Wiring Diagram Serial Device EX9132C-RS485 3 D+ 4 D- www.expertdaq.com EX9132C-2-MTCP • Manual Version 1.1 • 21.09.2015 Page 23...
