- Page 1 EX-9132C-2RS485 Serial to TCP/IP Converter Version 1.2,14th Nov. 2012...
-
Page 2: Table Of Contents
……………………………………………… Overview ……………………………………………………… Package Checklist ……………………………………………… 4 Block Diagram ………………………………………………… Features ………………………………………………………… 7 Product Specifications ………………………………………… EX-9132C-2RS485 Description ....…………… 10 Product Panel Views …………………………………………… 10 Top Side ………………………………………………………… 10 Right Side ……………………………………………………… Left Side ………………………………………………………… 12 LED Indicators ………………………………………………… 13 Wiring Architecture ……………………………………………... - Page 3 Configuration EX-9132C-2RS485 ......……… 16 Initial IP Configuration ...……………………………………… 16 Device Management Utility of EXBrowser …………………… 16 Menu “View” …………………………………………………… 18 Menu “Config” ………………………………………………… 18 Web Console Configuration ………………………………… Controller Status ……………………………………………… Controller Setup ……………………………………………… Controller Updated …………………………………………… Factory Default Setting ………………………………………...
-
Page 4: Introduction

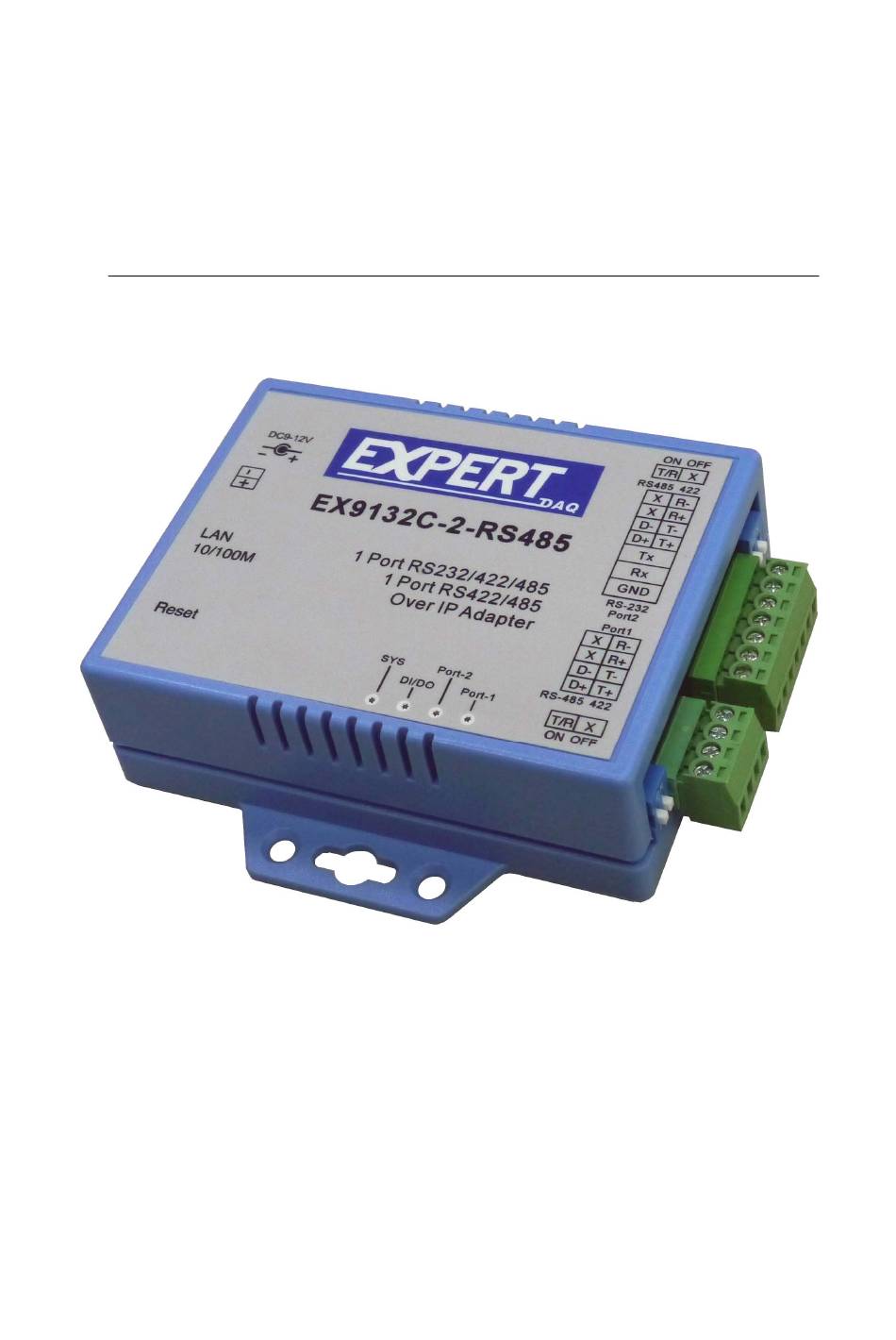

EX-9132C-2RS485 is a full set converter device with two serial ports as one is a RS-485/422 port and another is a RS-232/422/485 (Auto-Detect) and it provides one socket connection port. -
Page 5: Package Checklist
Series converters ensure the compatibility of network software ARM Cortex-M3 CPU that uses a standard network API (Winsock or BSD Sockets) by providing TCP Server Mode, TCP Client Mode, and UDP Mode. Model EX-9132C-2RS485 provides 1 socket connection for remote management. Series’ Virtual COM... -
Page 6: Block Diagram
Block Diagram Low-cost devices usually are equipped with low speed processors and limited memories. In reality, they have neither the capability nor practicality to manage complicated network TCP/IP protocols. The ARM Cortex™-M3 32-bit processor has been specifically developed to provide a high-performance, low-cost platform for a broad range of applications including microcontrollers, automotive body systems, and industrial control systems, networking by converting data stream between network TCP/IP and popular serial port signals. - Page 7 multiply and hardware divide to deliver an outstanding efficiency of 1.25 DMIPS/MHz. The ARM Cortex-M3 processor also implements the new Thumb®-2 instruction set architecture, which combined with features such as unaligned data storage and atomic bit manipulation delivers 32-bit performance at a cost equivalent to modern 8- and 16-bit devices.
-
Page 8: Features
□ Server / Client Dual Modes □ EX-9132C-2RS485 converter device can be configured as network server or network client. In the client mode, it can be installed in network which is protected by NAT router or firewall without a real IP address. -
Page 9: Product Specifications
Product Specifications CPU : ARM Cortex™-M3 32-bit processor , 50MHz RAM : 64K Bytes SRAM ROM : 256K Bytes Flash ROM Ethernet ● Port Type : RJ-45 Connector ● Speed : 10 /100 M bps ( Auto Detect ) ● Protocol : ARP, IP, ICMP, UDP, TCP, HTTP, DHCP, ICMP ●... - Page 10 RS-485 Signals : Data+ , Data- (Surge & Over Current Protection) Built-in RS422/RS485 Pull High-Low Resistor Digital I/O Port Digital TTL I/O * 8 pins Socket Port Connection：1 Connection 15KV ESD for all signal Watch Dog Function Virtual Support Windows 2000 /2003 / XP / Vista / 7 Firmware On-line Updated Via Ethernet Power：DC 9 –...
-
Page 11: Ex-9132C-2Rs485 Description
EX-9132C-2RS485 Description & Installation Product Panel Views Top Side DC-In Serial I/O Port Power Outlet RS-232/485/RS-422 Ethernet LAN Port Reset Button Serial I/O Port RS-485/422 LED Indicators... -
Page 12: Right Side
Connect the serial data cable between the converter device and the serial devices. Follow the parameter setup procedures to configure the converter (see the following chapters). RS-232/485/422 RS-485/422 Digital I/O Through , D I/O can transform the status of sensor into the EX-9132C-2RS485 TCP/IP package data send Ethernet Data Stream... -
Page 13: Left Side
Connect the power line to the power jack at the left side of EX-9132C-2RS485 TCP/IP converter device and put the adapter into the socket. If the power is properly supplied, the “SYS” red color LED will be on.. -
Page 14: Led Indicators
Port2 data transmitting indicator (When data are sending to the network, the LED will blink.) DI/DO (Red): Data input/output indicator (When data are input/output by the network, the LED will blink.) SYS (Green): EX-9132C-2RS485 It is a device statues indicator (When is operated in normal statues, the LED will blink once per second.) -
Page 15: Wiring Architecture
Wiring Architecture RS-232 Wiring Architecture RS-422/RS-485 Wiring Architecture... - Page 16 When you finish the steps mentioned above and the LED indicators are as shown in above diagram, the converter is installed correctly. You can use the Setup Tool “EXBrowser.exe” to setup the IP Address. To proceed the advanced parameter setup, please use a web browser (IE or Netscape) to continue the detailed settings.
-
Page 17: Ex-9132C-2Rs485
□ EXBrowser “Modify MAC” □ Device Management Utility Note:EXBrowser also can use on EX-9132C-2RS485 On PC we provide a Device Management Utility named “EXBrowser.exe” which is an executable program in Windows 32-bit environments. EXBrowser setup tool is used to detect and setup the installed converters. It uses UDP broadcast packets to query and... - Page 18 EXBrowser that do not belong to the same subnet, it still works fine. □ □ Broadcast packets can not pass routers. EXBrowser can only be used to monitor □ devices with computer running EXBrowser in the same segment of local area network. Note:EXBrowser also can use on EX-9132C-2RS485 (Figure 3.1)
-
Page 19: Menu "View
EXBrowser “View” □ □ View -> Refresh □ There are two ways for refreshing the status of existing devices. You may select the item “View” to refresh the status of existing devices on LAN. Another is to click the icon as red color remark as below. EXBrowser will send another query to get updated information. - Page 20 (Figure 3.4) Assign an IP Address with the same Subnet Mask of your computer, avoiding any IP conflict with other network devices. When you press “Confirm” button, the IP address will be refreshed in 2~3 seconds. (Figure 3.5) After click “Confirm” button and then “Input Password” request will be pop-up on screen (see Figure 3.5).
- Page 21 EXBrowser “Modify MAC” □ □ Modify MAC -> Dialog Frame □ To click the device on the existing devices list in the EXBrowser table and then the function bar will be enabled. To press Third icon of “Modify MAC” on function bar and a dialog frame table will be shown (see Figure 3.7).
-
Page 22: Web Console Configuration
Web Browser Configuration The following topics are covered in this chapter: □ □ Serial To Ethernet Converter Setup □ ● Login Setting ● Login Setting Page Field Description ● Parameter Setting ● Parameter Setting Page Field Description Login Setting In addition to basic IP address and subnet mask, specific device settings can be set through HTTP protocol with popular browsers, e.g. - Page 23 of browsers. (Figure 3.9) Login Setting Page Field Description □ □ System time elapsed □ The time elapsed since start of this device in [Day Hour : Minute : Second] format. This information can be useful in identifying the reliability of system. □...
- Page 24 □ □ Ethernet MAC Address □ Converter is a unique MAC (Media Access Control) address used by Ethernet. □ □ Password □ This field is the administration password for authentication. Factory default is “empty”. However, it is not recommended to leave it empty in field operation. If you could not login, it means you have to key in the password.
-
Page 25: Controller Setup
Parameter Setting Page □ □ The Parameter Setting Page □ Type the correct password in the “Password” field and click the “Confirm” button in the “Login Setting” page, then the “Parameter Setting” page will be shown (see Figure 3.10). Note: If you forget the password or can’t login successfully, please contact the manufacturer directly. - Page 26 □ □ Parameter Setting Page Field Description □ □ □ IP Address □ The IP address of converter device, 4 digits separated by '.' Don’t let it conflict with the other devices on the network. If DHCP client mode is enabled and there's a DHCP server on the network, this field will be assigned by DHCP server automatically.
- Page 27 □ □ Device ID Report □ You may “Enable” or “Disable” to collect the device ID report and assigne ID number for the converter devices. Available ID is “0 ~ 65535”. In TCP mode, if this parameter is enabled, every time when the socket is connected, e-Net TCP/IP converter will immediately report its device ID in the following formats: Serial #1...
- Page 28 The server IP address and socket port would be connected in TCP Server, TCP Client and UDP Client mode for a certain serial port. □ □ Remote socket port □ The server socket port would be connected in TCP Client and UDP Client mode for a certain serial port.
- Page 29 A socket port is assigned for the serial port. It’s a 16-bit numbers, ranging from 1 to 65535. Because the numbers below 1000 are used for specific purposes (e.g. 80 is for HTTP protocol), we suggest you use the numbers larger than 1000. Generally the port number 4660 is used for the serial communication.
- Page 30 It is for setting a packet collecting period of the device serial port’s Tx and Rx. The parameter can be from “0 to 999” and the time unit is “mSec”. □ □ Interface of serial I/O □ RS-232: TxD, RxD for data stream, no flow control RS-232 (RTS/CTS): TxD, RxD for data stream, RTS/CTS for flow control RS-485 (Half-duplex): Half-duplex RS-485 interface, RTS for...
-
Page 31: Controller Updated
Controller Updated Press “Update” Button after finish the detailed parameter setting. The converter will save all parameters into internal non-volatile memory and then reboot (see Figure 5.3). It takes about 5 seconds to complete the whole process, and a new login page will be presented (see Figure 5.1). -
Page 32: Factory Default Setting
Factory Default Setting If you forget the setup password or have incorrect settings making the converter inoperable, there are two ways to reset the setting and the following procedures can be used to reset all settings to factory default: 1. Please turn on the power and then use any point tip to push “Reset” button for 5 seconds. -
Page 33: Setting Verification
Setting Verification After complete the wiring and parameter setting, we should verify if the setting is correct. This chapter will introduce how to use a single computer to test if the converter behaves well. The operating system can be Windows 95, 98, ME, XP, 2000, Vista, 7. The “Hyper Terminal”... -
Page 34: Hyper Terminal For Tcp/Ip Winsock
Hyper Terminal for TCP/IP WinSock Initiate a Hyper Terminal from the Start Menu in Windows (see Figure 6.1), give a terminal name, choose an icon, and press “OK” button (see Figure 6.2). (Figure 6.1) - Page 35 (Figure 6.2) Select “TCP/IP (Winsock)” option at the “Connect using:” field (see Figure 6.3).
- Page 36 (Figure 6.3) After “OK” button is pressed, Figure 6.4 appears. Enter the converter’s IP address (e.g. 192.168.123.10) at the “Host address:” field, and the Socket port number set for the Serial Port 1 at the “Port number:” field (e.g 4660). (The Socket type of the Serial Port 1 should be “TCP Server”.)
- Page 37 (Figure 6.4) After “OK” button is pressed, Figure 6.5 appears. If the Hyper Terminal connects with the converter successfully, the time clock at the left lower corner “Connected hh:mm:ss” will start counting.
- Page 38 (Figure 6.5)
-
Page 39: Hyper Terminal For Com Port
Hyper Terminal for COM Port Initiate another Hyper Terminal as a COM Port Terminal (in Figure 6.3, select COM 1 or other COM port instead of “TCP/IP (Winsock)”). Set the COM port Properties to be the same as those set for the Serial Port 1 of the converter. (Figure 6.3) -
Page 40: Data Transmission
Data Transmission When all steps described above are finished, type any texts on the COM Port Terminal and check if the texts are also displayed on the TCP/IP Winsock Terminal. Alternatively, check if the characters typed on the TCP/IP Winsock Terminal are also displayed on the COM Port Terminal. -
Page 41: Appendix A - Faq
Q. Why can’t the EXBrowser.exe detect the converter on the network? A. Please check □ □ □ if the power is properly plugged to the converter. □ □ if the network cable is properly connected between the converter and the Hub. □... -
Page 42: Appendix B - Pin Outs And Cable Wiring
□ □ □ RS-232 Pin Assignment □ The pin assignment scheme for a is given below. Terminal Block (7pin-RS-232/422/485)*1 PIN 1 : GND PIN 2 : RXD PIN 3 : TXD □ □ RS-232 Wiring Diagram □ EX-9132C-2RS485 Serial Device... -
Page 43: Rs-232 Wiring Diagram
1 2 3 4 PIN 1 : R- PIN 2 : R+ PIN 3 : T- PIN 4 : T+ □ □ RS-422 Wiring Diagram □ EX-9132C-2RS485 Serial Device 3 T- 4 T+ 1 R- 2 R+ □ □ RS-485 Wiring Diagram □...
