Exbrowser "Modify Ip - Expert EX9132C-2-MTCP Operation Manual

Note: Always run the "Refresh" after any data change.

File -> Exit Alt+F4
Exit from the program

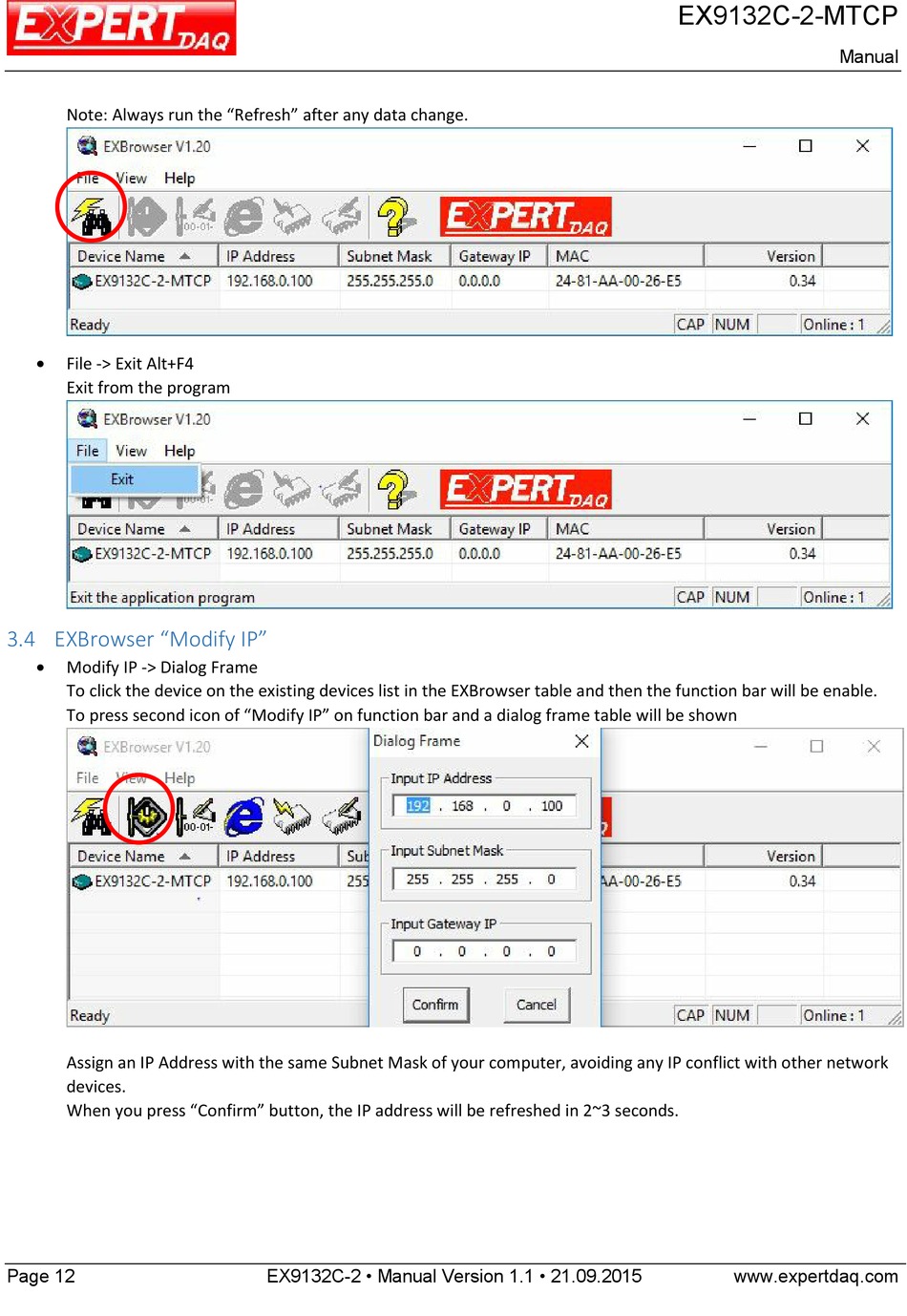

3.4 EXBrowser "Modify IP"


Modify IP -> Dialog Frame
To click the device on the existing devices list in the EXBrowser table and then the function bar will be enable.
To press second icon of "Modify IP" on function bar and a dialog frame table will be shown
Assign an IP Address with the same Subnet Mask of your computer, avoiding any IP conflict with other network
devices.
When you press "Confirm" button, the IP address will be refreshed in 2~3 seconds.
Page 12 EX9132C-2 • Manual Version 1.1 • 21.09.2015
EX9132C-2-MTCP
Manual
www.expertdaq.com
