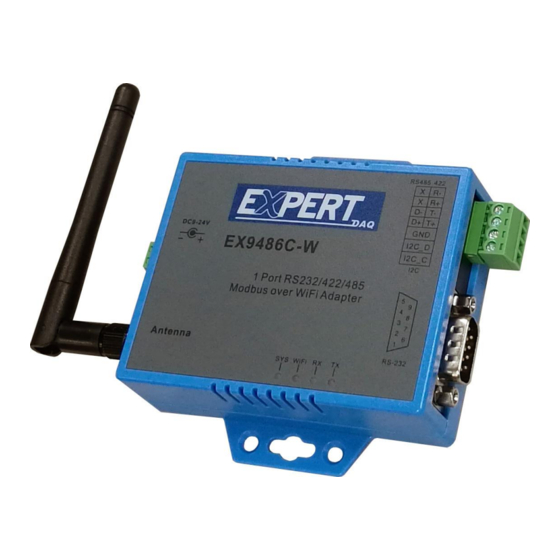

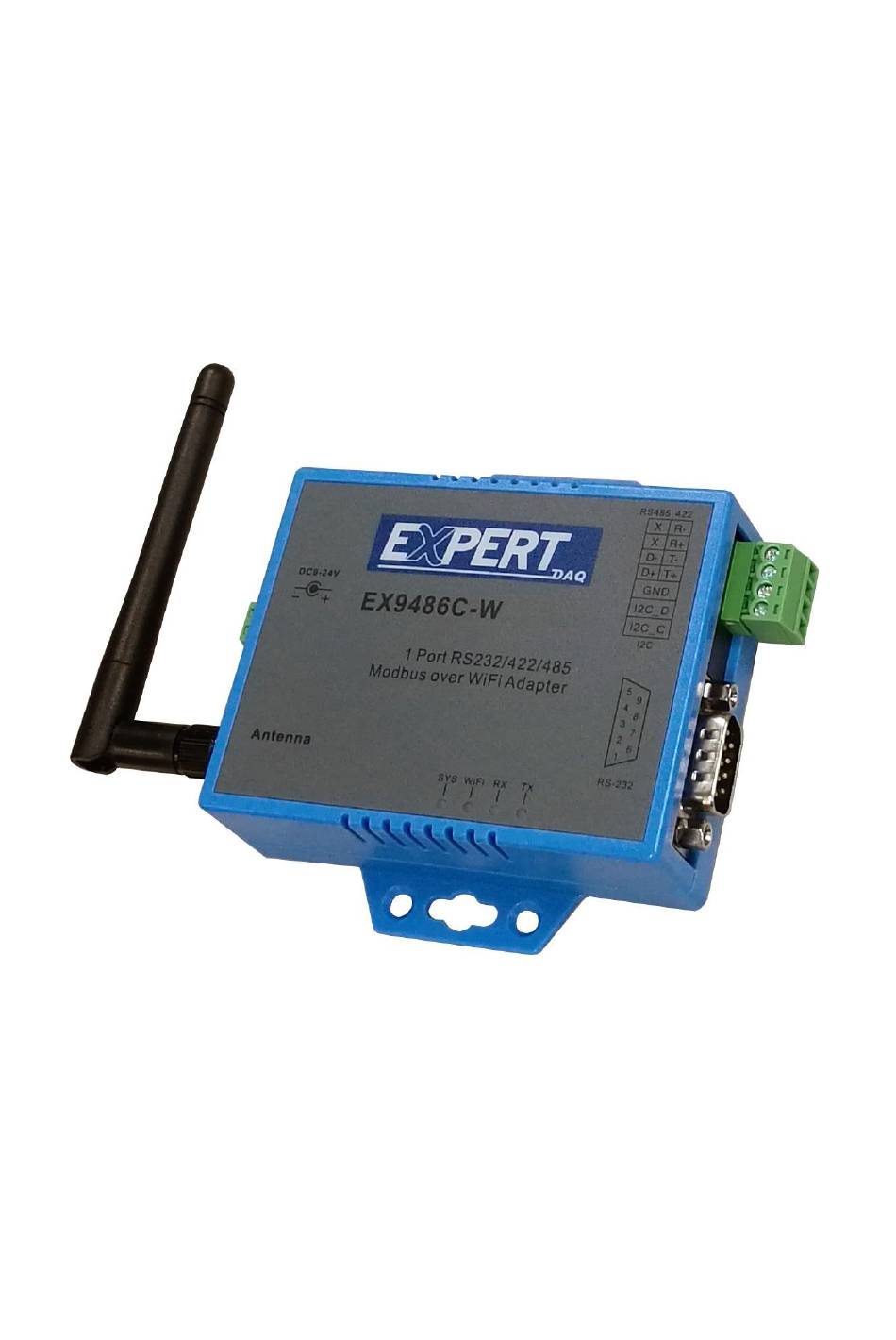

- Page 1 Operation Manual of EX9486C-W Serial to Wi-Fi converter Version 1.0 03th Jun 2017...
-
Page 2: Package Checklist
□ 1 unit of dipole antenna(2.0dBi) □ 1 unit CD(Operation Manual & Utility) □ Din Rail Mounting Kit & Power Adaptor :Optional NOTE: Notify your sales representative if any of the above items is missing or damaged. Page 2 EX9486C-W • Manual Version 1.1 www.topsccc.com.tw... -
Page 3: Product Features
Built-in Security Control It is protected by both setup password and access password to prevent intruders. Remote updated Firmware can be reprogrammed directly via Ethernet network to keep up with latest network standards. Page 3 EX9486C-W • Manual Version 1.1 www.topsccc.com.tw... -
Page 4: Product Specifications
Power Supply if you select the Terminal Block Reset button Environmental Operating Temperature : -10 to 65°C , 10 to 95% RH Storage Temperature : -20 to 70°C (-4 to 185°F), 5 to 95%RH Regulatory Approvals RoHS FCC, CE Page 4 EX9486C-W • Manual Version 1.1 www.topsccc.com.tw... -
Page 5: Wiring Architecture
You can use the Utility Setup CD to setup the IP Address. To proceed the advanced parameter setup, please use a web browser (IE or Netscape) to continue the detailed settings. Page 5 EX9486C-W • Manual Version 1.1 www.topsccc.com.tw... - Page 6 EX9486C-W Wi-Fi Converter Configuration Installation of IP Search Tool 1. Please copy EX9486C-W.exe to your PC. You can find the file in the CD ROM. 2. Double click EX9486C-W.exe. The program will be extracted and installed in PC. 3. After successful installation, the shortcut of WiFi-Module Utility.exe will be on the desktop Connection and Configuration Please prepare a PC/NB with Wireless adapter, a Wireless Access Point and EX9486C-W.
- Page 7 EX9486C-W Manual 1-3. Key in Soft AP password. Default is 12345678 1-4. Connecting to EX9486C-W Gateway Page 7 EX9486C-W • Manual Version 1.1 www.topsccc.com.tw...
- Page 8 EX9486C-W Manual Now you have successfully connect to EX9486C-W Page 8 EX9486C-W • Manual Version 1.1 www.topsccc.com.tw...
- Page 9 2. Searching & Configuring EX9486C-W Gateway 2-1. IP Searching 2-1-1. Double Click on to execute IP search tool 2-1-2. Click on “IP Search” or “Broadcast”. WiFi-Module Utility will start to scan the network. 2-1-3. Device found Page 9 EX9486C-W • Manual Version 1.1 www.topsccc.com.tw...
- Page 10 2-1-4. Single click on device IP address. Then click “Goto” to open browser. 2-1-5. Login page is shown. Please input ID and Password. (default ID: admin; password: admin). Now you have successfully searched the device • Manual Version 1.1 Page 10 EX9486C-W www.topsccc.com.tw...
- Page 11 EX9486C-W Manual 2-2. Configuring 2-2-1. Serial Over Wi-Fi Index Page 2-2-2. System Setup Page 2-2-2-1. System Where you can change Password and set up reset time period. • Manual Version 1.1 Page 11 EX9486C-W www.topsccc.com.tw...
- Page 12 Setup Serial device parameters - Baud Rate, Parity, Data Bits and Stop Bits. Then click “ Save” to save the Settings. 2-2-3. Network Setup Page There is Network Type configuration WiFi Configuration • Manual Version 1.1 Page 12 EX9486C-W www.topsccc.com.tw...
- Page 13 PC /NB /Smart Phone/ PAD. Support DHCP server function. Soft AP broadcasts its SSID “AJ_XX_XX_XX_XX_XX_XX”. PC /NB /Smart Phone is requested to connect to this SSID for device setup. B. “Infrastructure” mode –Choose this mode for connecting to other Access Point. • Manual Version 1.1 Page 13 EX9486C-W www.topsccc.com.tw...
- Page 14 EX9486C-W Manual 2-2-3-2. SSID Scan Click “Scan” for existing Access Point site survey. Choose a suitable SSID, Authentication and Encryption. Then key in password for AP • Manual Version 1.1 Page 14 EX9486C-W www.topsccc.com.tw...
- Page 15 Configure IP Address Mode – Suggest choosing “DHCP” – Let AP to assign IP address to Modbus Gateway. You can also choose “Fixed Address” to input fixed IP address, Subnet Mask, Gateway address. Fixed Address parameters setting Now, Network Setup is successfully configured. • Manual Version 1.1 Page 15 EX9486C-W www.topsccc.com.tw...
- Page 16 EX9486C-W Manual Please click “Save” to keep the settings in memory. DHCP Mode 2-2-4. Mode Setup There are 3 modes for selection, TCP server / TCP client / UDP • Manual Version 1.1 Page 16 EX9486C-W www.topsccc.com.tw...
- Page 17 The port number is depend on your requirement. (Exp. Open socket port as 100) 2-2-4-2. TCP Client (TCP protocol, active open, connect to the TCP server) Destination address & port: would be connected in TCP Client mode for a certain serial port. • Manual Version 1.1 Page 17 EX9486C-W www.topsccc.com.tw...
- Page 18 Please click “Save” to keep the settings in memory. 2-2-5. Click “ Home”. Go to home page. Then click “Reboot” to re-start Modbus Gateway. Click yes to reboot system 2-2-6. After device reboot, the original wireless connection will be disconnect. • Manual Version 1.1 Page 18 EX9486C-W www.topsccc.com.tw...
- Page 19 EX9486C-W Manual 2-3. Reconnect to EX9486C-W 2-3-1. Search the selected AP which EX9486C-W connect with 2-3-2. Key in password 2-3-3. Execute WiFi-Module Utility to search device • Manual Version 1.1 Page 19 EX9486C-W www.topsccc.com.tw...
- Page 20 EX9486C-W Manual 2-3-4. Single click device IP address then click “Goto” Device login page will be shown You have successfully re-connected to EX9486C-W • Manual Version 1.1 Page 20 EX9486C-W www.topsccc.com.tw...
- Page 21 2. Key in a name for connection (ex. test) and then press OK 3. You will see following page. Choose TCP/IP, then press OK 4. Key in the Converter IP address and Socket port and then press OK • Manual Version 1.1 Page 21 EX9486C-W www.topsccc.com.tw...
- Page 22 Please short DB9 NO. 2 pin and NO.3 pin circuit, (in green Terminal Block - T+ connect to R+, T- connect to R- or TX connect to RX.) 5-2. Key in characters. the converter will echo back of the characters and shown on the screen • Manual Version 1.1 Page 22 EX9486C-W www.topsccc.com.tw...
- Page 23 EX9486C-W Manual Congratulation. You had successfully set up the converter and start to use it • Manual Version 1.1 Page 23 EX9486C-W www.topsccc.com.tw...
- Page 24 PIN 3 : D- PIN 4 : D+ □ RS-422 Wiring Diagram Serial Device EX9486C-W Converter 3 T- 4 T+ 1 R- 2 R+ □ RS-485 Wiring Diagram Serial Device EX9486C-W Converter 1 D- • Manual Version 1.1 Page 24 EX9486C-W www.topsccc.com.tw...
