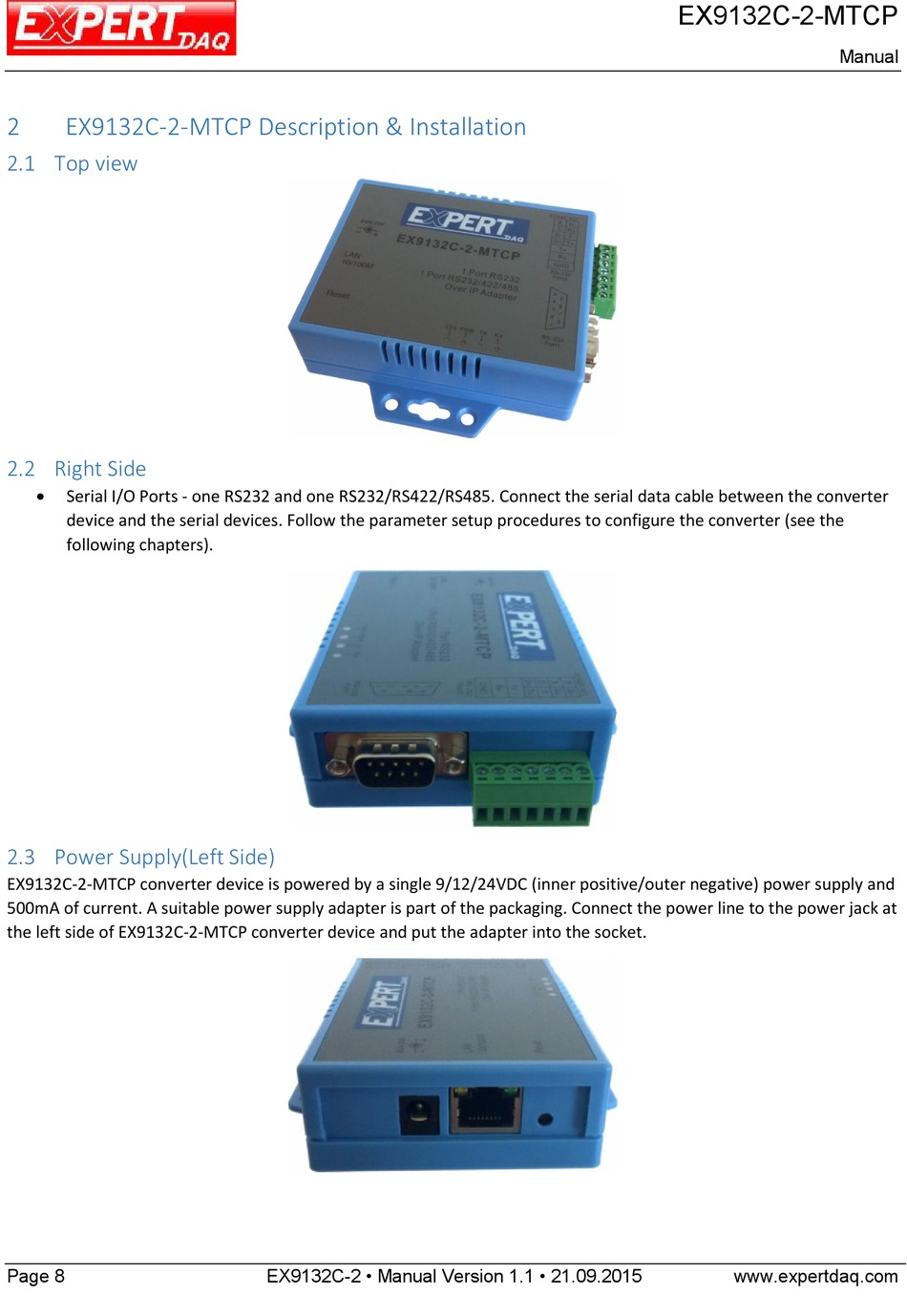

EX9132C-2-MTCP Description & Installation
2.1 Top view
2.2 Right Side
Serial I/O Ports - one RS232 and one RS232/RS422/RS485. Connect the serial data cable between the converter
device and the serial devices. Follow the parameter setup procedures to configure the converter (see the
following chapters).
2.3 Power Supply(Left Side)
EX9132C-2-MTCP converter device is powered by a single 9/12/24VDC (inner positive/outer negative) power supply and
500mA of current. A suitable power supply adapter is part of the packaging. Connect the power line to the power jack at
the left side of EX9132C-2-MTCP converter device and put the adapter into the socket.
Page 8
EX9132C-2 • Manual Version 1.1 • 21.09.2015
