Quick Start Guide
- When the vector has finished downloading, hit the play
board.
- The output from J5 (IOUT1P)or J9 (IOUT2P) should be a 500MHz tone as shown below:
- As the DAC sample rate is increased above 350MSPS , the setup, hold and input timing delays will need to be used to get
the proper timing on the data inputs. The spectrum will be bad prior to adjusting these delays as discussed in the data
sheet with sample rates above 350MSPS .
2010
© Analog Devices, Inc. All rights reserved. Trademarks and
registered trademarks are the property of their respective owners.

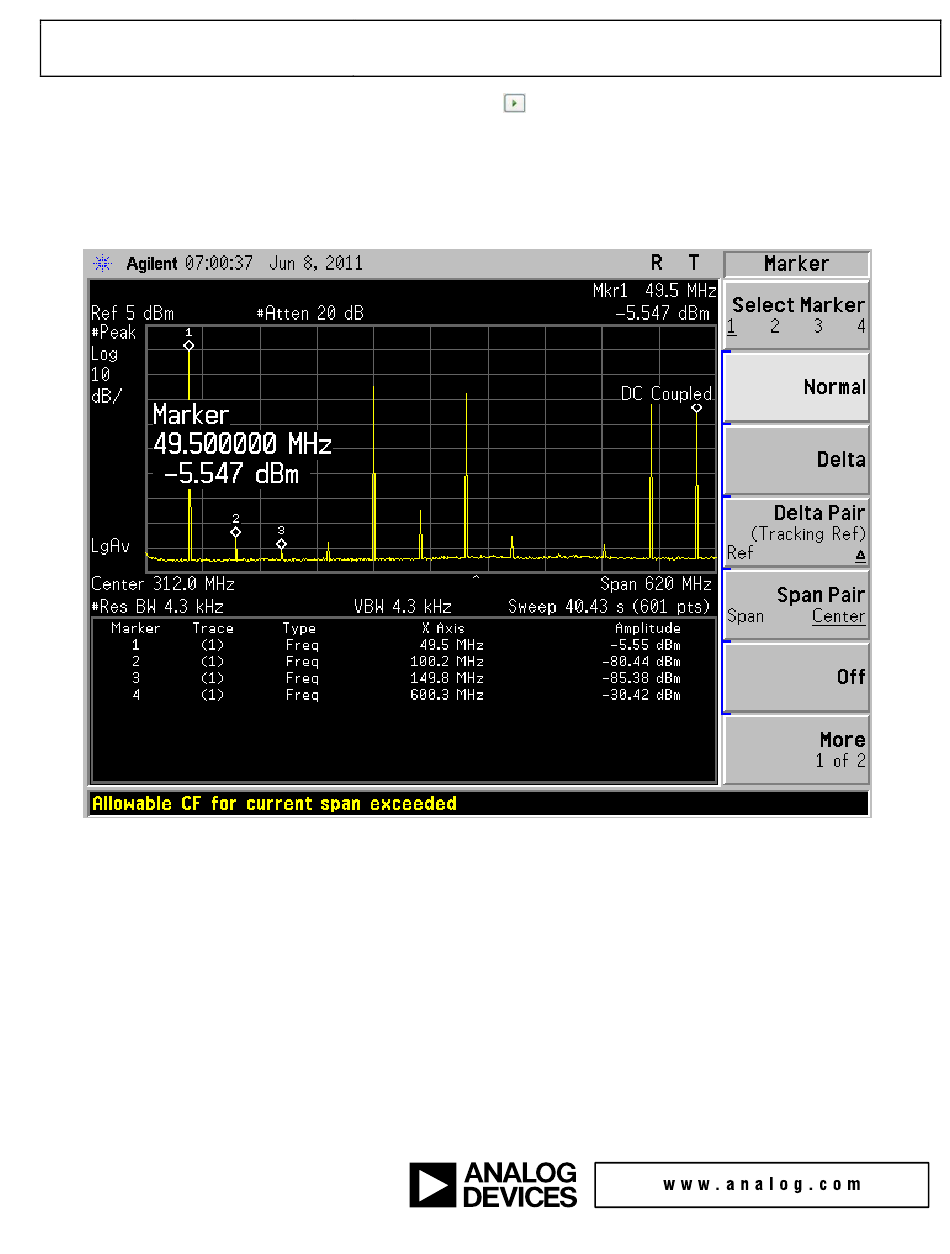

Figure 7 Iout1P Output Signal Screenshot
D00000-0-1/07(A)
AD9783/81/80-DPG2-EBZ
button. This starts the DPG2 transmitting data to the eval
