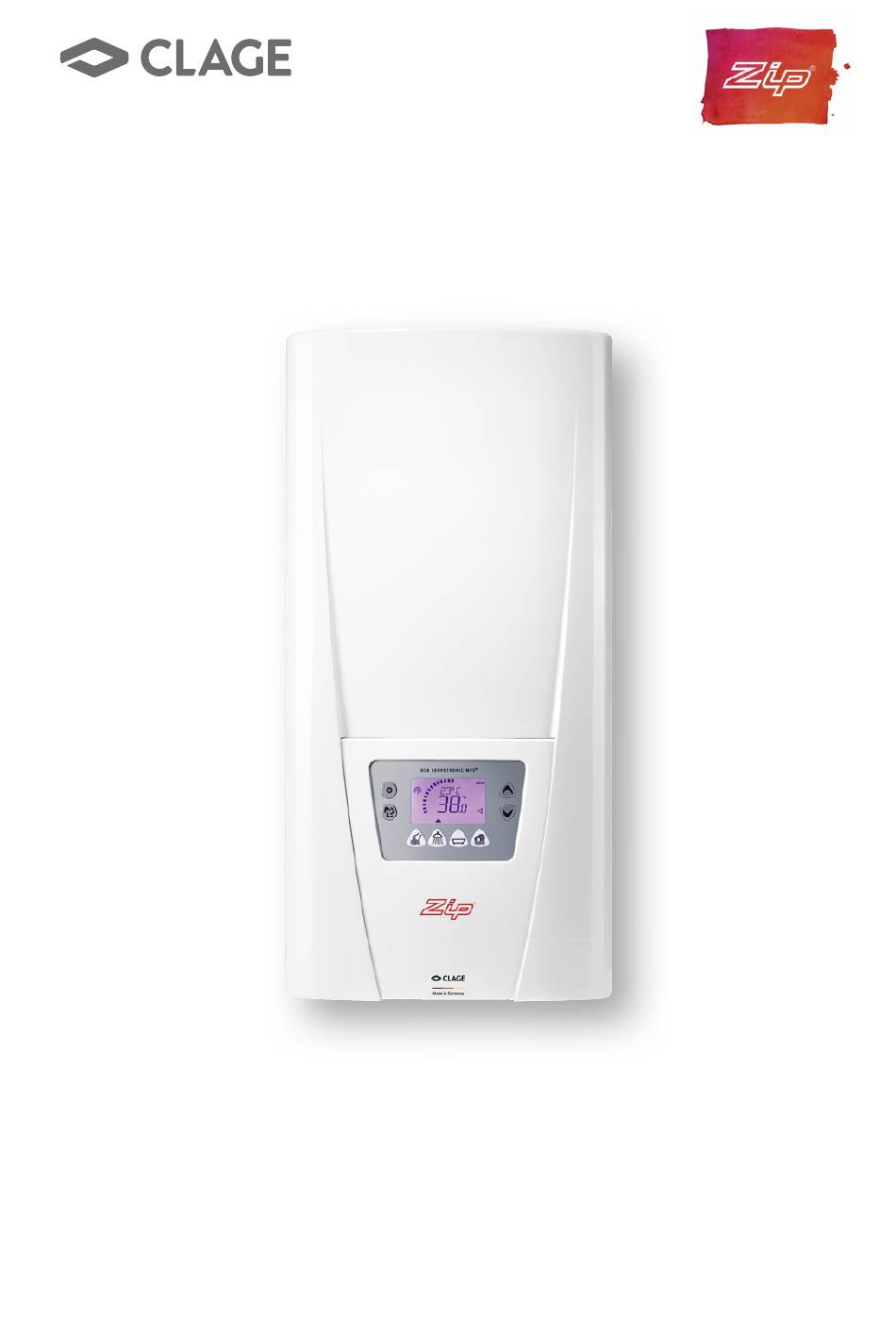

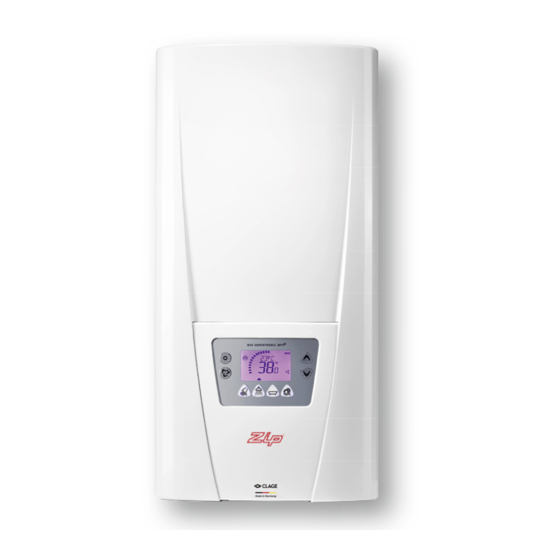

- Page 1 Instantaneous Hot Water Electronically controlled instantaneous water heater DSX: 27940 - 50 °C and 27941 - 60 °C models Instructions for the user For 50 ºC models, the appliance delivers water not exceeding 50 ºC in accordance with AS3498...
-
Page 2: Table Of Contents
Contents 1. Safety instructions ....................3 2. -
Page 3: Safety Instructions
1. Safety instructions Please read these instructions carefully before installing or using the appliance! Keep the instructions handy with the appliance for future use! Installation, initial operation and maintenance of this appliance must only be con- ducted by an authorised professional, who will then be responsible for adherence to applicable standards and installation regulations. -
Page 4: Overview
2. Overview When ordering spare parts, please always specify the appliance model and serial number. Pos. Part.-No. Description Pos. Part.-No. Description Control panel support 99381 Hot water connection Outlet pipe Connecting terminal Safety thermal cut-out (STB) 99387 DSX control panel 99382 DSX / DEX thermal sensor set 2.1 Inlet pipe... -
Page 5: Technical Data
3. Technical data Model Part no. 27940 - 50 °C model 27941 - 60 °C model Energy efficiency class Rated capacity / rated current 18 kW..27 kW (26 A..39 A) 18 kW 21 kW 24 kW 27 kW 18 kW 21 kW 24 kW 27 kW... -
Page 6: Dimensions
4. Dimensions Dimensions in mm... -
Page 7: Description Of The Appliance
5. Description of the appliance The instantaneous water heater DSX is a electronically controlled, pressure-resistant water heater for a decentralised water supply to one or more tap connections. Its electronic control regulates the power consumption depending on the selected outlet temperature, the respective inlet tempera- ture and the flow rate, thus reaching the set temperature exactly to the degree and keeping it constant in case of pressure fluctua- tions. -
Page 8: Operation
6. Operation As soon as you open the hot water tap, the instantaneous water heater switches on auto ma ti cally. When the tap is closed, the appliance automatically switches off. Temperature setting Set temperature You can set the required temperature gradually to a lower or higher value with the arrow keys . -
Page 9: Info Menu
6. Operation Info menu Info menu The Info menu offers a variety of display values, that provide information on vari- ous parameters. Press the info key for at least 3 seconds to call up the Info menu, the display con- Press firms by “Info”. -
Page 10: Setup Menu
6. Operation Note: Values of the Info menu cannot be modified or entered. Above mentioned values are Setup menu only given for your information! Note: The values are for information only and are not suitable for billing purposes. Press Setup menu ≥... - Page 11 6. Operation Setup menu With info key you will get back to the standard display. Note: The arrow key resets the display to zero when mode “s” is chosen. The arrow key deactivates the display of the clock. Press ≥ 3 sec Load decrease Setting of load shedding parameters Setting options:...
-
Page 12: Energy Efficiency Monitor
POWER Individual parameter as follows: CLAGE (or Clock, if enabled) FLOW This is the normal display mode without an activated Energy and Status Monitor. If the clock was enabled in the Setup menu, it is only shown in normal display mode. -
Page 13: Operation
6. Operation Temperature limitation Temperature limit on This instantaneous water heater is equipped with an optional temperature limiting function. This scalding protection is deactivated in the works setting. Press Switch on: ≥ 3 sec Select the limit tem per ature with arrow keys , then press info key arrow key simultaneously for at least 3 sec. -
Page 14: Maintenance Work
7. Maintenance work N.B. Maintenance work must only be carried out by a qualified tradesperson familiar with instantaneous water heaters. Venting after maintenance work This instantaneous water heater features an automatic air bubble protection to pre- vent it from inadvertently running dry. Nevertheless, the appliance must be vented before using it for the first time. -
Page 15: Troubleshooting And Service
8. Troubleshooting and service This instantaneous water heater was manufactured conscientiously and checked sev- eral times before delivery. First attempt to switch the house fuses off and on again in order to reset the electronics. Next, try to remedy the problem with reference to the following table. - Page 16 Head Office As Zip’s policy is one of continuous product improvement, changes to Zip Water (Aust) Pty. Ltd specifications may be made without ABN: 46 000 578 727 prior notice. Images in this booklet 67-77 Allingham Street have been modified and may not be Condell Park NSW 2200 true representations of the finished Postal: Locked Bag 80...
