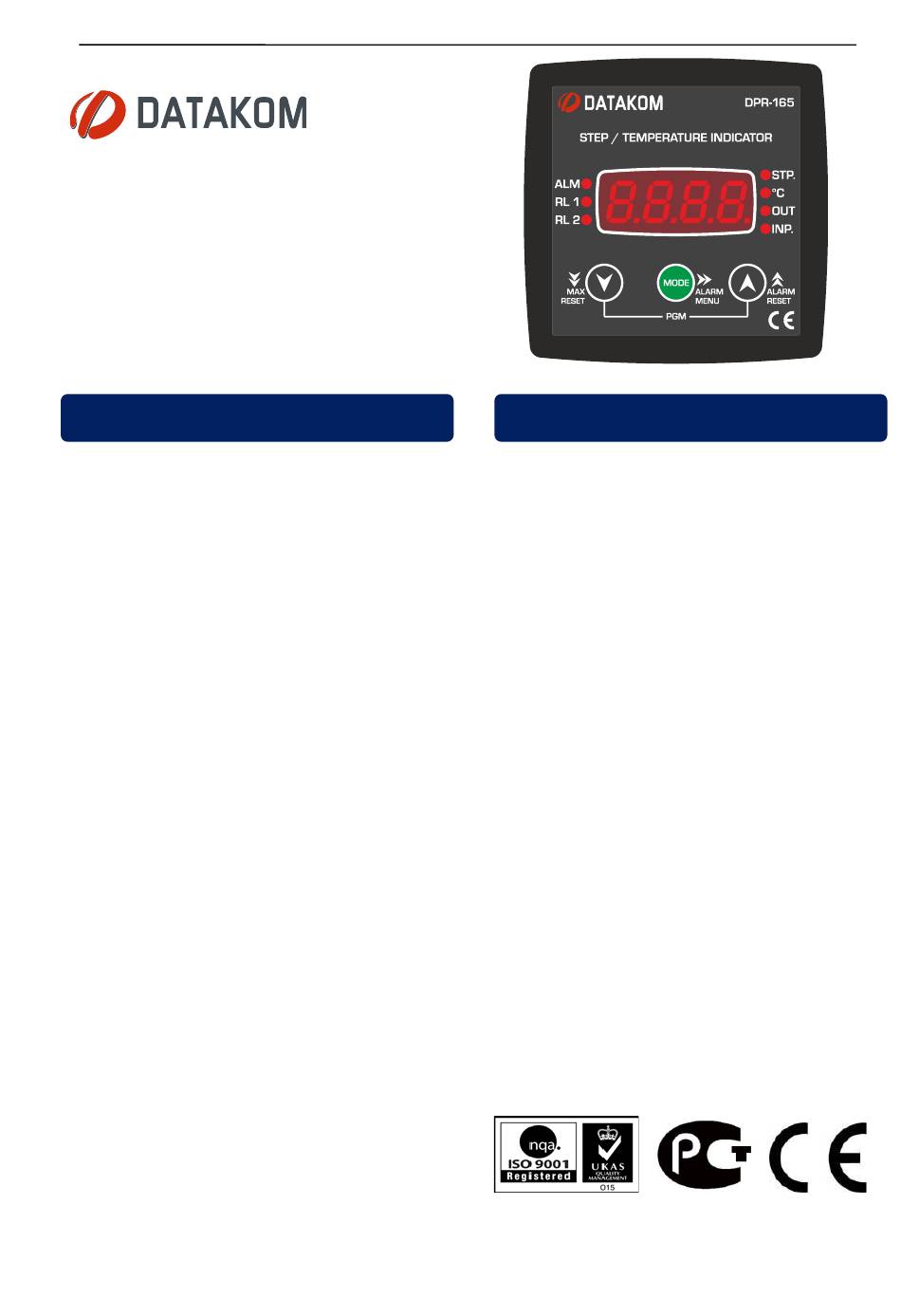

DPR-165 User Manual
DPR-165
TRANSFORMER STEP &
TEMPERATURE
INDICATOR
DESCRIPTION
DPR-165 is a microprocessor controlled precision
instrument displaying steps and temperatures of
MV/HV transformers. The unit has a high degree
of protection against electromagnetic noises.
The unit determines the step by measuring the
resistive converter of the transformer.
The step information is displayed on the screen.
Additionally it is output through the 4-20mA
analog output. This information may be fed to
automation systems or to the next DPR-165 unit.
It can also display the step information from the
analog value coming from another DPR-165 unit.
With analog inputs and outputs, an unlimited
number of DPR-165 units may be cascaded.
The unit offers one PT100 type temperature
sensor input. This input may be used for the
transformer or ambient temperature. The alarm
level of the temperature input is adjustable and
the alarm information is output as a relay contact.
The unit offers an adjustable cable length
compensation function in order to have precise
measurements with long cables.
The unit offers 2 volt-free relay contacts rated 6A.
Any function may be assigned to these outputs,
selected from list.
Alarm levels are adjusted within the programming
mode of the unit. If no action is taken, the unit will
terminate the programming mode in 1 minute.
The standard isolated RS-485 Modbus RTU port
of the unit is free from ground potential
differences and allows safe transfer of information
to automation and monitoring systems.
The supply inputs of the unit is isolated from
measurement inputs. It operates between 88-
400VDC and 85-270VAC.
Up to 50 steps
Installation without energy interruption
Accurate step measurement input, 10 bit
16 bit analog output accuracy
10 bit analog input accuracy
PT100 temperature input, 1°C accuracy
Cable length compensation
Automatic sensor failure detection
2 relay outputs, 6A/250Vac
Fully isolated RS-485 serial port
MODBUS-RTU communications
Logging of maximum temperature
Front panel adjustable parameters
Temperature alarm threshold level
Easy to read, 4 digits 14mm led display
Minimum 20 years data retension
Wide supply range: 88-400 VDC (85-270VAC)
Low panel depth, easy installation
Wide operating temp. range, -20...+70°C
Sealed front panel (IP65 with gasket)
Two part connection system
-1-
V-1.4
(01.07.2015)
FEATURES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DPR-165 and is the answer not in the manual?

Questions and answers

Summary of Contents for Datakom DPR-165

  • Page 1 Additionally it is output through the 4-20mA analog output. This information may be fed to Cable length compensation automation systems or to the next DPR-165 unit. Automatic sensor failure detection It can also display the step information from the analog value coming from another DPR-165 unit.
  • Page 2 DPR-165 User Manual V-1.4 (01.07.2015) SAFETY NOTICE WARNING Failure to follow below instructions may result in death or serious injury. • Electrical equipment should be installed only by qualified specialist. No responsibility is assumed by the manufacturer or any of its subsidiaries for any consequences resulting from the non-compliance to these instructions.
  • Page 3: Table Of Contents

    DPR-165 User Manual V-1.4 (01.07.2015) TABLE OF CONTENTS Section 1. INSTALLATION 1.1. FRONT / REAR PANELS 1.2. MECHANICAL INSTALLATION 1.3. ELECTRICAL INSTALLATION 1.4. INSTALLATION DIAGRAM PUSHBUTTON FUNCTIONS 3. DISPLAYS 3.1. DISPLAY NAVIGATION 4. ALARMS ALARM MENU 4.1. 5. PROGRAMMING 5.1.
  • Page 4: Installation

    DPR-165 User Manual V-1.4 (01.07.2015) 1. INSTALLATION Before installation: • Read the user manual carefully, determine the correct connection diagram. • Remove all connectors and mounting brackets from the unit, then pass the unit through the mounting opening. • Put mounting brackets and tighten. Do not tighten too much, this can brake the enclosure.
  • Page 5: Front / Rear Panels

    DPR-165 User Manual V-1.4 (01.07.2015) 1.1 FRONT / REAR PANELS 1.2 MECHANICAL INSTALLATION Panel Cutout Required Panel Depth...
  • Page 6: Electrical Installation

    DPR-165 User Manual V-1.4 (01.07.2015) 1.3 ELECTRICAL INSTALLATION Do not install the unit close to high electromagnetic noise emitting devices like contactors, high current busbars, switchmode power supplies and the like. Although the unit is protected against electromagnetic disturbance, excessive disturbance can affect the operation, measurement precision and data communication quality.
  • Page 7: Installation Diagram

    DPR-165 User Manual V-1.4 (01.07.2015) 1.4 INSTALLATION DIAGRAM...
  • Page 8: Pushbutton Functions

    DPR-165 User Manual V-1.4 (01.07.2015) 2. PUSHBUTTON FUNCTIONS Three buttons on the front panel provide access to configuration and measurement screens. BUTTON FUNCTION Selects modes of operation. HELD PRESSED FOR 5 SEC: Displays alarm menu. (if there is any alarm)
  • Page 9: Displays

    • STP: Displays the step by measuring the resistive converter of the transformer. • °C: Displays the PT100 temperature input with 1°C accuracy. • OUT: Displays the value of 0-20ma analog output. • INP.: Displays the value of 0-20ma input coming from another DPR-165 unit.
  • Page 10: Alarms

    DPR-165 User Manual V-1.4 (01.07.2015) 4. ALARMS The unit continuously monitors various alarm conditions during operation. Programmable alarm limits are provided for every measured value. If any fault condition occurs, the related alarm led turns on, alarm code is displayed and the alarm relay operates.
  • Page 11: Programming

    DPR-165 User Manual V-1.4 (01.07.2015) 5. PROGRAMMING 5.1 ENTERING THE PROGRAMMING MODE In order to offer the maximum flexibility to the customer, the module has several programmable parameters. Parameters are recorded in a non-volatile memory and are not affected by power failures.
  • Page 12: Lamp Test

    DPR-165 User Manual V-1.4 (01.07.2015) 5.2 LAMP TEST When exiting the PROGRAM mode, the unit makes a LAMP TEST during 5 seconds. During LAMP TEST, all leds will turn on. At the end of 5 seconds or if MODE button is depressed, the LAMP TEST is terminated.
  • Page 13: Program Parameter List

    DPR-165 User Manual V-1.4 (01.07.2015) Exiting the relay test display will cause the relay resume normal operation. 5.4 PROGRAM PARAMETER LIST DISPLAY DESCRIPTION STEP (TAP) PARAMETER Total number of steps STEP(TAP) LINEARITY It is the parameter that selects transformer step values change linearly or not.
  • Page 14 DPR-165 User Manual V-1.4 (01.07.2015) DISPLAY DESCRIPTION 0.10 9.99 PT100 CABLE SECTION PT100 cable section in mm The factory set value is 0.5mm PT100 CABLE LENGTH PT100 cable length in meters (m). The factory set value is 0m. TEMPERATURE ALARM PARAMETER It is the parameter to adjust temperature limit.
  • Page 15: Auto Setup And Transformer Step-Temperature Calibration

    DPR-165 User Manual V-1.4 (01.07.2015) DISPLAY DESCRIPTION 9999 SCAN MODE TIMER It is the delay timer to navigate between each display in Scan Mode. RELAY 1 Test Parameter It is the parameter to activate Relay 1 output. Relay 1 will turn on if value is set to 1 and it will turn off if value is set 0.
  • Page 16 DPR-165 User Manual V-1.4 (01.07.2015) BUTTON OPERATION DISPLAY The value on the screen is recorded with Mode button and the next parameter is displayed. Select tP2r parameter if there is any step with multiple resistive value. Hold Mode button for 5 seconds.
  • Page 17 DPR-165 User Manual V-1.4 (01.07.2015) MANUAL CALIBRATION OF EACH STEP When step mode is active, hold pressed Mode and up buttons together for 5 seconds to enable calibration process. Step led will flash and it will display “1” on the screen.
  • Page 18: Relay Functions

    DPR-165 User Manual V-1.4 (01.07.2015) 5.6 RELAY FUNCTIONS The unit has 2 relay outputs. The function of a programmable relay output may be selected from the below list. Value Relay Function PT100 Over Temperature PT100 Open Circuit POT 1 Open Circuit...
  • Page 19: Modbus Communications

    DPR-165 User Manual V-1.4 (01.07.2015) 6. MODBUS COMMUNICATION 6.1 DESCRIPTION The unit offers serial data communication port allowing it to be integrated in automation systems. The serial port is of RS-485 MODBUS-RTU standard. It is fully isolated from power supply and measurement terminals for failure-free operation under harsh industrial conditions.
  • Page 20: Program Parameters

    DPR-165 User Manual V-1.4 (01.07.2015) 6.2 PROGRAM PARAMETERS ADDRESS NAME DESCRIPTION LENGTH TYPE unsigned Step number Total number of steps 16 BIT word unsigned Linearity of steps Linearity of steps 16 BIT word unsigned Step short circuit Step short circuit...
  • Page 21: Commands

    DPR-165 User Manual V-1.4 (01.07.2015) 6.3 COMMANDS Commands should be sent with Function 6 (Write Single Register). ADDRESS Value DESCRIPTION 16384 Reset all alarms 16385 Reset maximum temperature 16386 Down button simulate 16387 Up button simulate 16388 Mode button simulate...
  • Page 22: Sensor Data

    DPR-165 User Manual V-1.4 (01.07.2015) 6.5 SENSOR DATA ADDRESS NAME DESCRIPTION LENGTH R/W TYPE Signed 20480 Temperature PT100 Temperature value 16 BIT word Max. PT100 Maximum Temperature unsigned 20481 16 BIT Temperature value word Step value measured from resistive unsigned...
  • Page 23: Technical Specifications

    Dimensions: 102x102x53mm (WxHxD) Panel Cut-out: 92x92mm Weight: 200 gr (approx) EUDirectives: Reference 2006/95/EC (LVD) Standards: 2004/108/EC (EMC) EN 61010 (safety) EN 61326 (EMC) DATAKOM Elektronik Ltd. Tel: +90-216-466 84 60 Fax: +90-216-364 65 65 e-mail: datakom@datakom.com.tr http: www.datakom.com.tr -23-...
