Datakom DKM-405 Manual

Network analyser with total harmonic distortion display
Hide thumbs
Table of Contents

Advertisement

Quick Links

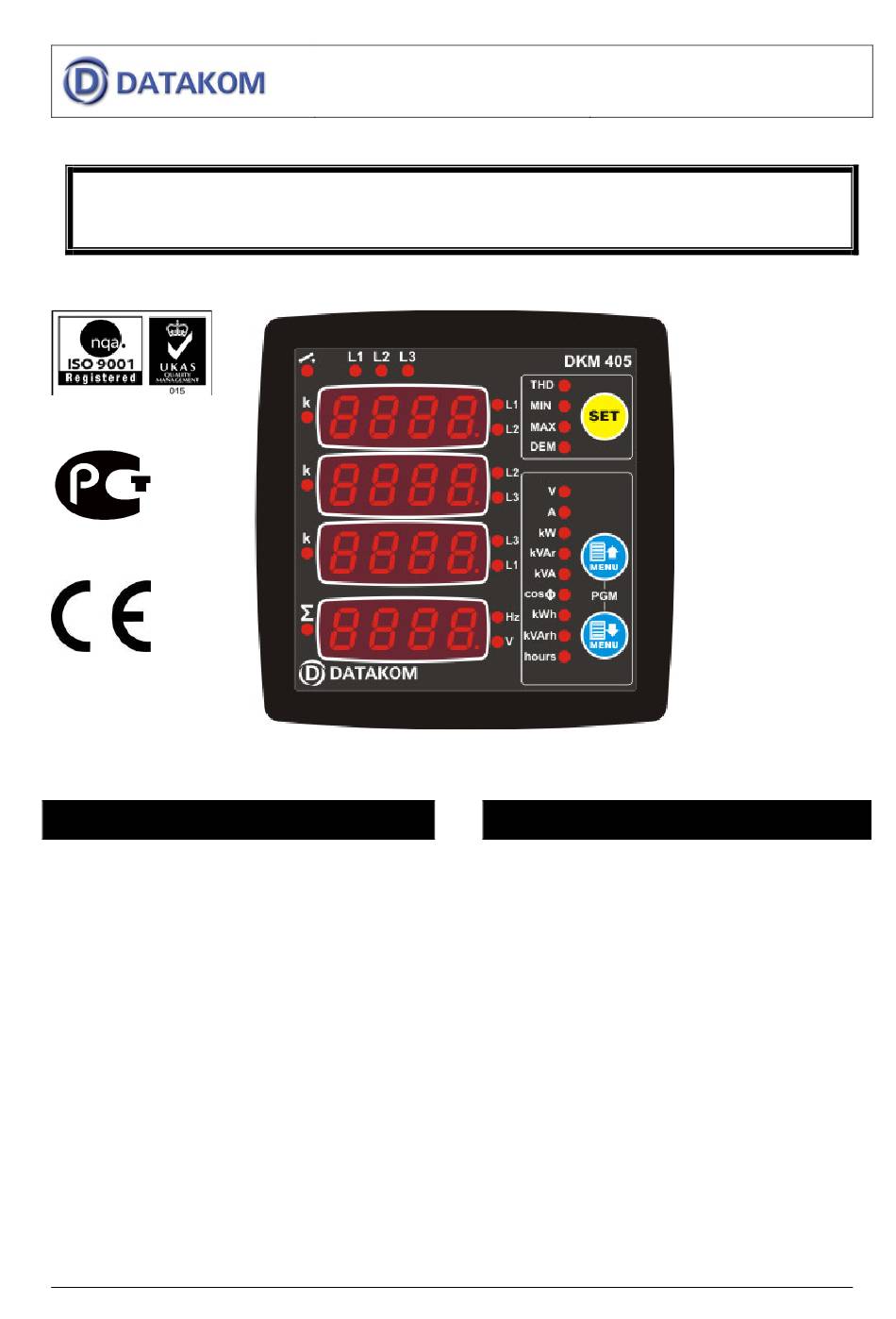

DKM-405 NETWORK ANALYSER
WITH TOTAL HARMONIC DISTORTION DISPLAY
INTRODUCTION
The DKM-405 is a low cost precision
instrument designed to display various AC
parameters in a 3-phase distribution panel.
The standard unit is designed for 230/400V
network. A different version is available for
120/208V systems.
The harmonic analysis is available for up to
31 harmonics. THD values of both voltage
and current inputs are available.
The optional digital input accepts both AC
and DC signals and has programmable
functions.
The optional relay output is programmable.
Relay function is selected through a list.
The unit fits into a standard 92x92mm panel
opening.
K30D01-EN
datakom@datakom.com.tr
http://www.datakom.com.tr
True RMS measurements
Total harmonic distortion display
Max demand display
Configurable relay output
Energy pulse output capability
Optically isolated, configurable digital input
Active-reactive power counters
Hour counter
Voltage transformer ratio for MV applications
Front panel programming
Reduced panel depth
Wide operating temperature range
Sealed front panel (IP54)
Plug-in connection system
- 1 -
Tel: +90-216 466 84 60
Fax: +90-216 364 65 65
FEATURES
Version 1.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DKM-405 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Datakom DKM-405

Summary of Contents for Datakom DKM-405

  • Page 1 Fax: +90-216 364 65 65 DKM-405 NETWORK ANALYSER WITH TOTAL HARMONIC DISTORTION DISPLAY INTRODUCTION FEATURES The DKM-405 is a low cost precision True RMS measurements instrument designed to display various AC Total harmonic distortion display parameters in a 3-phase distribution panel.
  • Page 2 SAFETY NOTICE Failure to follow below instructions will result in death or serious injury • Electrical equipment should be installed only by qualified specialist. No responsibility is assured by the manufacturer or any of its subsidiaries for any consequences resulting from the non-compliance to these instructions.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Section 1. INSTALLATION 1.1. FRONT / REAR PANELS 1.2. MECHANICAL INSTALLATIO 1.3. ELECTRICAL INSTALLATION 1.4. CONNECTION DIAGRAM 2. PUSHBUTTON FUNCTIONS 3. DISPLAY NAVIGATION 4. DEVICE CONFIGURATION 4.1. INTRODUCTION 4.2. RESETTING DEMAND VALUES 4.3. RESETTING ENERGY COUNTERS 4.4. RESETTING THE HOUR COUNTER 4.5.

  • Page 4: Installation

    1. INSTALLATION Before installation: • Read the user manual carefully, determine the correct connection diagram. • Remove all connectors and mounting brackets from the unit, then pass the unit through the mounting opening. • Put mounting brackets and tighten. Do not tighten too much, this can brake the enclosure.

  • Page 5: Front / Rear Panels

    1.1 FRONT / REAR PANELS 1.2 MECHANICAL INSTALLATION Panel Cutout Required Panel Depth K30D01-EN - 5 - Version 1.5...

  • Page 6: Electrical Installation

    1.3 ELECTRICAL INSTALLATION Do not install the unit close to high electromagnetic noise emitting devices like contactors, high current busbars, switchmode power supplies and the like. Although the unit is protected against electromagnetic disturbance, excessive disturbance can affect the operation, measurement precision and data communication quality. •...

  • Page 7: Connection Diagram

    1.4 CONNECTION DIAGRAM K30D01-EN - 7 - Version 1.5...

  • Page 8: Pushbutton Functions

    2. PUSHBUTTON FUNCTIONS Three buttons on the front panel provide access to configuration and measurement screens. BUTTON FUNCTION Selects display context • THD display • Minimum values display • Maximum values display • Demand display • If all leds are off then actual measurements display.

  • Page 9: Display Navigation

    3. DISPLAY NAVIGATION button will select the display context and buttons will navigate between possible values of this context. Phase indication leds will reflect the phase displayed on the screen. Phase status leds will turn-on if the related phase voltage is above 70 volts. Relay led will turn-on when the relay output is active.

  • Page 10: Device Configuration

    4. DEVICE CONFIGURATION 4.1. INTRODUCTION In order to offer the maximum flexibility to the user, the unit has several configurable parameters. • Device Configuration • Input / Output Configuration Default display configuration Input Configuration Relay Configuration • Measurement Configurations Resetting Demand Values •...

  • Page 11: Resetting Demand Values

    4.2. RESETTING DEMAND VALUES Parameter value: 0: No action 1: Reset Demand values dEnd Setting this parameter to 1 will reset demand values. The parameter value is not stored into memory and reads always 0. MENU MENU 4.3. RESETTING ENERGY COUNTERS Parameter value: 0: No action 1: Reset kWh and kVArh counters...

  • Page 12: Resetting The Hour Counter

    4.4. RESETTING THE HOUR COUNTER Parameter value: 0: No action 1: Reset hour counter hovr Setting this parameter to 1 will reset the hour counter. The parameter value is not stored into memory and reads always 0. MENU MENU 4.5. RESETTING ALARMS Parameter value: 0: No action 1: Reset alarms...

  • Page 13: Setting The Default Screen

    4.6. SETTING THE DEFAULT SCREEN This parameter selects the default screen that the unit returns 5 minutes after any key is pressed. disp Setting this parameter to 0 will cancel the default screen. Param. Upper Lower display value displays no change no change MENU Voltages L-N Frequency...

  • Page 14: Setting The Current Transformer Ratio

    4.7. SETTING THE CURRENT TRANSFORMER RATIO This parameter sets the primary rating of current transformers. Current transformer secondary rating cvrr should be 1 Amps. The factory set default value is 500/5A. Acceptable values are 5/5A to 5000/5A. MENU MENU 4.8. SETTING THE VOLTAGE TRANSFORMER RATIO This parameter sets the ratio of voltage transformers.

  • Page 15: Setting High And Low Voltage Limits

    4.9. SETTING HIGH AND LOW VOLTAGE LIMITS This parameter sets the high limit for high voltage alarm. Only phase to neutral voltages are voLt monitored and generate alarms. If the parameter is set to 0 then no high higH voltage alarm will occur. The factory set default value is 0 Acceptable values are 0 to 12’000volts MENU...

  • Page 16: Setting High And Low Frequency Limits

    4.10. SETTING HIGH AND LOW FREQUENCY LIMITS This parameter sets the high limit for high frequency alarm. If the parameter is set to 0 then no high frequency alarm will occur. The factory set default value is 0 high Acceptable values are 0 to 400Hz. MENU MENU This parameter sets the low limit for low...

  • Page 17: Setting The Overcurrent Limit

    4.11. SETTING THE OVERCURRENT LIMIT This parameter sets the high limit for overcurrent alarm. Cvrr If the parameter is set to 0 then no overcurrent alarm will occur. The factory set default value is 0 high Acceptable values are 0 to 5000Amps. MENU MENU K30D01-EN...

  • Page 18: Setting High And Low Active Power Limits

    4.12. SETTING HIGH AND LOW ACTIVE POWER LIMITS This parameter sets the high limit for excess active power alarm. If the parameter is set to 0 then no excess active power alarm will occur. The factory set default value is 0 high Acceptable values are 0 to 6500kW.

  • Page 19: Setting High And Low Reactive Power Limits

    4.13. SETTING HIGH AND LOW REACTIVE POWER LIMITS This parameter sets the high limit for excess reactive power alarm. rAct If the parameter is set to 0 then no excess reactive power alarm will occur. The factory set default value is 0 high Acceptable values are 0 to 6500kVAr.

  • Page 20: Setting High And Low Power Factor Limits

    4.14. SETTING HIGH AND LOW POWER FACTOR LIMITS This parameter sets the high limit for high cosø alarm. If the parameter is set to 0.000 then no high cosø alarm will occur. The factory set default value is 0.000 high Acceptable values are 0.000 to 1.000 MENU 0000...

  • Page 21: Configuring The Digital Input

    4.15. CONFIGURING THE DIGITAL INPUT This parameter sets the active status of the digital input signal. inpt 0: input active when signal applied 1: input active when signal removed The input signal is 5 to 30V AC or DC typE applied between terminals 16 and 17 with the polarity shown in the connection diagram.
  • Page 22 This parameter sets the function of the digital input. inpt The factory set default value is 0. MENU MENU Value Function when signal active Function when signal passive kWh and kVArh counters increment no increment kWh and kVArh counters increment kWh and kVArh counters reset to zero kWh, kVArh, hour counters increment no increment...

  • Page 23: Configuring The Relay Output

    4.16. CONFIGURING THE RELAY OUTPUT The relay output is a combination of 4 different input functions. The combination logic is explained in the next picture. rELY Each of 4 available functions is selected from the below list. Unused functions FnC1 should be left as 0.

  • Page 24: Displaying The Firmware Version

    4.17. DISPLAYING THE FIRMWARE VERSION The device firmware version is displayed at the second line of the “End ” screen. The firmware version may be required by the manufacturer together with any customer application. MENU MENU K30D01-EN - 24 - Version 1.5...

  • Page 25: Calibration

    4.18. CALIBRATION The unit is factory calibrated before shipment. If recalibration is required, Please enter “3282” at the bottom display then press button. MENU 3282 MENU The calibration screen for L1 phase voltage will appear. Pressing buttons will increase/decrease the measured value. When the measured value is correct press button.

  • Page 26: Lamp Test

    4.19. LAMP TEST When all required parameters are programmed hold pressed together both 8888 buttons for 2 seconds. This will exit the configuration menu and 8888 perform a display test. Check that all displays and leds are turned 8888 MENU Press any button to exit LAMP TEST and return to normal operating mode.

  • Page 27: Technical Specifications

    10. TECHNICAL SPECIFICATIONS Power Supply Input: 170 - 275VAC, 50 - 60Hz nominal (± 10%) Different AC supply voltages available. Measurement Input Range: Voltage inputs: 10 - 300 V AC (L-N) 20 - 520 V AC (L-L) Current inputs: 0.2 – 5.5 A AC Frequency: 30 - 100 Hz Accuracy:...
