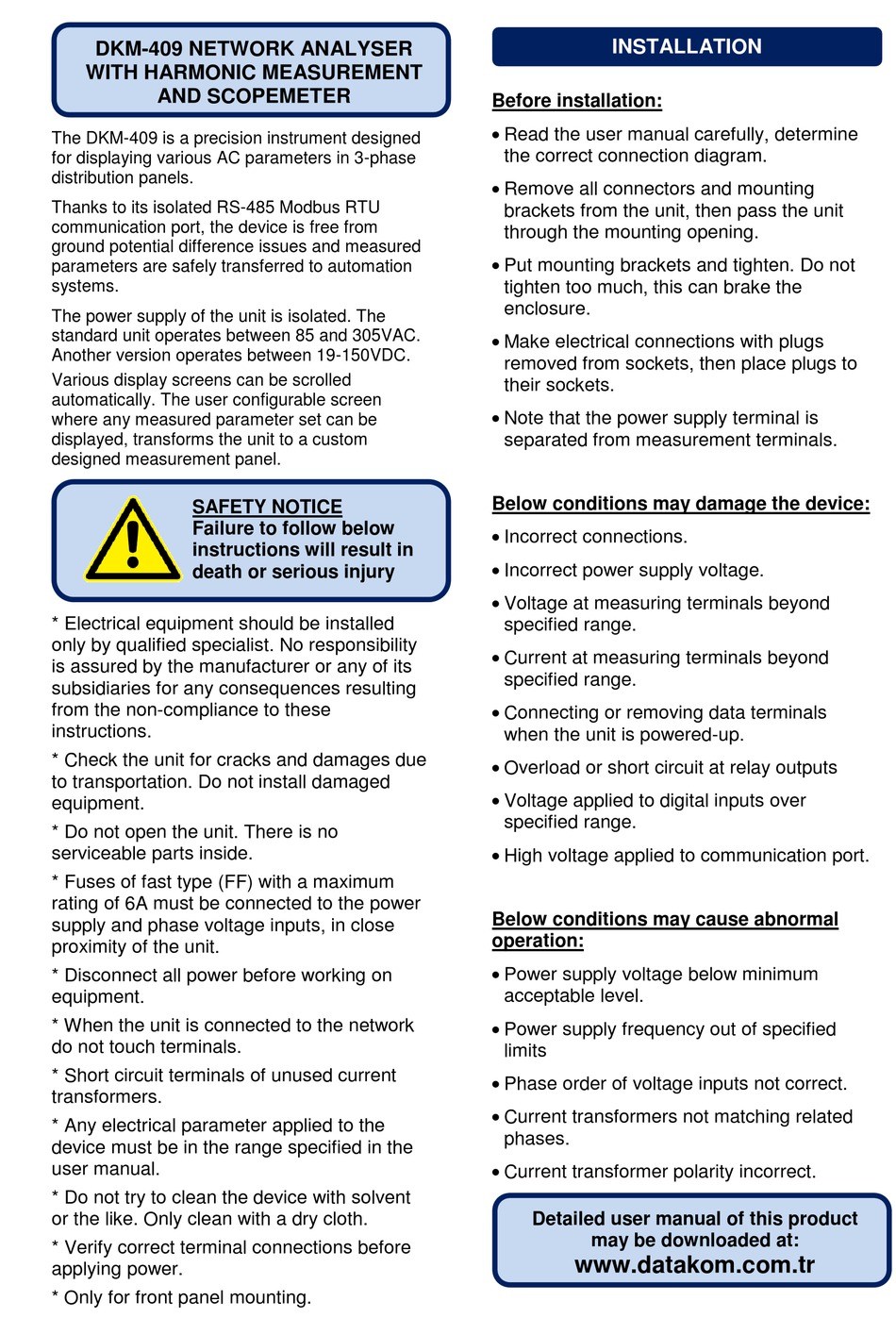

DKM-409 NETWORK ANALYSER
WITH HARMONIC MEASUREMENT
AND SCOPEMETER
The DKM-409 is a precision instrument designed
for displaying various AC parameters in 3-phase
distribution panels.
Thanks to its isolated RS-485 Modbus RTU
communication port, the device is free from
ground potential difference issues and measured
parameters are safely transferred to automation
systems.
The power supply of the unit is isolated. The
standard unit operates between 85 and 305VAC.
Another version operates between 19-150VDC.
Various display screens can be scrolled
automatically. The user configurable screen
where any measured parameter set can be
displayed, transforms the unit to a custom
designed measurement panel.
SAFETY NOTICE
Failure to follow below
instructions will result in
death or serious injury
* Electrical equipment should be installed
only by qualified specialist. No responsibility
is assured by the manufacturer or any of its
subsidiaries for any consequences resulting
from the non-compliance to these
instructions.
* Check the unit for cracks and damages due
to transportation. Do not install damaged
equipment.
* Do not open the unit. There is no
serviceable parts inside.
* Fuses of fast type (FF) with a maximum
rating of 6A must be connected to the power
supply and phase voltage inputs, in close
proximity of the unit.
* Disconnect all power before working on
equipment.
* When the unit is connected to the network
do not touch terminals.
* Short circuit terminals of unused current
transformers.
* Any electrical parameter applied to the
device must be in the range specified in the
user manual.
* Do not try to clean the device with solvent
or the like. Only clean with a dry cloth.
* Verify correct terminal connections before
applying power.
* Only for front panel mounting.
INSTALLATION
Before installation:
 Read the user manual carefully, determine
the correct connection diagram.
 Remove all connectors and mounting
brackets from the unit, then pass the unit
through the mounting opening.
 Put mounting brackets and tighten. Do not
tighten too much, this can brake the
enclosure.
 Make electrical connections with plugs
removed from sockets, then place plugs to
their sockets.
 Note that the power supply terminal is
separated from measurement terminals.
Below conditions may damage the device:
 Incorrect connections.
 Incorrect power supply voltage.
 Voltage at measuring terminals beyond
specified range.
 Current at measuring terminals beyond
specified range.
 Connecting or removing data terminals
when the unit is powered-up.
 Overload or short circuit at relay outputs
 Voltage applied to digital inputs over
specified range.
 High voltage applied to communication port.
Below conditions may cause abnormal
operation:
 Power supply voltage below minimum
acceptable level.
 Power supply frequency out of specified
limits
 Phase order of voltage inputs not correct.
 Current transformers not matching related
phases.
 Current transformer polarity incorrect.
Detailed user manual of this product
may be downloaded at:
www.datakom.com.tr

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DKM-409 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Datakom DKM-409

  • Page 1 WITH HARMONIC MEASUREMENT AND SCOPEMETER Before installation:  Read the user manual carefully, determine The DKM-409 is a precision instrument designed the correct connection diagram. for displaying various AC parameters in 3-phase distribution panels.  Remove all connectors and mounting...
  • Page 2: Panel Cutout

    ELECTRICAL INSTALLATION PANEL CUTOUT Do not install the unit close to high electromagnetic noise emitting devices like contactors, high current busbars, switchmode power supplies and the like. Although the unit is protected against electromagnetic disturbance, excessive disturbance can affect the operation, measurement precision and data communication quality.
  • Page 3 CONNECTION DIAGRAM FOR 230/400V NETWORK...
  • Page 4: Pushbutton Functions

    SETTING AUTO-SCROLL MODE PUSHBUTTON FUNCTIONS Three buttons on the front panel provide The unit offers the possibility of automatically access to configuration and measurement scanning of all display screens. screens. In order to enable auto-scroll function BUTTON FUNCTION hold the SET button Previous screen pressed for 3 seconds.
  • Page 5 ADJUSTING THE LCD CONTRAST DEVICE CONFIGURATION Select “LCD CONTRAST” “CONFIGURATION MENU”. Change the In order to enable the contrast value with MENU buttons until best configuration menu, visibility is obtained and then press SET to hold both MENU buttons pressed save new LCD contrast value and return for 3 seconds.
  • Page 6: Technical Specifications

    TECHNICAL SPECIFICATIONS Power Supply Input: EU Directives Conformity: 85-305VAC, 50 - 60Hz nominal (± 10%) 2014/35/EC (low voltage) Optional: 19-150VDC 2014/30/EC (EMC) Measurement Input Range: Voltage inputs: Norms of reference: 10 - 300 V AC (L-N) EN 61010 (safety requirements) 20 - 520 V AC (L-L) EN 61326 (EMC requirements) Current inputs: 0.2 –...
